3 Product Configurations
Issue 07 (2020-04-10)
Copyright © Huawei Technologies Co., Ltd.
22
System Capacity (kW)
144
288
432
576
720
Connecting copper bar (group)
/
1
2
3
4
Inter-cabinet signal cable (PCS)
/
2
3
4
5
Table 3-6 TP481200B-N20B1 or TP481200B-N20B2 typical configurations
System Capacity (kW)
72
144
216
288
360
Combined cabinet TP481200B-N20B1 or
TP481200B-N20B2 (PCS)
1
2
3
4
5
Connecting copper bar (group)
/
1
2
3
4
Inter-cabinet signal cable (PCS)
/
2
3
4
5
TP483000D AC cabinets and DC cabinets can be connected to TP482000B cabinets.
3.3 Typical Multi-cabinet Layout

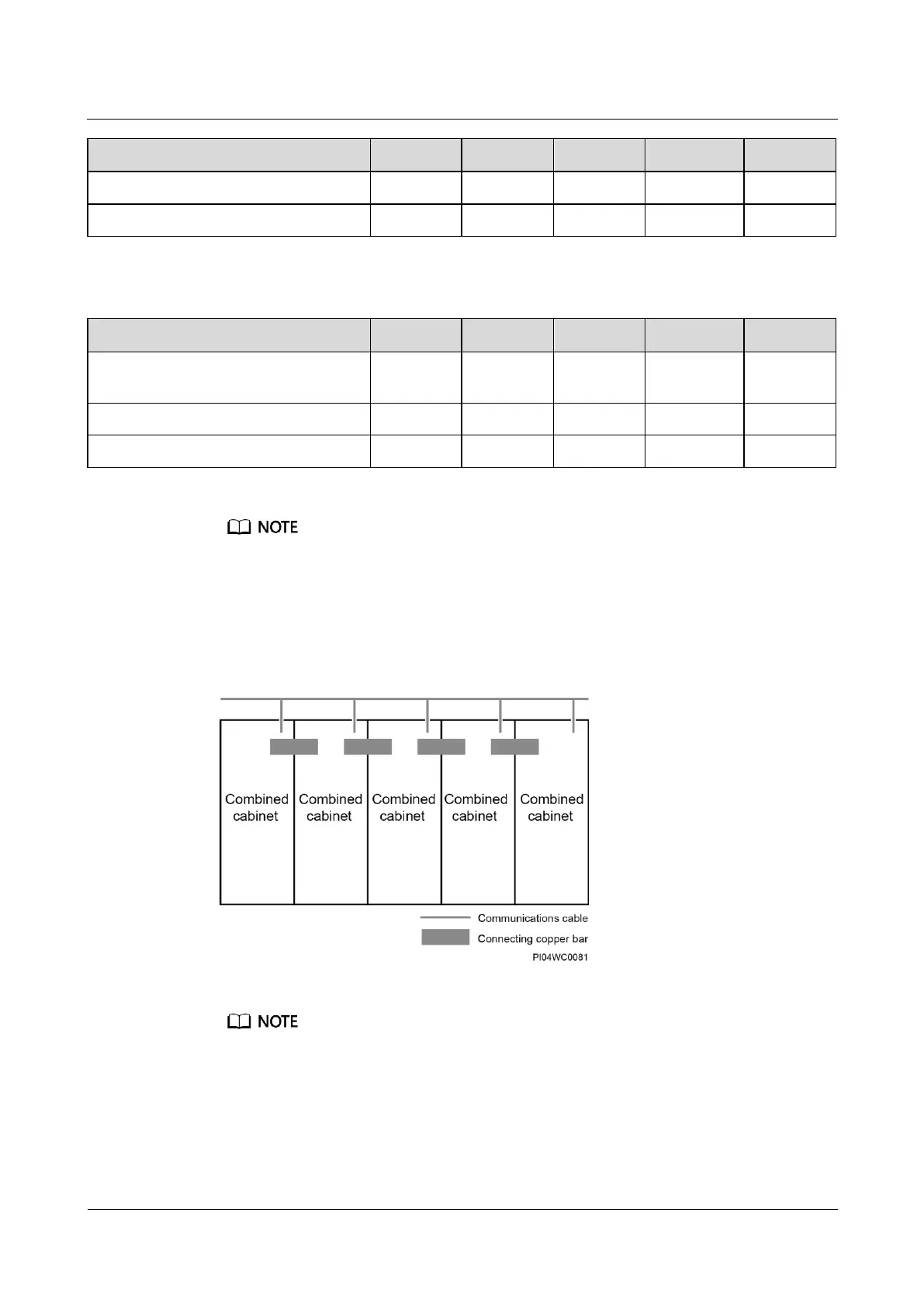

Figure 3-1 360 kW/720 kW system
Only combined cabinets of the same model can be connected together, up to a maximum of five
cabinets.
