Port
Silk Screen
Description
Associated Alarm
ALM6
Dry contact output 6
ALM7
Dry contact output 7
ALM8
Dry contact output 8
Interior

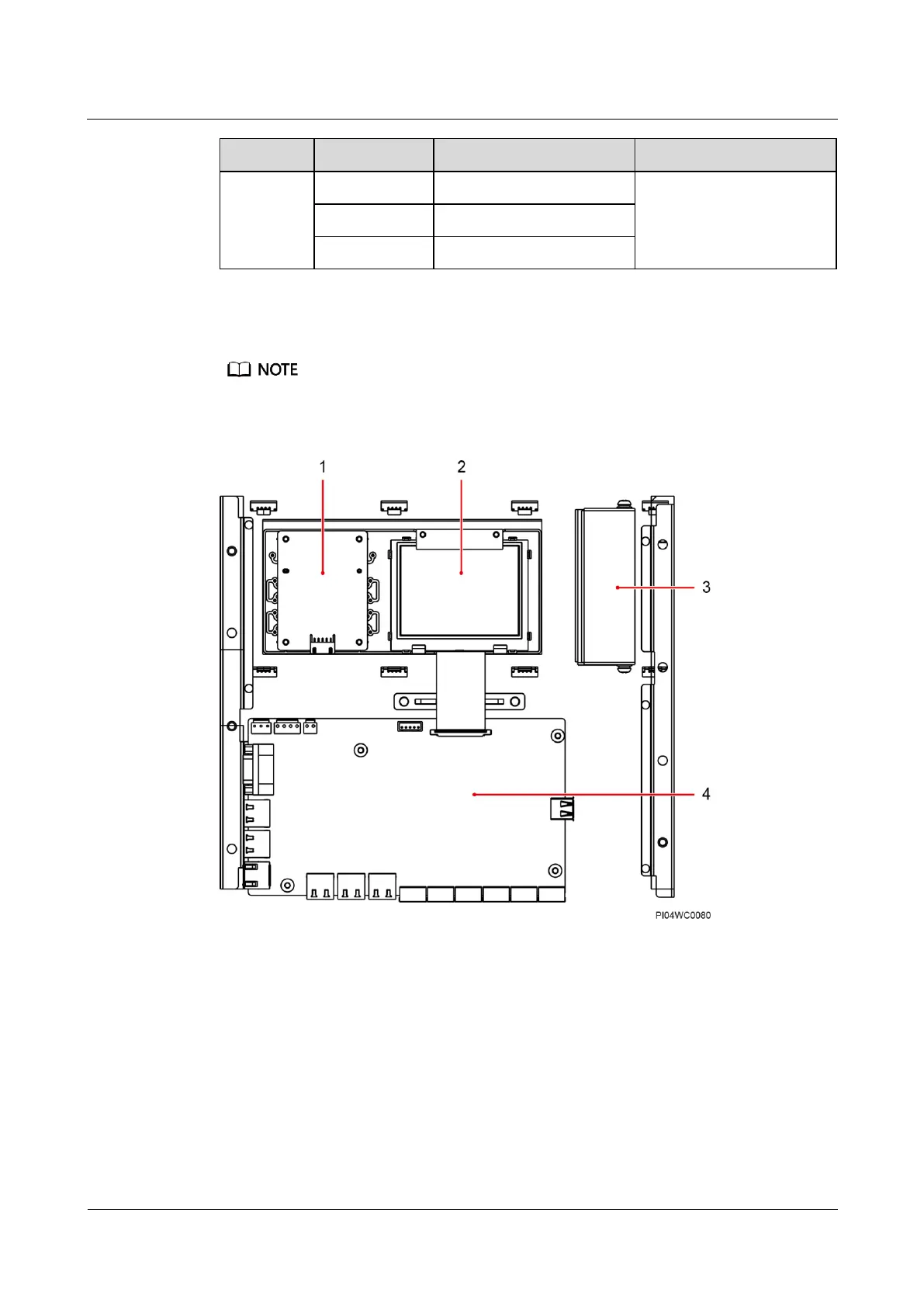

The following figure shows the internal structure with the cover removed.
Figure 5-6 SMU05A interior
(1) Button board
(2) LCD
(3) Indicator
(4) Main control board
5.2.2 Power Distribution Monitoring Unit
The power distribution monitoring unit is used to monitor AC or DC power distribution. It
provides detection, alarm, and communication functions.
