Panel
The power distribution monitoring unit on a combined cabinet has no panel.

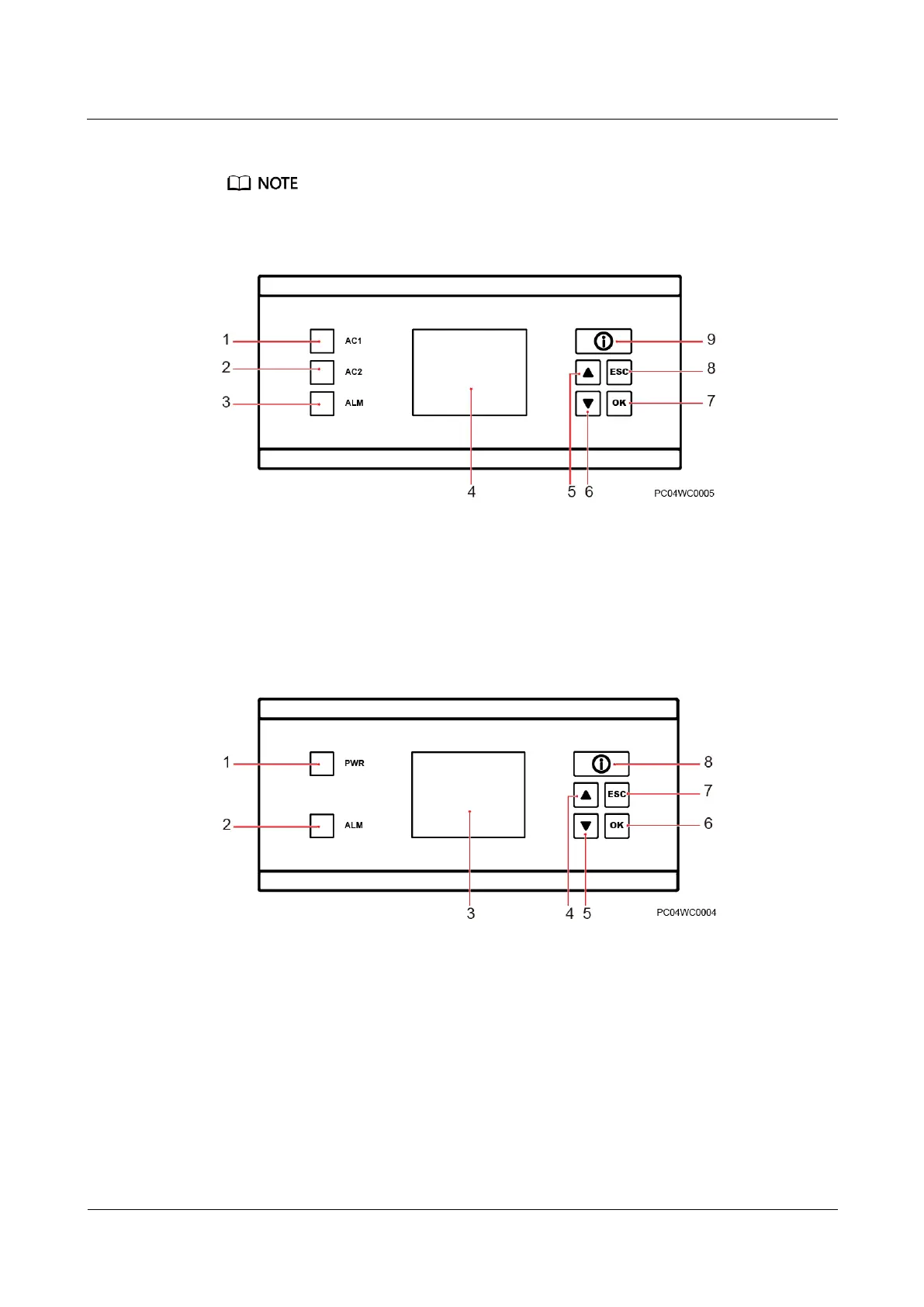

Figure 5-7 Panel of the power distribution monitoring unit (AC cabinet)
(1) AC input 1 indicator
(2) AC input 2 indicator
(3) Alarm indicator
(4) LCD
(5) Up button
(6) Down button
(7) OK button
(8) ESC button
(9) Info button
Figure 5-8 Panel of the power distribution monitoring unit (DC cabinet)
(1) Power indicator
(2) Alarm indicator
(3) LCD
(4) Up button
(5) Down button
(6) OK button
(7) ESC button
(8) Info button
