Procedure:
1. After power-on, the UPS transfers to standby mode, as shown in Figure 6-1.
Hold down the SELECT button for 5s to enter UPS setting mode.

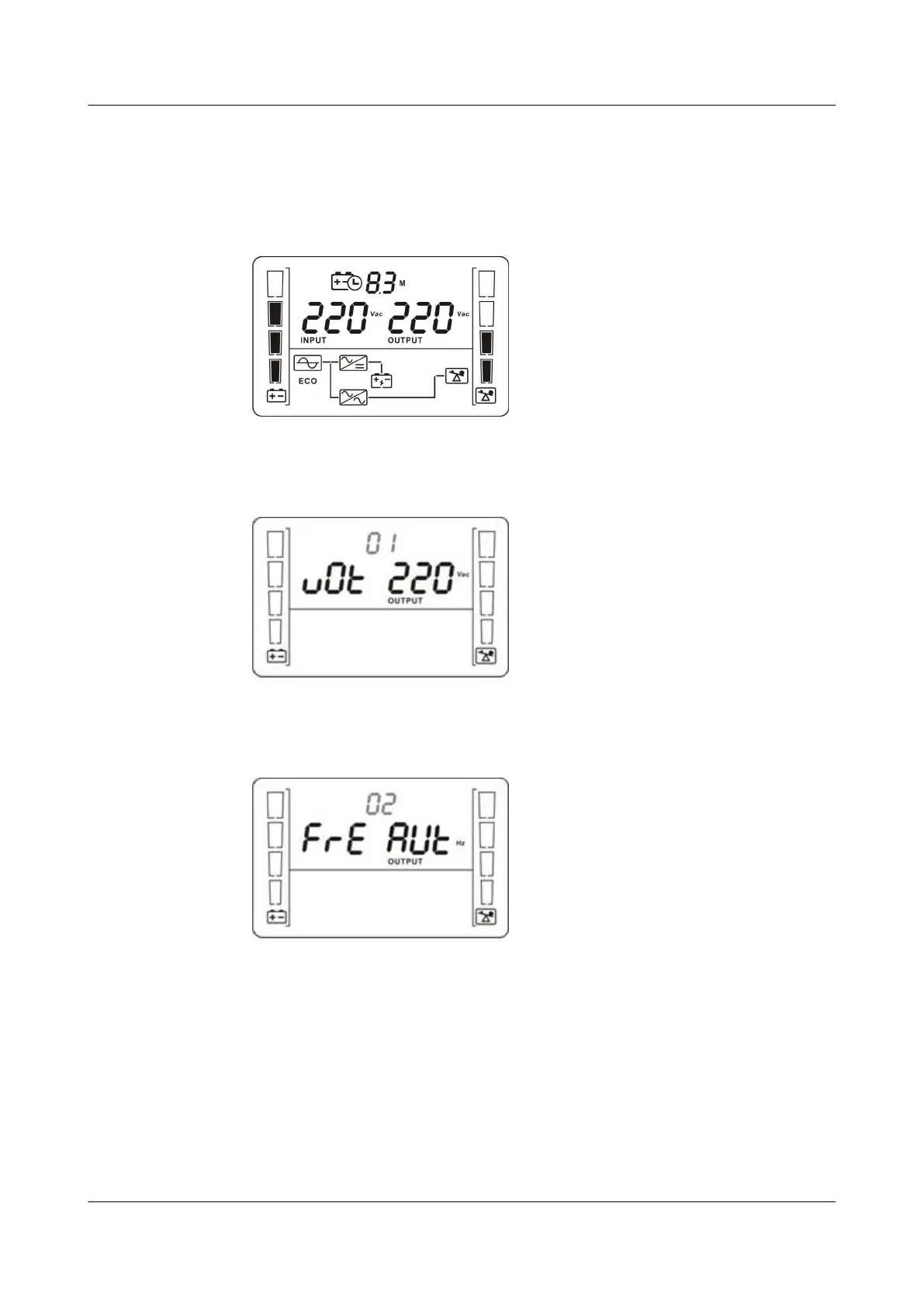

Figure 6-1 Default screen after UPS power-on
2. Set the output voltage based on the actual value. The voltage can be set to
220 V (default), 230 V, or 240 V.
Figure 6-2 Setting the voltage level
3. Set the system output frequency based on the rated frequency. The values
include 50 Hz, 60 Hz, and AUT (default).
Figure 6-3 Setting the system output frequency
4. (This step is required only for the UPS with long backup time.) Set the battery
capacity to the total capacity of all batteries actually connected. The default
value is 18 Ah for the UPS with long backup time, and the value can range
from 18 Ah to 999 Ah.
UPS2000-A-(1 kVA-3 kVA)
User Manual 6 Operations
Issue 17 (2024-01-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 76
