Mains Input Screen

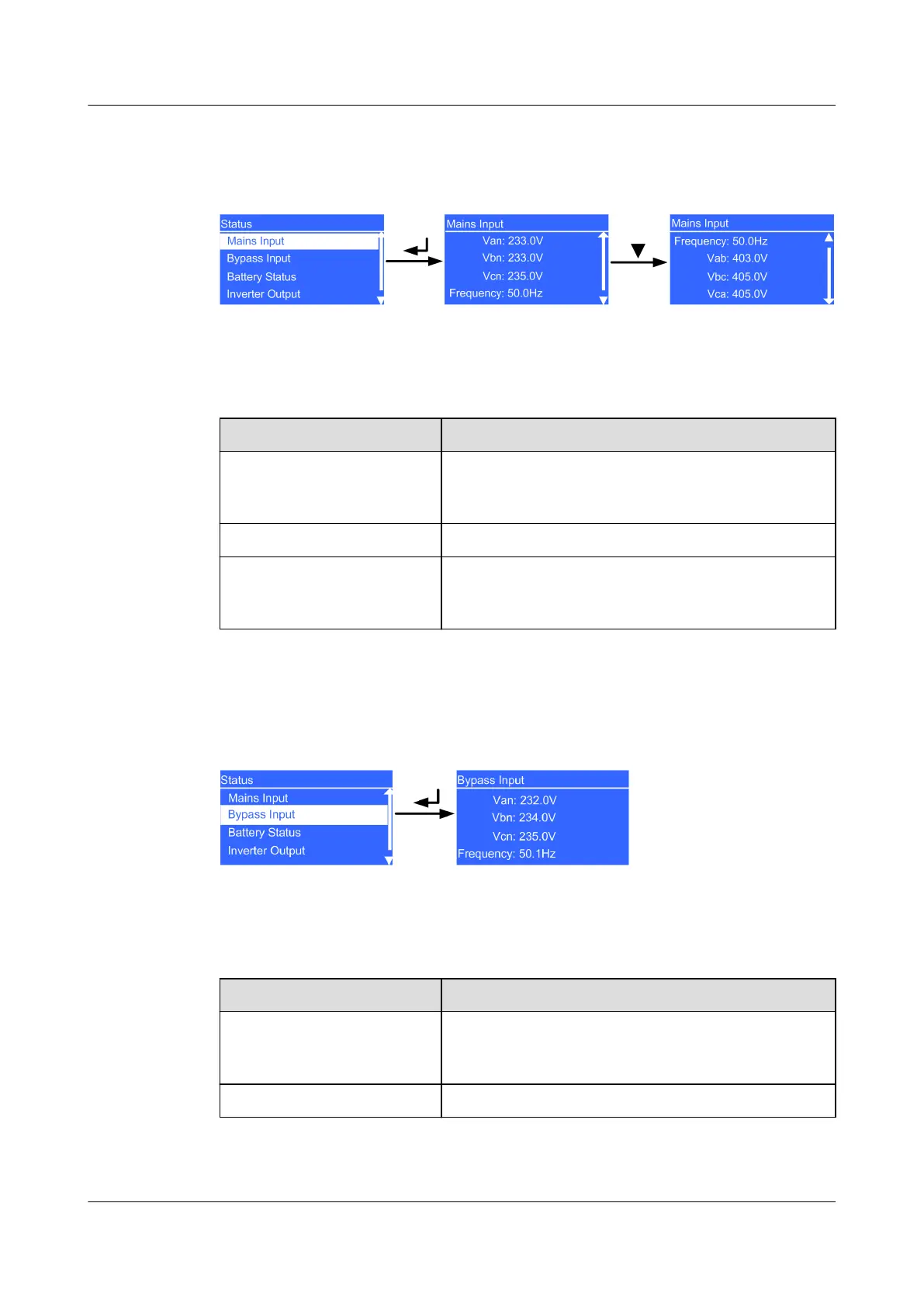

Figure 4-6 Mains Input screen
Table 4-5 Mains Input
Item Description
Van/Vbn/Vcn Phase voltages displayed on the Mains Input
screen (The parameter is Voltage in the case of
single-phase input.)
Frequency Frequency displayed on the Mains Input screen.
Vab/Vbc/Vca Line voltages displayed on the Mains Input screen
(The parameters are not displayed in the case of
single-phase input.)
Bypass Input Screen
Figure 4-7 Bypass Input screen
Table 4-6 Bypass Input
Item
Description
Van/Vbn/Vcn Phase voltages displayed on the Bypass Input
screen (The parameter is Voltage in the case of
single-phase input.)
Frequency Frequency displayed on the Bypass Input screen.
