Huawei UPS2000-G-20KRTL - UPS Output Screen

Table 4-8 Inverter Output
Item Description
Van/Vbn/Vcn Phase voltages displayed on the Inverter Output
screen (The parameter is Voltage in the case of
single-phase input.)
la/lb/lc Phase currents displayed on the Inverter Output
screen (The parameter is Current in the case of
single-phase input.)
Frequency Frequency displayed on the Inverter Output
screen.

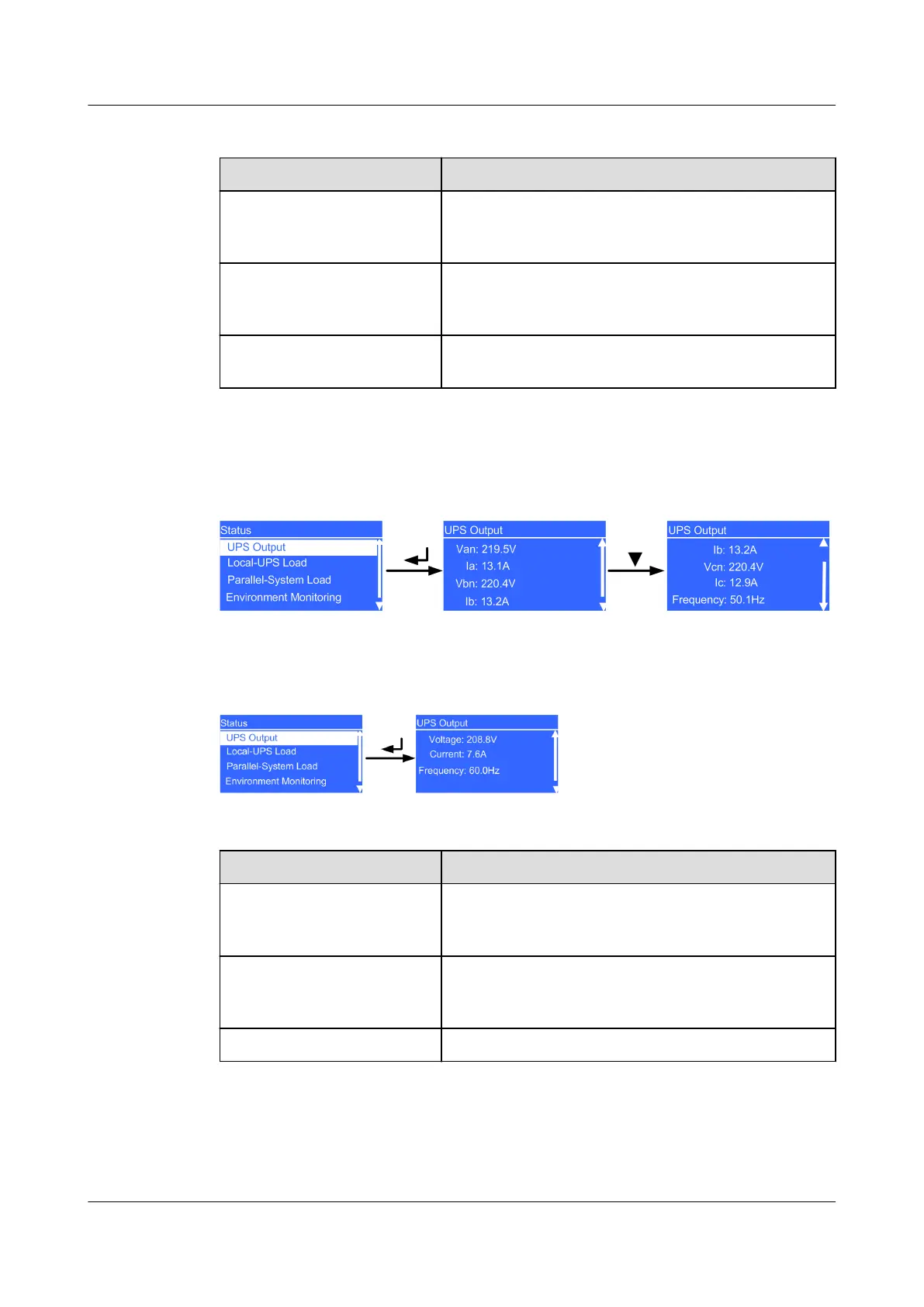

UPS Output Screen
Figure 4-11 UPS Output screen
Figure 4-12 UPS Output screen (two live wires)
Table 4-9 UPS Output
Item
Description
Van/Vbn/Vcn Phase voltages displayed on the UPS Output
screen (The parameter is Voltage in the case of
single-phase input.)
la/lb/lc Phase currents displayed on the UPS Output
screen (The parameter is Current in the case of
single-phase input.)
Frequency Frequency on displayed the UPS Output screen.
