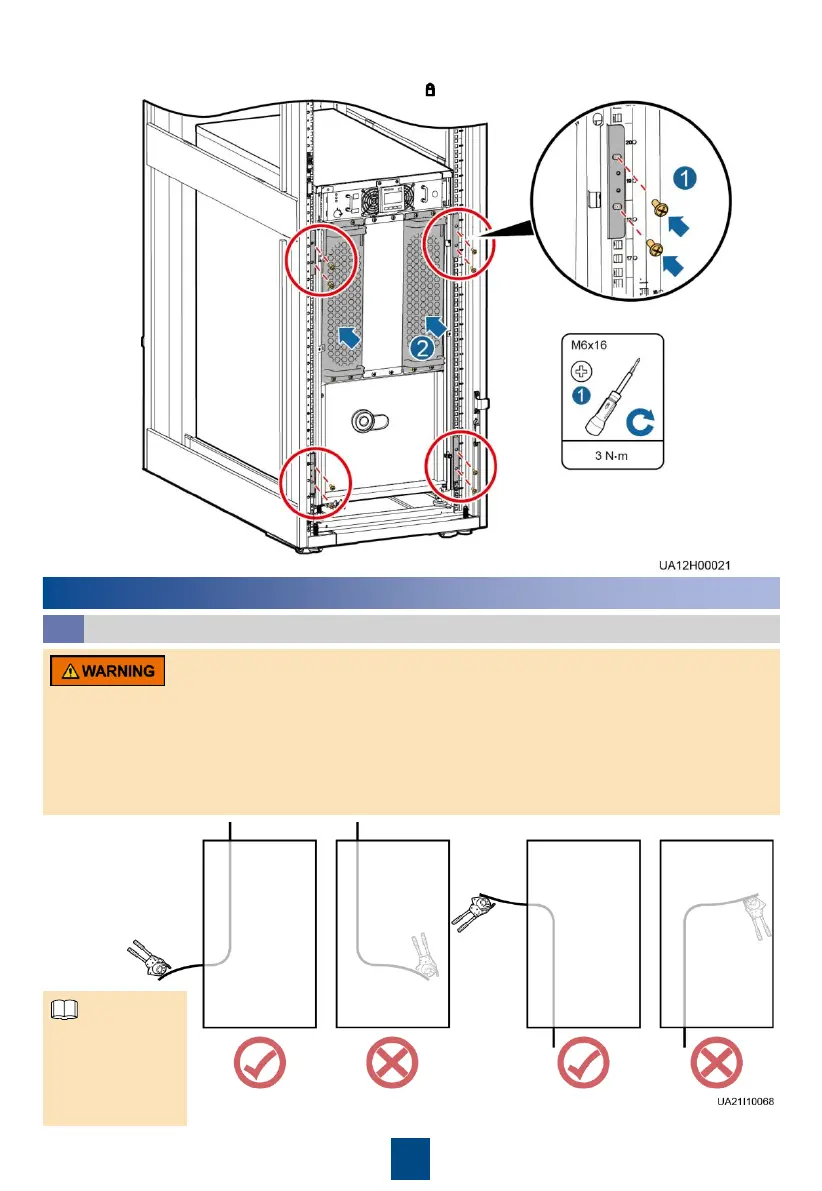

6. Secure the UPS mounting ears to the rack and install the power units in the UPS chassis. Rotate
the ready switches on the power units to locked state.
3
Installing Cables
• Prepare cables away from the cabinets to prevent scraps from falling inside. Cable scraps may
ignite and cause personal injury or device damage.
• After cables have been installed, clean the cabinets in a timely manner. Keep the cabinets and
surrounding environment clean and tidy.
• You need to prepare terminals onsite. The stripped length of the copper wire should be the
same as that of the part of the terminal that covers the conductor.
The cabling route
is for reference
only. Connect
cables based on
site requirements.
