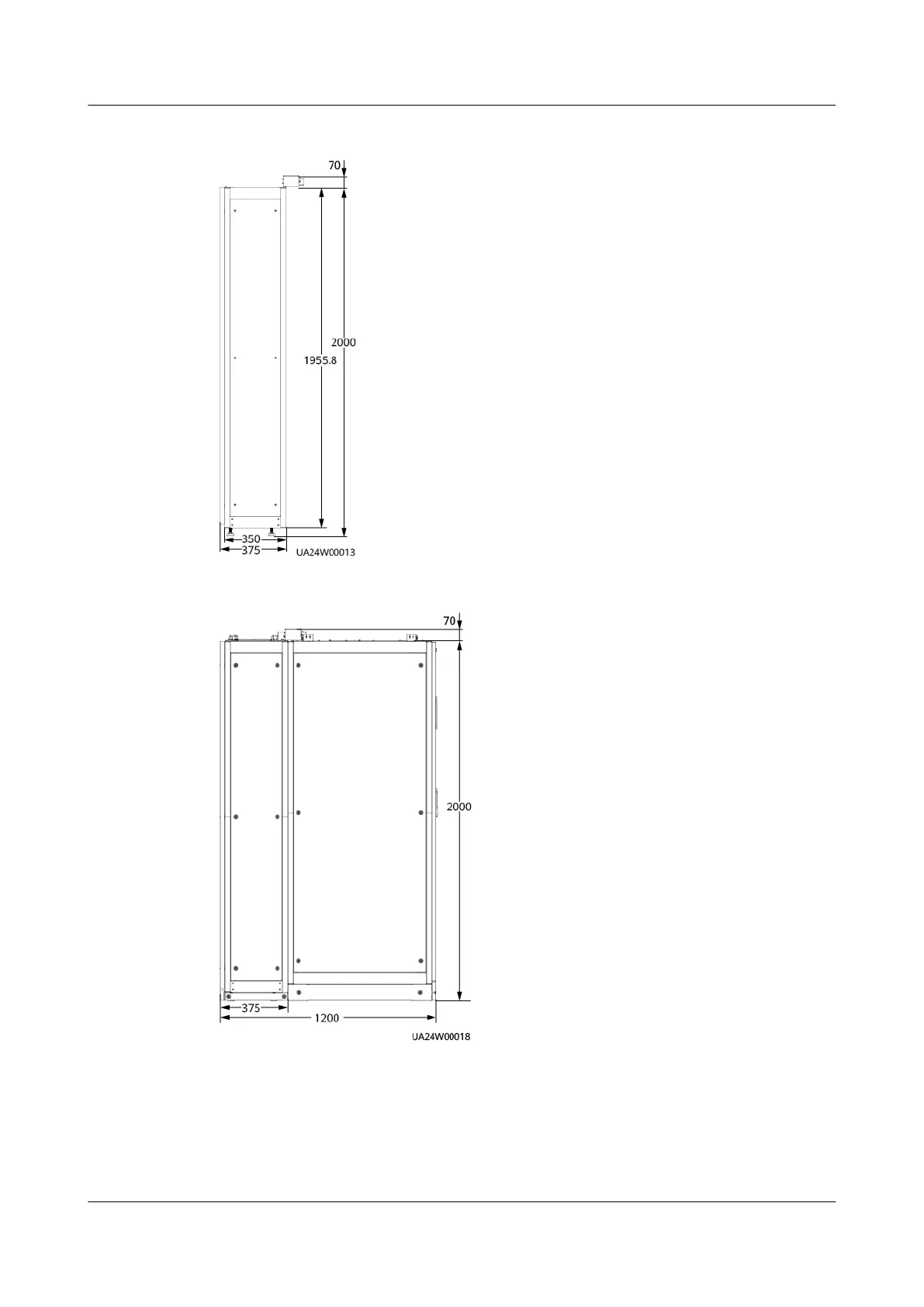

Figure 2-6 Side view of the top air-ow cabinet (unit: mm)
Figure 2-7 Side view of the top air-ow cabinet and UPS cabinet (unit: mm)
UPS5000 Top Air-ow Cabinet
User Manual 2 Product Overview
Issue 02 (2022-01-19) Copyright © Huawei Technologies Co., Ltd. 5
