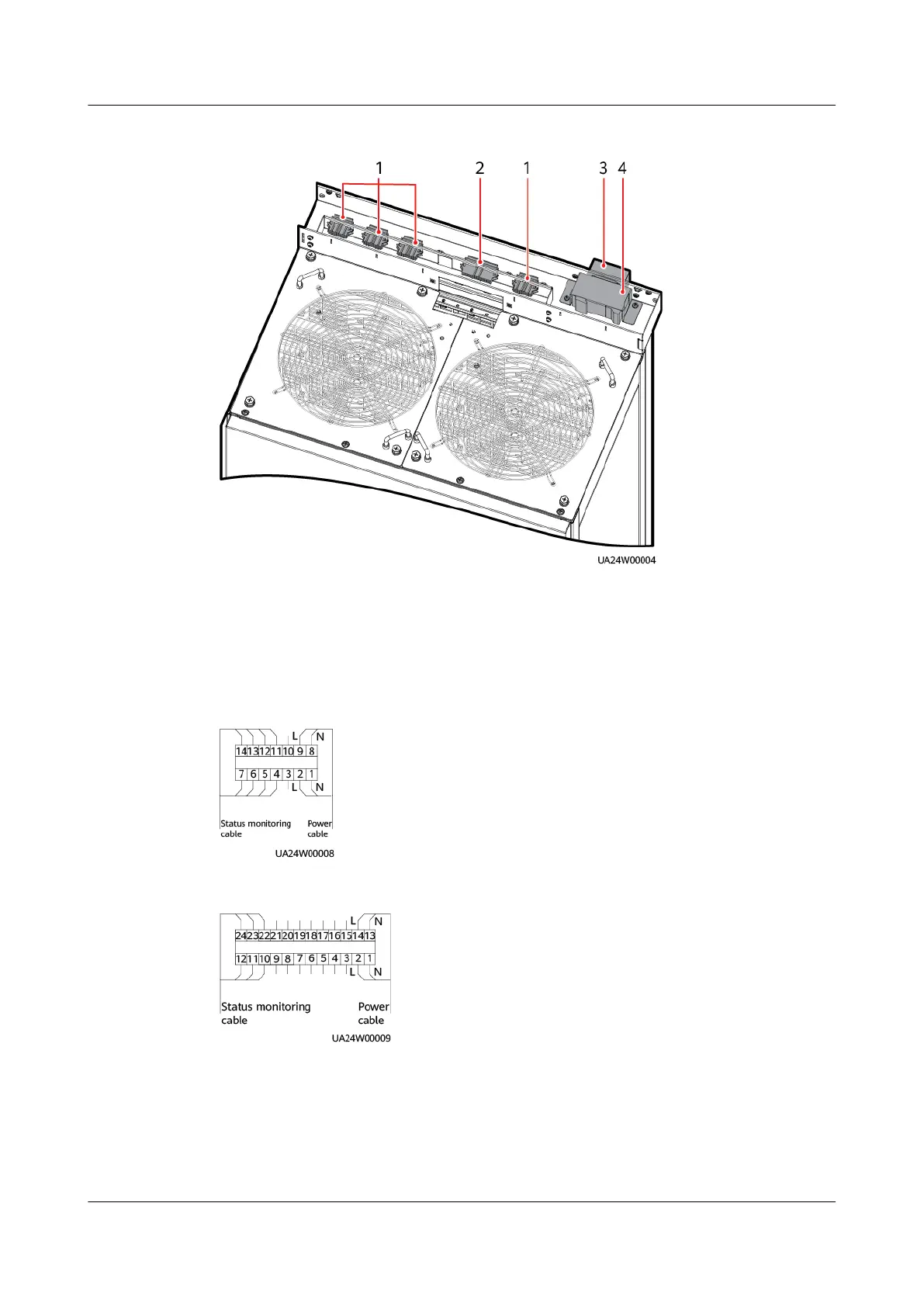

Figure 2-8 Cable trough on the top air-ow cabinet
(1) Fan power
ports (14-pin)
(2) 24-pin
terminal port
(3) Switch
protective cover
(4) Power switch
Figure 2-9 Fan power port
Figure 2-10 24-pin terminal port
UPS5000 Top Air-ow Cabinet
User Manual 2 Product Overview
Issue 02 (2022-01-19) Copyright © Huawei Technologies Co., Ltd. 6
