STAGEBOARD
OFF
Fig.2
Fig.3

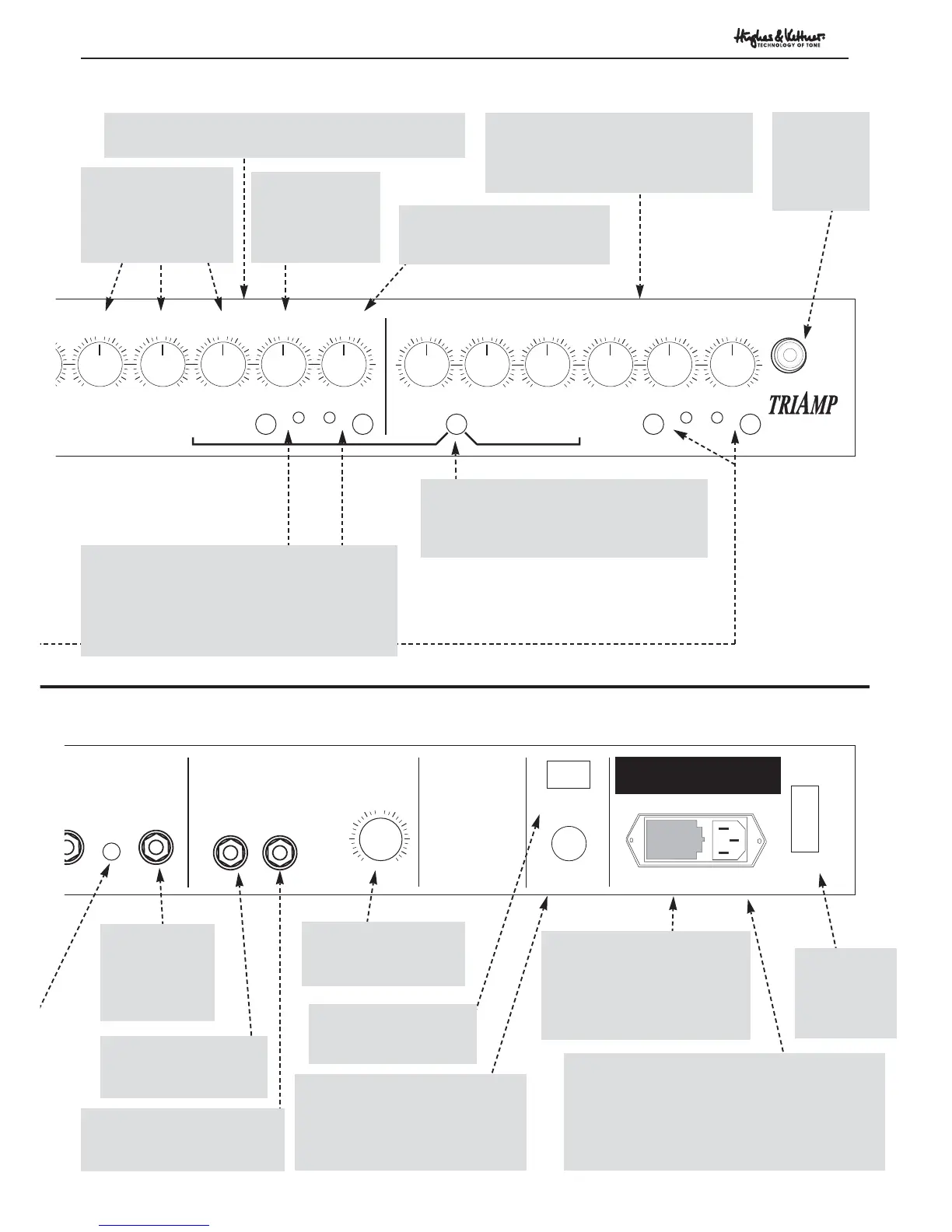

AMP 1:
This is the control section for the first of
the three all-tube amps. These controls
are comparable to AMP 2's controls.
AMP 2:
The second all-tube amp's control section.
MAINS:
Power ON/OFF
switch.
INPUT:
Input jack for
guitars.
CHANNEL SELECTOR SWITCHES:
Use this switch to select the desired basic sound
(channel) directly.
INDICATOR LEDS:
These show which basic sound (channel) is
currently active.
TIGHT:
Tightens up response in AMP 1 and AMP 2
for a very direct feel.
GAIN A:
Controls the degree of distortion
in CHANNEL A (AMP 2)
GAIN B:
Controls the degree
of distortion in
CHANNEL B
(AMP 2).
EQ SECTION:
Common BASS, MID
and TREBLE pots for
CHANNEL A and
CHANNEL B.
MAINS IN:
Socket for the included Euromains power cable.
Before plugging into the wall socket, make certain
the amp's voltage rating as displayed in the
VOLTAGE SELECTOR window matches your local
AC voltage rating.
VOLTAGE SELECTOR:
If you need to change TriAmp's
voltage to your local AC voltage
rating, pull out this cartridge and
see Section 2.1 for further
details.
ANODE FUSE:
Fuse holder for the power amp's
anode fuses. Be sure you only use
fuses rated to the indicated
specifications.
STAGEBOARD:
Input jack for TriAmp
STAGEBOARD.
REVERB CONTROL:
Determines the level of
internal reverb.
REVERB SEND:
Jack connected to the
reverb's input.
REVERB RETURN:
Jack connected to the reverb's
output.
FX RETURN:
Connect this jack
to your effects
processor's output
jack.
