2.2 OVERVIEW OF CONTROL FEATURES

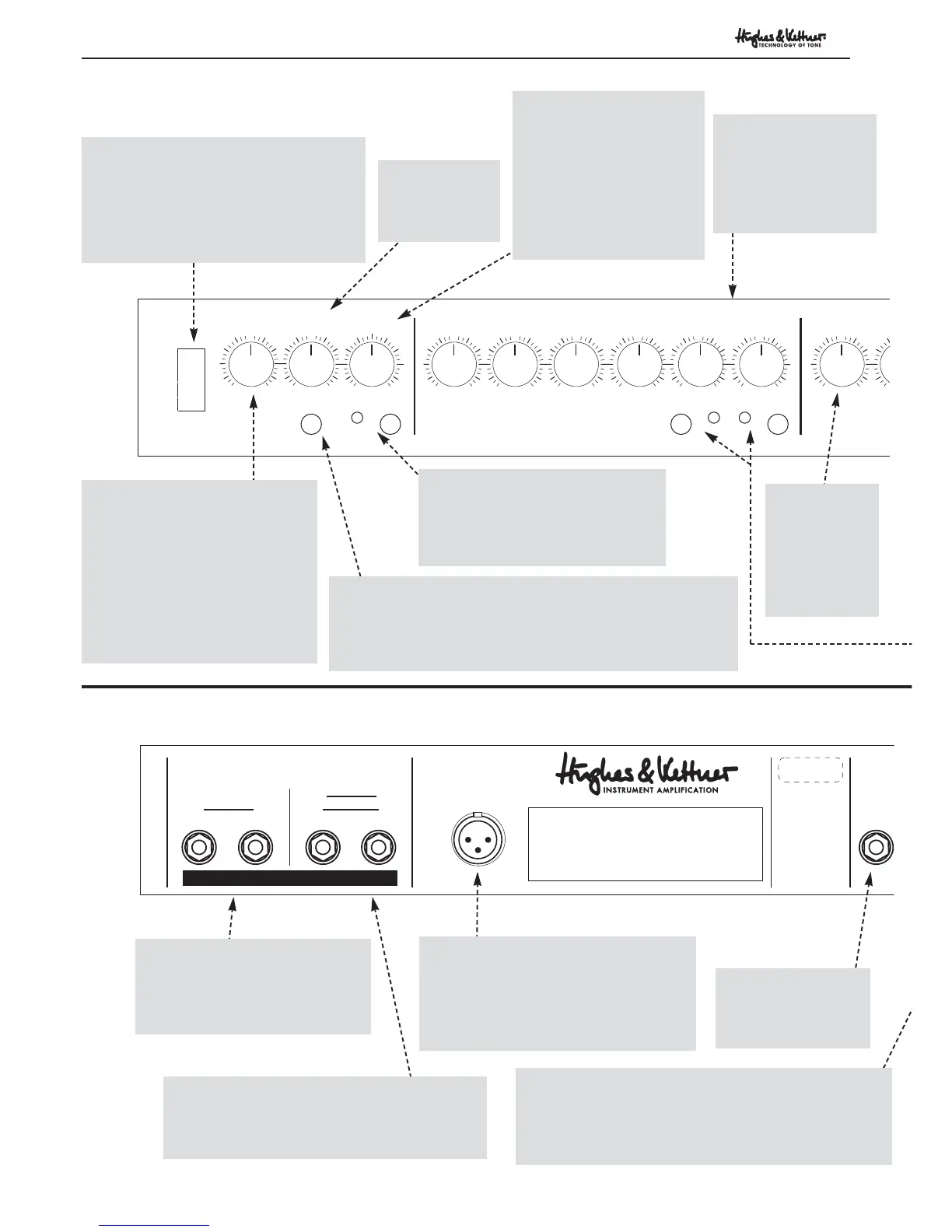

FRONT PANEL:
6
TRIAMP - Manual
STANDBY
MIDI LEARN
MASTER
0
5
10
FX-MIX
FX LOOP
DRY WET
TREBLE
0
5
10
AMP 3 MASTER
-5
0
+5
MID
-5
0
+5
AMP 3
BASS
-5
0
+5
GAIN B
0
5
10
CHANNEL B
GAIN A
0
5
10
CHANNEL A
AMP 2 MASTER
T
-5
0
5
10
0
5
10
PRESENCE
NEVER USE AMP WITHOUT SPEAKERS CONNECTED!
3= -
2= +
1= GND
SPEAKERS
1 x 4 OHMS
2 x 8 OHMS
1 x 8 OHMS
2 x 16 OHMS
RED BOX
DI OUT
MADE IN ST. WENDEL / GERMANY
1 x 16 OHMS
FX
SEND
Ser. No.
AMP 3:
The third all-tube amp's
control section. These
controls are comparable
to AMP 2's controls.
AMP 2 MASTER:
Regulates the
volume of AMP 2
in relation to
AMP 1 and AMP
3.
FX LOOP
SWITCH:
Turns TriAmp's FX LOOP on or off. If
you want to switch the FX LOOP on
and off via the STAGEBOARD or MIDI,
set this switch to the 'off' position.
FX-MIX:
Controls the mix of two
signals in relation to each
other, namely TriAmp's
internal preamp signal on the
one hand, and the external
signal fed to the FX RETURN
JACK, usually from an effects
processor, on the other.
MIDI LEARN:
Installation of the MSM-1 MIDI Module is a prerequisite for
MIDI capability. With the module installed, a press on the MIDI
LEARN button will save the current CHANNEL/FX LOOP
combination.
MASTER:
Determines overall
TriAmp output.
PRESENCE:
Determines presence levels for all
three amps. The PRESENCE circuit is
automatically reconfigured with each
change of channel to respond
optimally for each basic sound. Try
it. In each channel, turn the
PRESENCE control all the way up
and back down again to hear how it
affects each channel differently.
STANDBY:
Mutes the amp during breaks. The voltage to
the power amp tubes is reduced but not
turned completely off to extend tube life;
when you turn the amp back to full power,
they are still warm and don't need to be
reheated from a cold start.
FX SEND:
Connect this jack to
your effects processor's
input jack.
-10 db SWITCH:
This damping switch allows you to adapt the signal level to
lower-level effects devices. Press this switch in for
instrument level processors (e.g. stomp boxes).
RED BOX DI OUT:
This is a balanced output featuring the RED
BOX Cabinet Simulator. It enables you to
feed the TriAmp signal directly to a mixing
console for stage and recording purposes.
Refer to Section 4.3 for details.
8 - 16 OHM SPEAKER JACKS:
Dual jacks wired in parallel for speaker cabinets
with an overall impedance between 8 and 16
ohms.
4 OHM SPEAKER JACKS:
Dual jacks wired in parallel for
speaker cabinets with an overall
impedance of 4 ohms.
REAR PANEL:

Hughes & Kettner TRIAMP Specifications

General

Channels	3
Preamp Tubes	7 x 12AX7
Poweramp Tubes	4 x EL34
Reverb	Yes
Weight	Approx. 22 kg
Type	Tube Amplifier
Power Output	100 Watts
EQ	3-band EQ per channel
Effects Loop	Yes
Footswitch	Included
