8

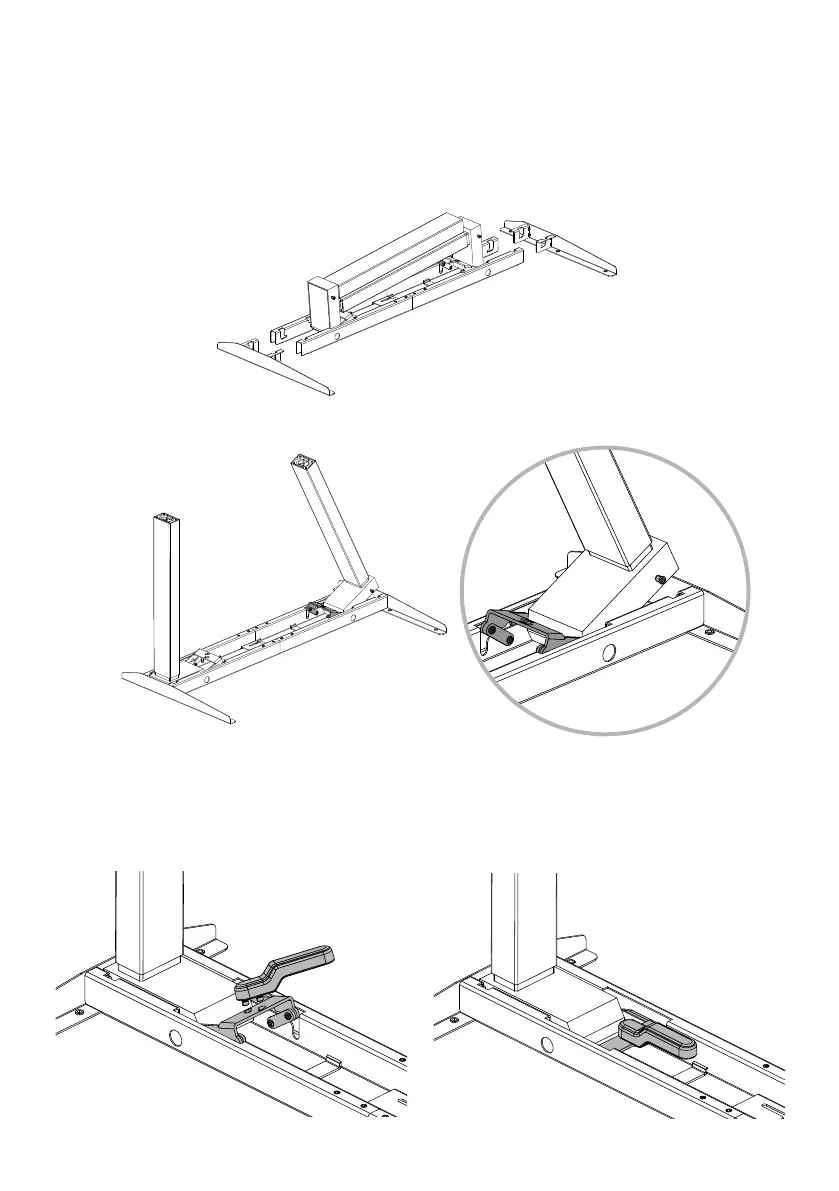

Ensure the buckle is raised� Raise the Leg perpendicular to the frame, placing steadily into pocket�
Assembly Instructions
Two Column (Standard/Extended Range)
Insert the Assembly Handle into the buckle and rotate until handle is in line with frame� Ensure
cables are clear of any moving parts� Push down hard on the handle until the buckle snaps into
place� Remove the handle and repeat on the opposite leg�
1
2
3
Insert the 2 Wing Brackets into either side of the Frame�
