Device Usage
BODY Body Wiring Connector
DEFOG Rear Defogger Relay
HDLNR 1 Headliner Wiring Connector 1
SPARE RELAY Not Used
CB SEAT
Driver and Passenger Seat
Module Circuit Breaker
CB RT DOOR
Rear Right Power Window,
Passenger Door Module
SPARE Not Used
INFO Not Used

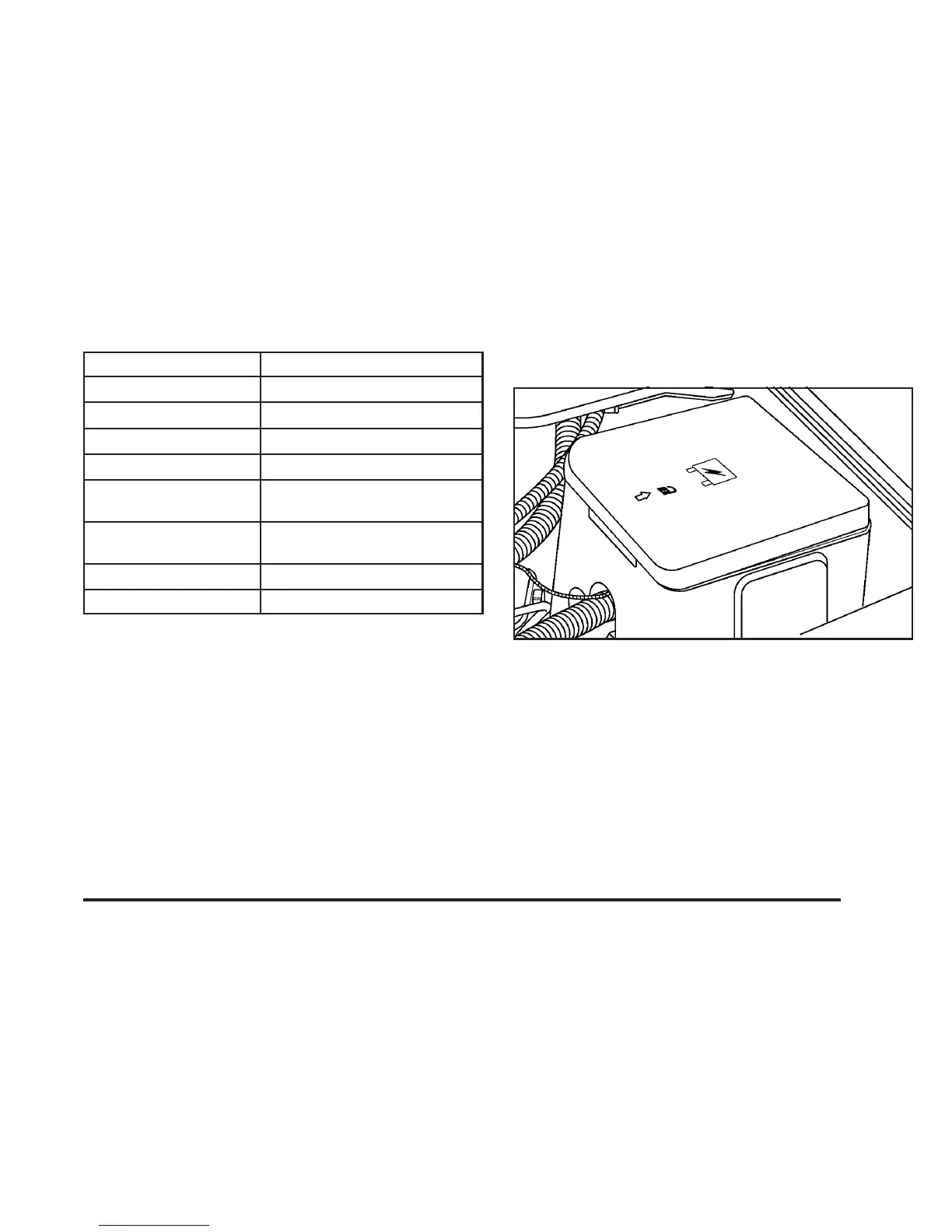

Underhood Fuse Block
The underhood fuse block in the engine
compartment is located on the driver’s side of
the vehicle near the battery. Lift the cover for
access to the fuse/relay block.
To remove fuses if you don’t have a fuse extractor,
hold the end of the fuse between your thumb
and index finger and pull straight out.
See Engine Compartment Overview on page 402
for more information on its location.
507
