Hunter 50CC - Page 158

12.
8
ITEM QTY FITTINGS
1
D3 2 3/8" 10 mm EYE 308-365 18 ft. 2 1/2" 5550 mm
FORK 308-318-01
2
V2 2 3/8" 10 mm EYE 308-365 18 ft. 1/2" 5500 mm
EYE 308-365
3
D2 2 5/16" 8 mm T-TERMINAL 308-326 16 ft. 11 1/8" 5160 mm
STD/FORK TB 174-325-06
4
RD2 2 9/32" 7 mm FORK 308-315-01 17 ft. 9 3/8" 5420 mm
STD/FORK TB 174-324-10
5
V1 2 1/2" 12 mm FORK 308-318-01 18 ft. 7 1/4" 5670 mm
N/A BUSHING 306-539
IN FORK
STD/TGLE TB 674-002828
6
D1 2 1/2" 12 mm EYE 308-366 18 ft 3 1/4" 5570 mm
STD/TGLE TB 174-327-12
7
RD1 2 1/4" 6 mm FORK 308-314-01 14 ft. 2 7/8" 4340 mm
STD/T TB 174-474-21
8
FORESTAY 1 3/8" 10 mm FURLEX 310-17 56 ft. 4 1/2" 17185 mm
OVERALL CP-CP 039-027-64
INNER
STAY 5/16" 8 mm FURLEX 308-15 41ft 10" 12750 mm
Option Not Shown OVERALL CP-CP
039-027-61
SRIG-6732
1. CP = CENTER PIN / EOS = ENDOF STUD 2. LENGTHS
DO NOT
INCLUDE SPREADER TIP LINKAGE.
3. MEASURE T-TERMINALS & STEMBALLS FROM TOP OF FITTING.
HUNTER 50cc FURLING
STANDING RIGGING
CP-CP OR CP-EOSWIRE SIZE
BOW ROLLER /
FORESTAY ATTACHMENT
V1 CHAINPLATE
PIN IS INSERTED FROM STARBOARD SIDE
7
6
5
2
3
4
S.S. COTTER PIN
1
FORWARD
8
LOEWR END ATTATCHES TO STAYSAIL CHAINPLATE
CUTTERSTAY (OPTION)

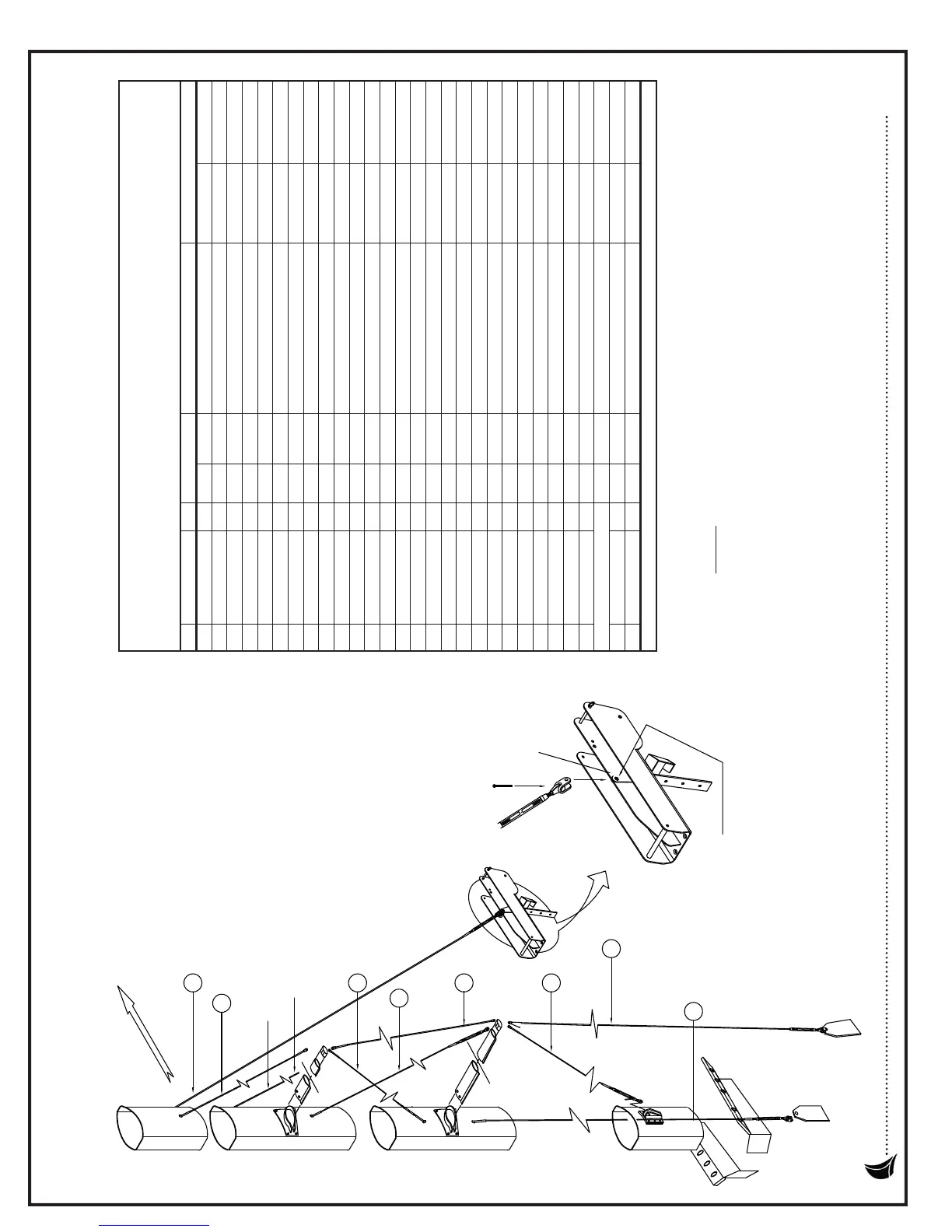

50cc FURLING STANDING RIGGING DETAIL
