Hunter ST Series User Manual

3
hunter industries.com
Lower Flange
O-Ring
Stainless
Steel Piston

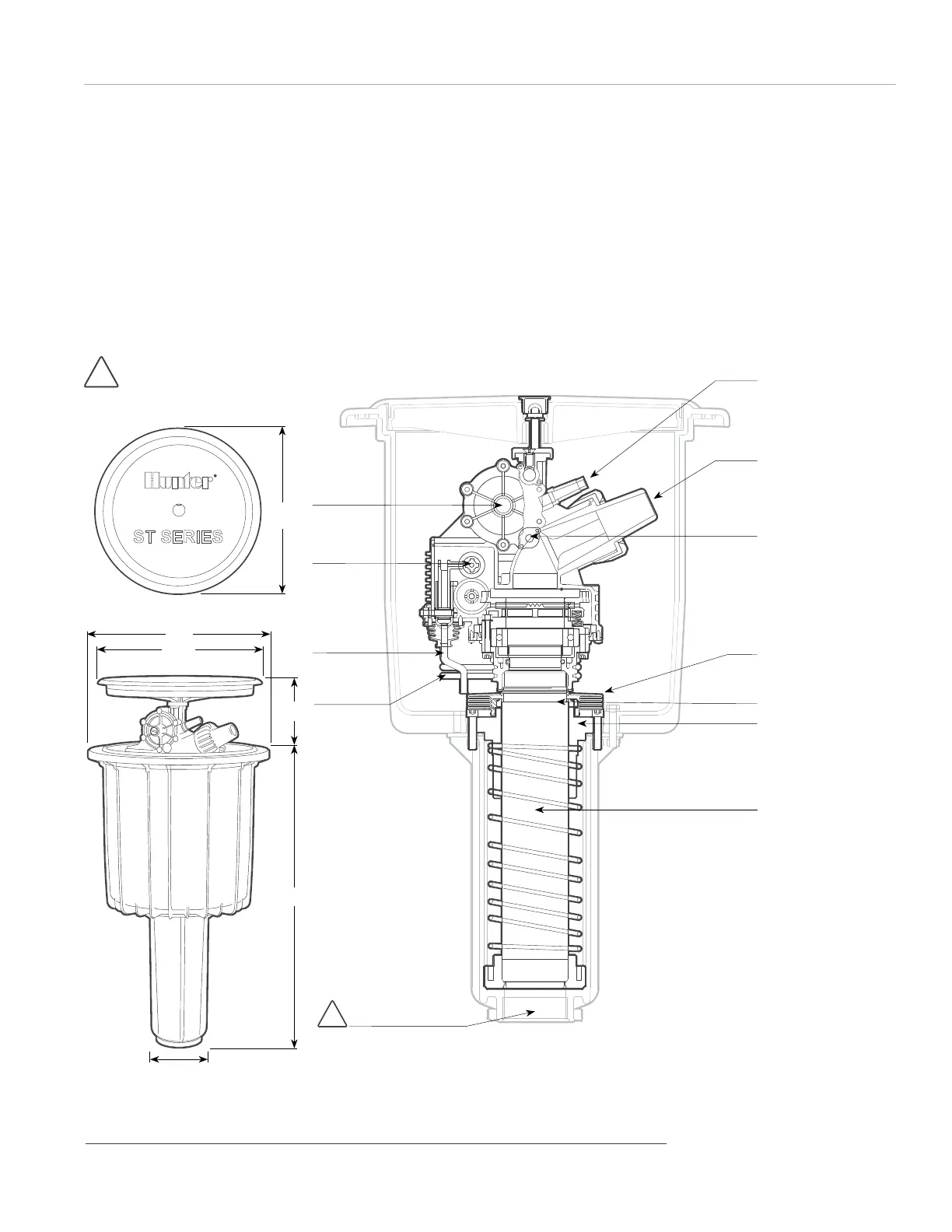

Product Dimensions:
• Overall height: 22⁄"
• Pop-up height: 5"
• Exposed diameter: 14"
• Inlet size: 2" BSP*
Operating Specications:
• Radius: 107' to 165'
• Flow: 96.2 to 326.8 GPM
• Operating pressure range: 60 to 120 PSI
• Speed of rotation: 80 seconds at 90 PSI in a single 180° sweep
Gearbox
Reversing
Mechanism
Boot
Piston Flange
Speed
Control Knob
Turbine Housing
2" BSP Inlet
Secondary Brass
Nozzle
Primary
Nozzle
Arc Adjustment
Rings
14"
12"
14"
5"
2" BSP
22⁄"
!
!
*Use P/N 241400SP adapter for 2" PVC pipe if needed.
Product Details

Hunter ST Series Specifications

General

Arc Adjustment	40-360 degrees
Operating Pressure	30-70 PSI
Inlet Size	1/2 inch
Pop-up Height	4 inches
Material	Plastic
