24 – English
6

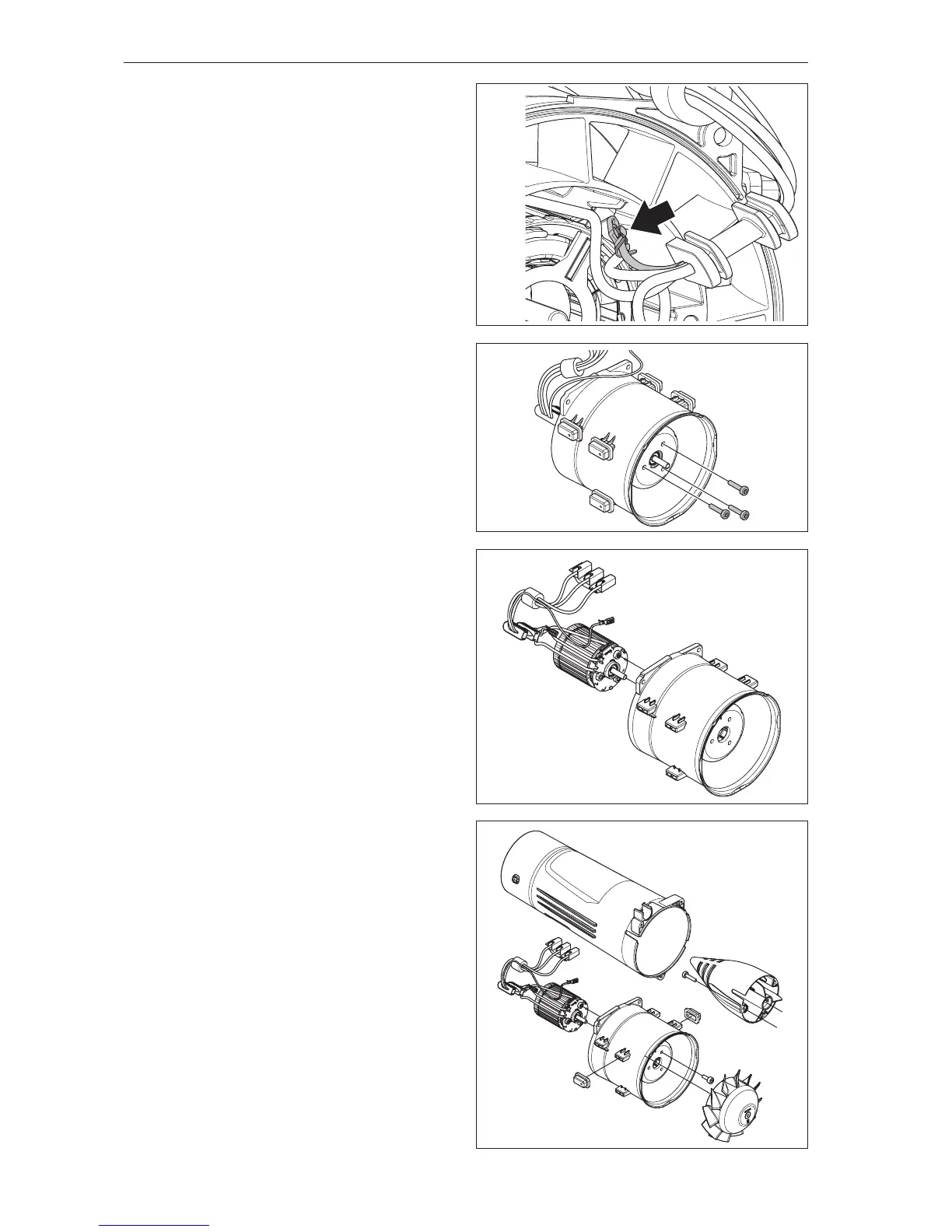

Loosen connector (H) from the contact spring in
the motor housing.
NB! Do not pull the wires.
See gure 12
7
Loosen the screws (x3) securing the motor in the
motor housing.
See gure 13
8
Lift the motor out of the motor housing.
NB! Do not pull the wires.
See gure 14
Cleaning and inspection
Clean and check all parts thoroughly. Parts must
be replaced if cracked or showing signs of other
defects. Always use original spare parts.
See Figure 15
Fig 12
Fig 13
Fig 14
Fig 15
Repair instructions
H
