Husqvarna 536LiBX - Assembling the Main Switch

33 – English
Fig 54
Repair instructions
Fig 55
Fig 52
Fig 53
C
D
For products with S/N: 20170000000- (LiPX),
20170000000- (LiP4), 20170000000- (LiPT5).
1
Dismantle the control handle as described in
"6Basic dismantle/assembly" on page16.
2
Dismantle the throttle trigger lock and throttle trig-
ger as described in "7.1 Dismantling the throttle
trigger lock and throttle trigger" on page18.
3

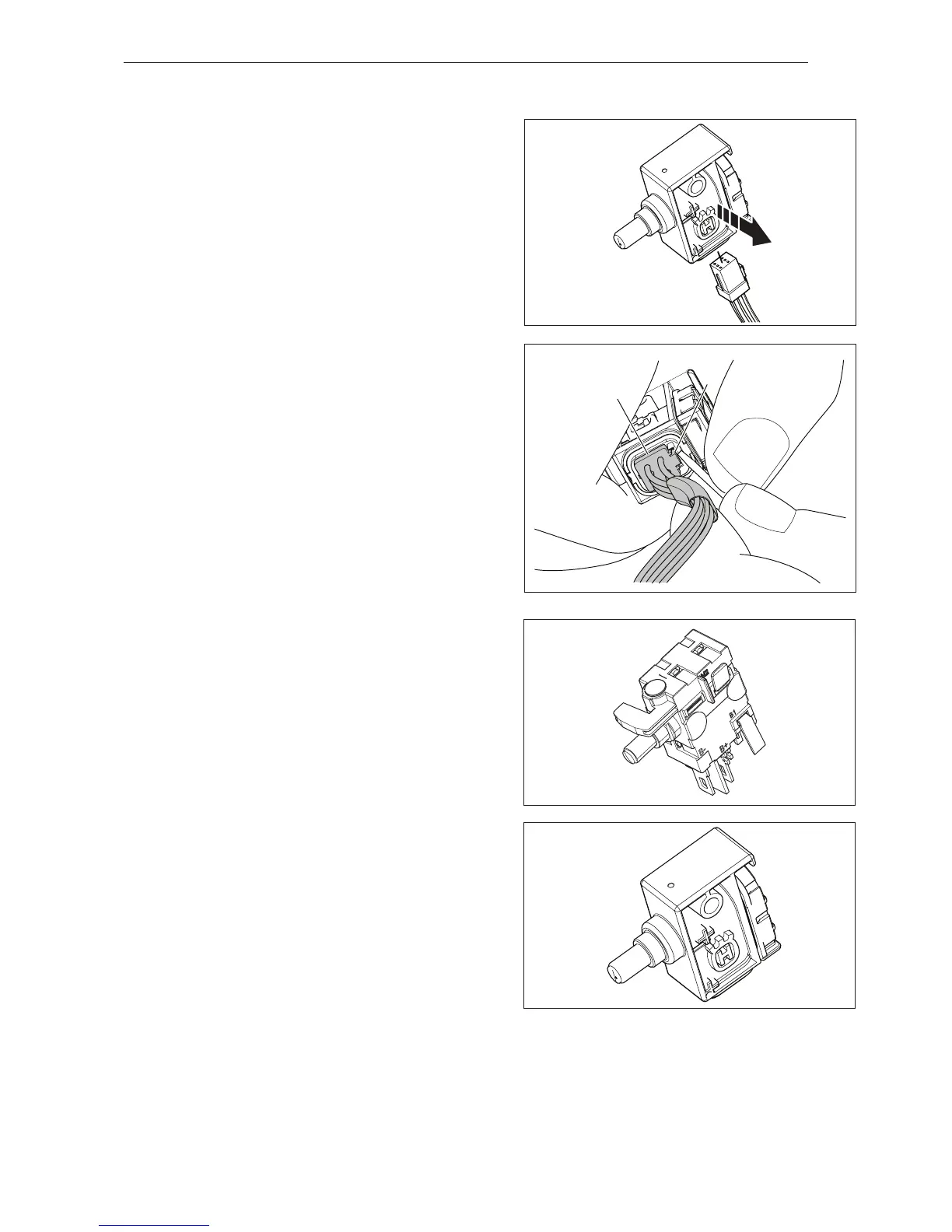

Lift out the main switch and disconnect cable (A).
See gure 52.
4
To disconnect the cable (A), free the catch (D) with
a small screwdriver and pull the contact (C) out..
NB! Do not pull on the wires. Hold the contact
only when you pull it out.
See gure 53.
8.14 Cleaning and inspection of the
main switch
Clean and check the main switch. The main switch
must always be replaced with a new one if cracked
or showing signs of other defects.
Always use original spare parts.
See gure 54 for products with S/N: -20170000000
(LiPX), -20170000000 (LiP4), -20170000000
(LiPT5).
See gure 55 for products with S/N: 20170000000-
(LiPX), 20170000000- (LiP4), 20170000000-
(LiPT5).
A
