28 – English

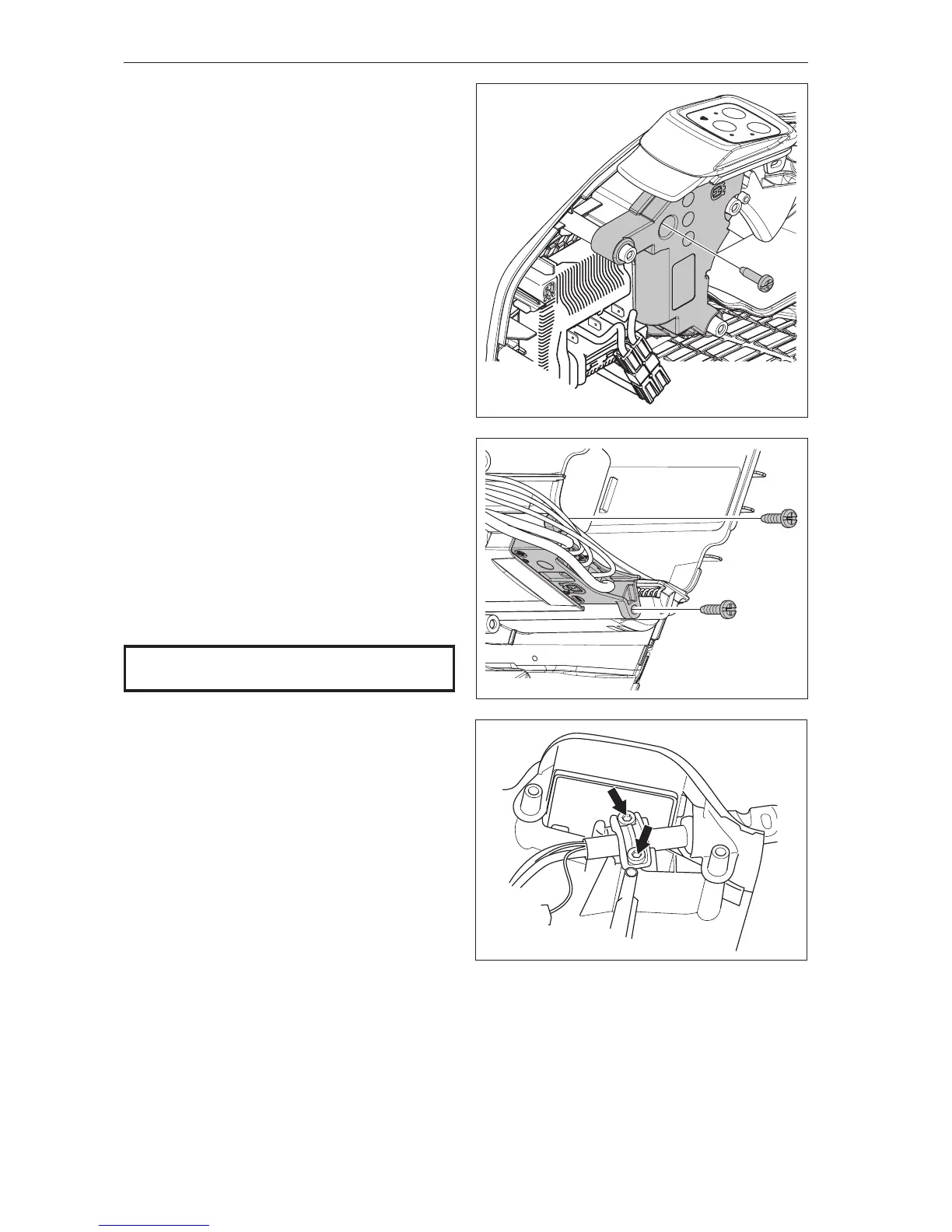

7.8 Dismantling the main cable
1
Loosen the contact spring that is located in the
cover over the electronics.
See Chapter 7.4.
2
Dismantle the motor housing/blow pipe.
See Chapter 7.6.
3
Loosen the screw and lift o the cover.
See gure 24
4
(436LiB, 536LiB)
Loosen the screws (2x) for the battery contact.
See gure 25a.
(536LiBX)
Loosen the screws holding the battery cable.
See gure 25b.
NOTE!
The at cable to the keypad is very fragile.
Repair instructions
Fig 24
Fig 25a
Fig 25b
