Husqvarna 536LiBX - Assembling Motor and Blow Pipe

English – 25
Fig 16

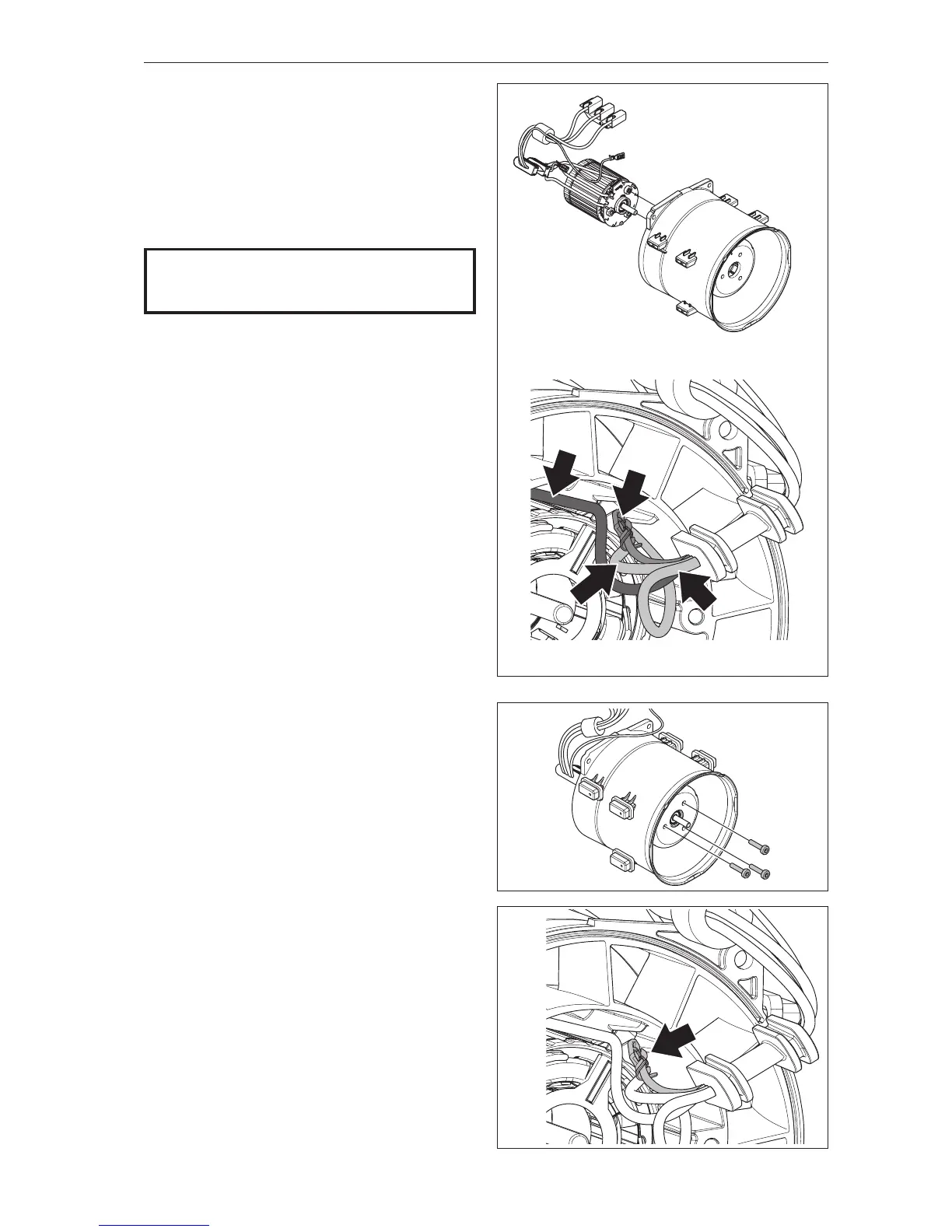

7.7 Assembling motor and blow pipe
1
Place the motor with cables and contact spring
into the motor housing. It is very important that the
motor is positioned correctly. Check that the red
(X) and blue (Y) cables are positioned to the right
of the contact spring (H) and the white (Z) cable to
the left.
See Figure 16.
2
Fasten the motor in the motor housing with the
screws (x3).
Tightening torque 2.8±0.2 Nm.
See gure 17
3
Couple connector (H) to the contact spring in the
motor housing.
See gure 18
Fig 18
Fig 17
NOTE!
Ensure cables, etc., are positioned correctly
to avoid pinching.
Repair instructions
H
H
X
Y
Z
