Secure the shaft (F) on the motor and press on the
fan (G) with a maximum force of 9 kN and a mini-
mum force of 2 kN. The fan is pressed on until it is
1 mm outside or at most in line with the edge of the
motor housing.
NB! Do not press down the fan any further!
See gure 19
5
Fasten the nose cone in the motor housing with the
screws (x3).
Tightening torque 1.6±0.2Nm.
See gure 20
6
Place the bushing/cables (E) into the groove in the
blow pipe. Fasten the blow pipe in the motor hous-
ing with the screws (x3).
Tightening torque 1.9±0.1 Nm.
Place the brushes/cables (D) in the attachment on
the blow pipe.
See gure 21
Repair instructions

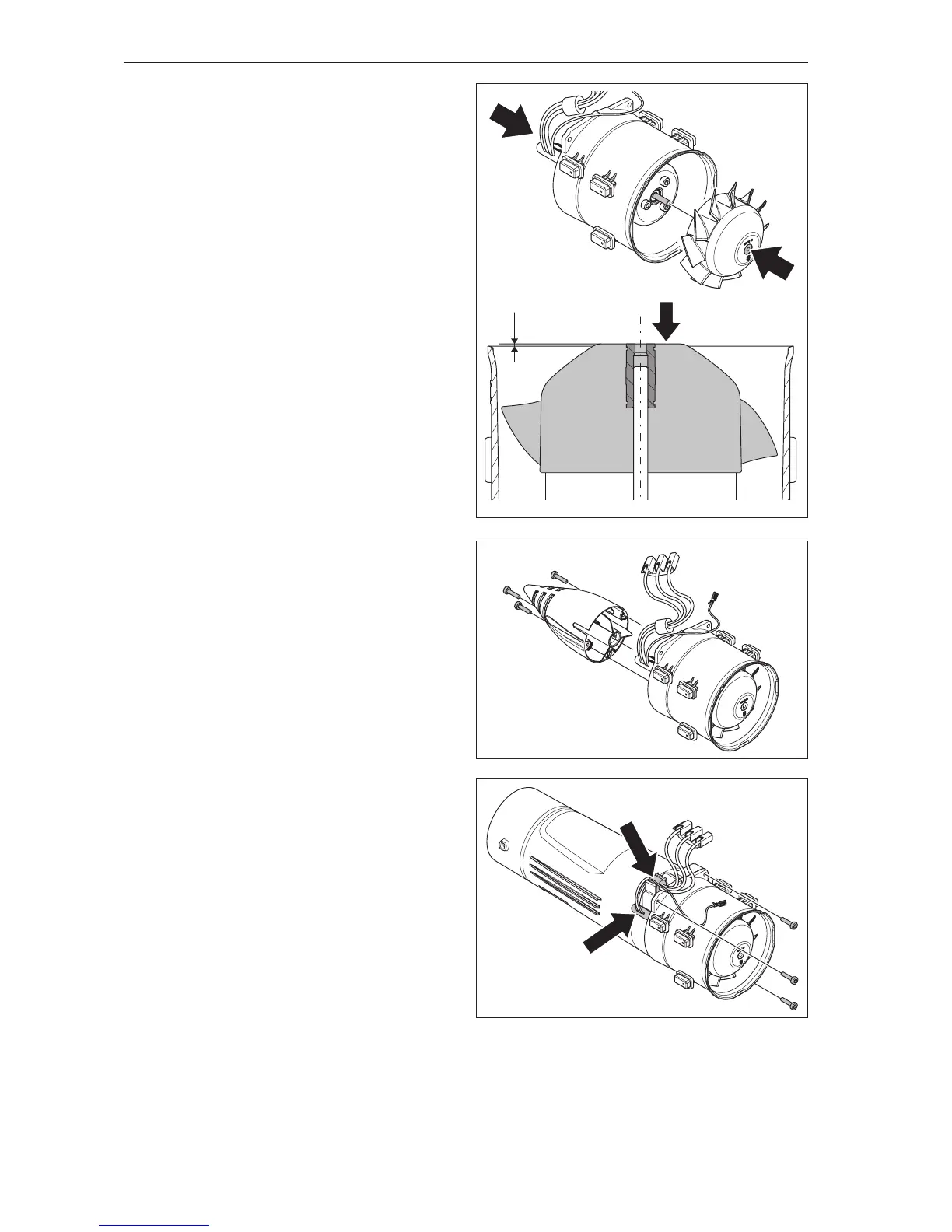

Fig 19
F
G
Fig 20
Fig 21
D
E
Min 0 mm
Max 1 mm
Max 9 kN
Min 2 kN
Min 0 mm
