English – 23
Fig 8
Fig 9
Fig 10

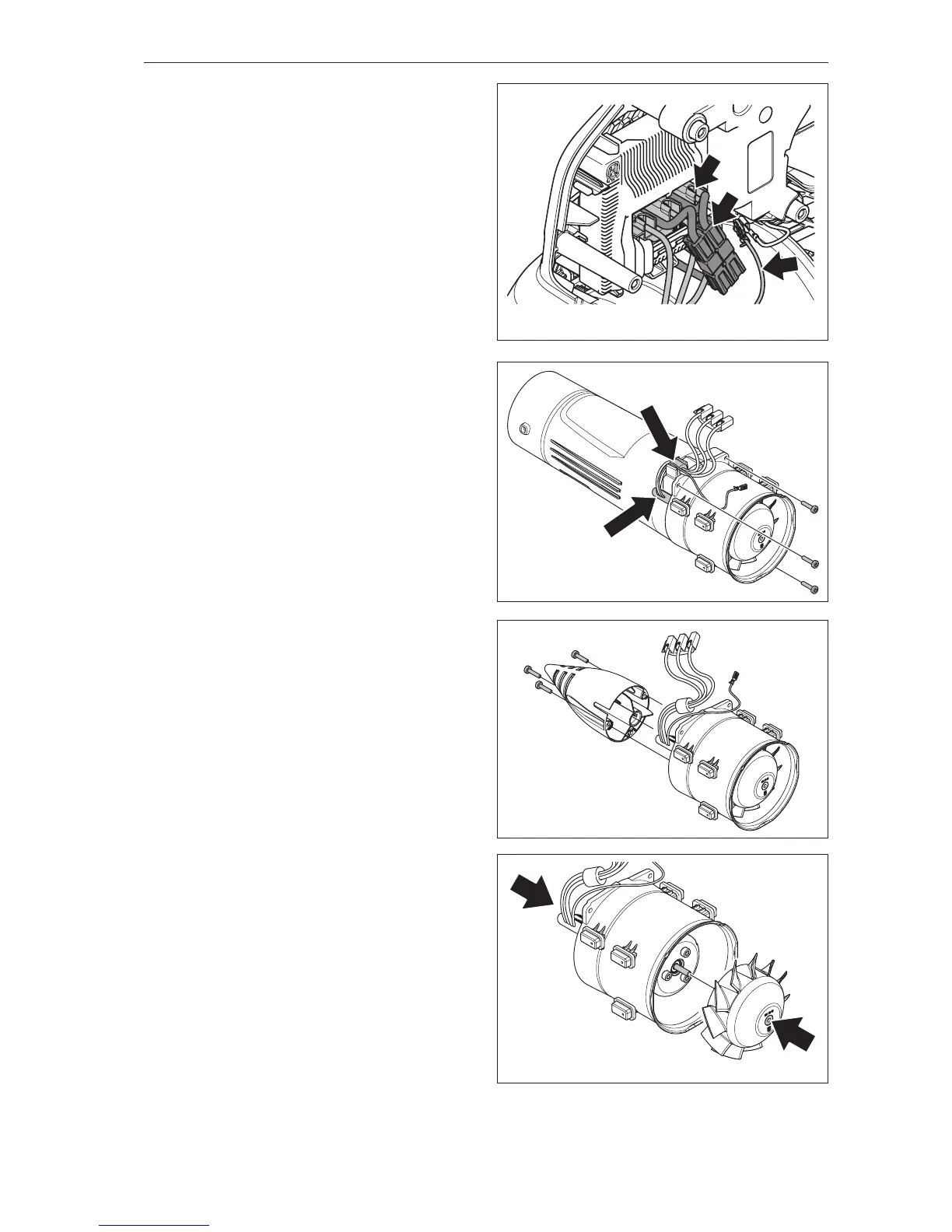

7.6 Dismantling motor and blow pipe
1
Loosen the contact (A) from the control unit. Take
care not to damage the connector (B) and cables.
Loosen the connector/cable (C) from the contact
spring.
NB! Do not pull the wires.
See gure 8
2
Lift the blow pipe and motor housing straight out of
the chassis.
3
Loosen the screws (x3), unhook the brushes/
cables (D) and lift o the blow pipe from the mo-
tor housing. Make sure the rubber seal (E) comes
loose from the pipe.
See gure 9
4
Loosen the screws (x3) and lift the nose cone from
the motor housing.
See gure 10
5
Secure the shaft (F) on the motor. Use an M4
screw (part no. 5811431) as a puller and screw it
onto the shaft (G) to press o the fan.
See gure 11
Repair instructions
D
E
C
A
B
Fig 11
F
G
