SERVICE WORK ON THE CHASSIS 12
111

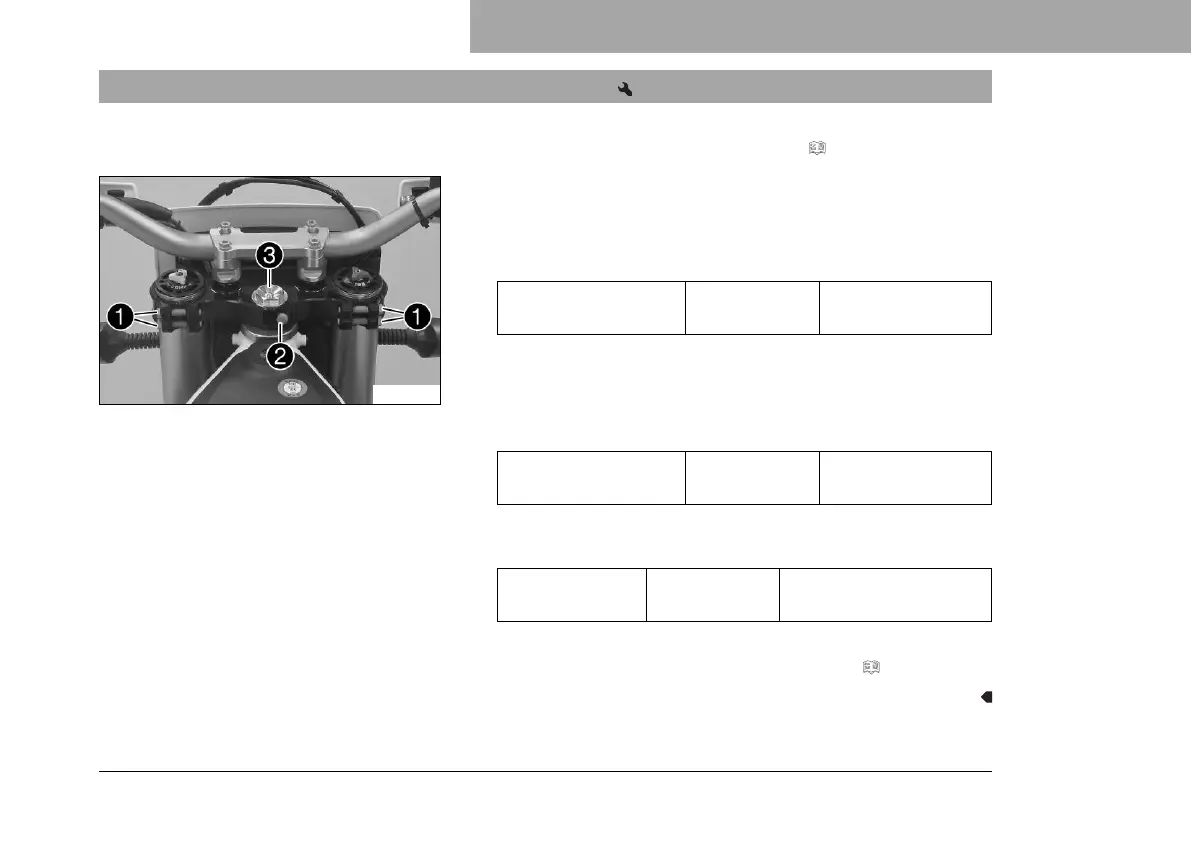

12.8 Adjusting the steering head bearing play
Preparatory work
Raise the motorcycle with a lift stand. ( p. 105)
S02220-10
Main work
Loosen screws
1
. Remove screw
2
.
Loosen and retighten screw
3
.
Guideline
Screw, top steering
head
M20x1.5 12 Nm (8.9 lbf ft)
Using a plastic hammer, tap lightly on the upper triple clamp
to avoid stresses.
Tighten screws
1
.
Guideline
Screw, top triple
clamp
M8 17 Nm (12.5 lbf ft)
Mount and tighten screw
2
.
Guideline
Screw, steering
stem
M8 20 Nm (14.8 lbf ft)
Loctite
®
243™
Finishing work
Check the play of the steering head bearing. ( p. 109)
