English-121
ELECTRICAL SYSTEM

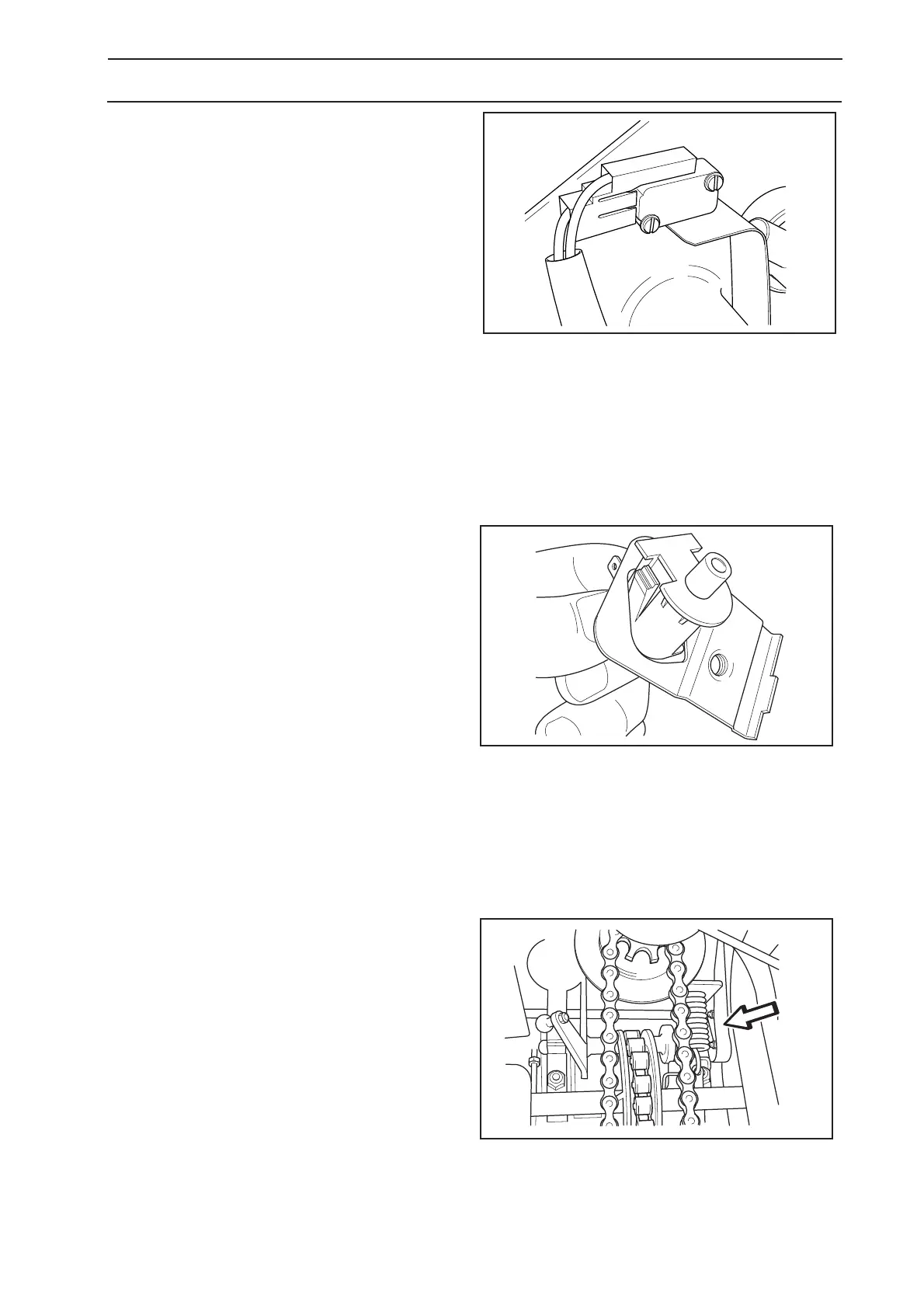

Microswitch lifting lever
1. Loosen the right-hand wing cover.
2. Remove the inner protecting plate on the
gear lever carrier.
3. Disconnect the connector from the
microswitch.
4. Remove the microswitch.
Assembling is done in the reverse order
without setting.
Microswitch: Seat
1. Fold up the seat and remove the spring
disc with spring and spacer sleeve. The
microswitch holder is released.
2. Disconnect the cable connections from
the microswitch.
3. Press in the fasteners and remove the
microswitch from the holder.
Assembling is done in the reverse order
without setting.
Micro switch pedal arrangement
1. Remove the transmission cover.
2. Check the hydrostatic cable adjustment.
See “Adjusting of the Hydrostatic
Transmission Cable” on page 66.
3. Remove the cover from the frame tunnel.
4. Adjust the microswitch so that it clicks
when the parking brake pedal is pressed
down approximately 40 mm/1.5".
Note: The spring on the parking brake
cable can be unhooked to improve
accessibility.
5. Replace the transmission cover and the
cover over the frame tunnel.
8009-422
Microswitch: Mowing Deck
8009-424
Microswitch: Seat
8009-696
Micro switch pedal arrangement
