REPAIR INSTRUCTIONS
Fitting the Pendulum Shaft
1. Lubricate half the shaft (the half that has
not been lathed) and press it into the
steering spindle from the rear (see
illustration).
2. Fit the washer and circlip on the
pendulum shaft by the inner mount.
3. Fit the dust cover (with thin lip towards
the rear) approx. 2/3 of the way in on the
shaft and lubricate the shaft on both
sides of the dust cover.
4. Roll the rear frame forward and press it
onto the pendulum shaft.
5. Fit the washer and circlip on the
pendulum shaft (1).
6. Connect the hydraulic hoses under the machine.
7. Fit the rear belt.
8. Fit the hydrostatic transmission’s fan.
9. Fit the hydrostatic transmission cable.
Check that it is adjusted correctly, see
“Adjusting of the Hydrostatic
Transmission Cable” on page 66.
10. Fit the idler’s spring.
11. Fill and bleed the hydraulic system of
excess air. Top up as needed after test
running.
12. Fit the transmission cover.
Drive axles
Remember cleanliness, follow the
instructions under “Hydraulic
system\Hydraulic Hygiene”.
Counterhold using a spanner when releasing
and tightening the coupling nuts so that the
hoses or angled nipples are not exposed to
twisting strain.
Front axle
The equipment frame must not be
dismantled.
Removal
1. Remove the cutting unit, see “Removing
the cutting unit” on page 105.
2. Jack up and block the machine
3. Remove the front wheels.
Remove the protective cover
6012-098

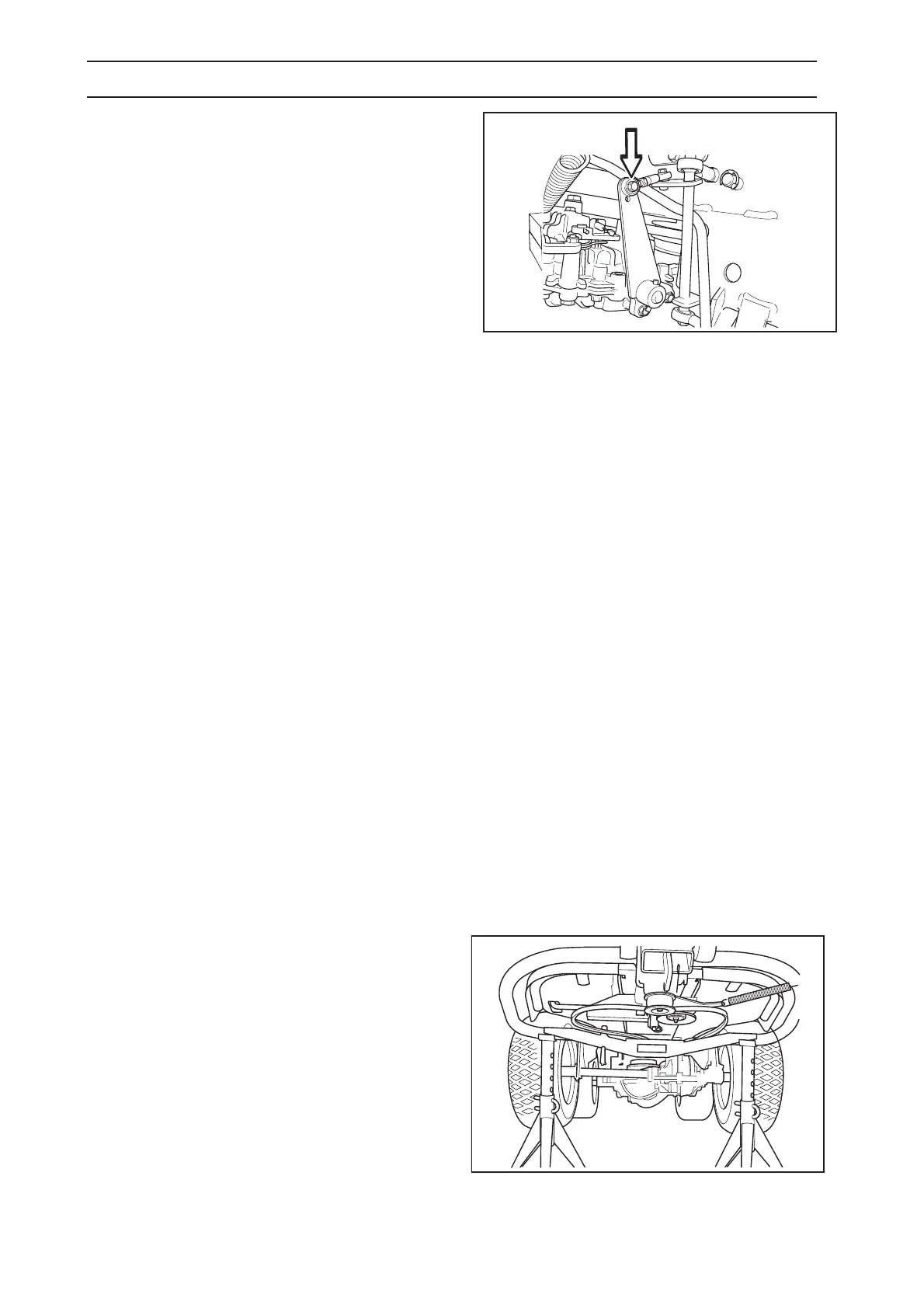

Fitting the pendulum shaft
8009-824
Jacking up the front axle
