English-19

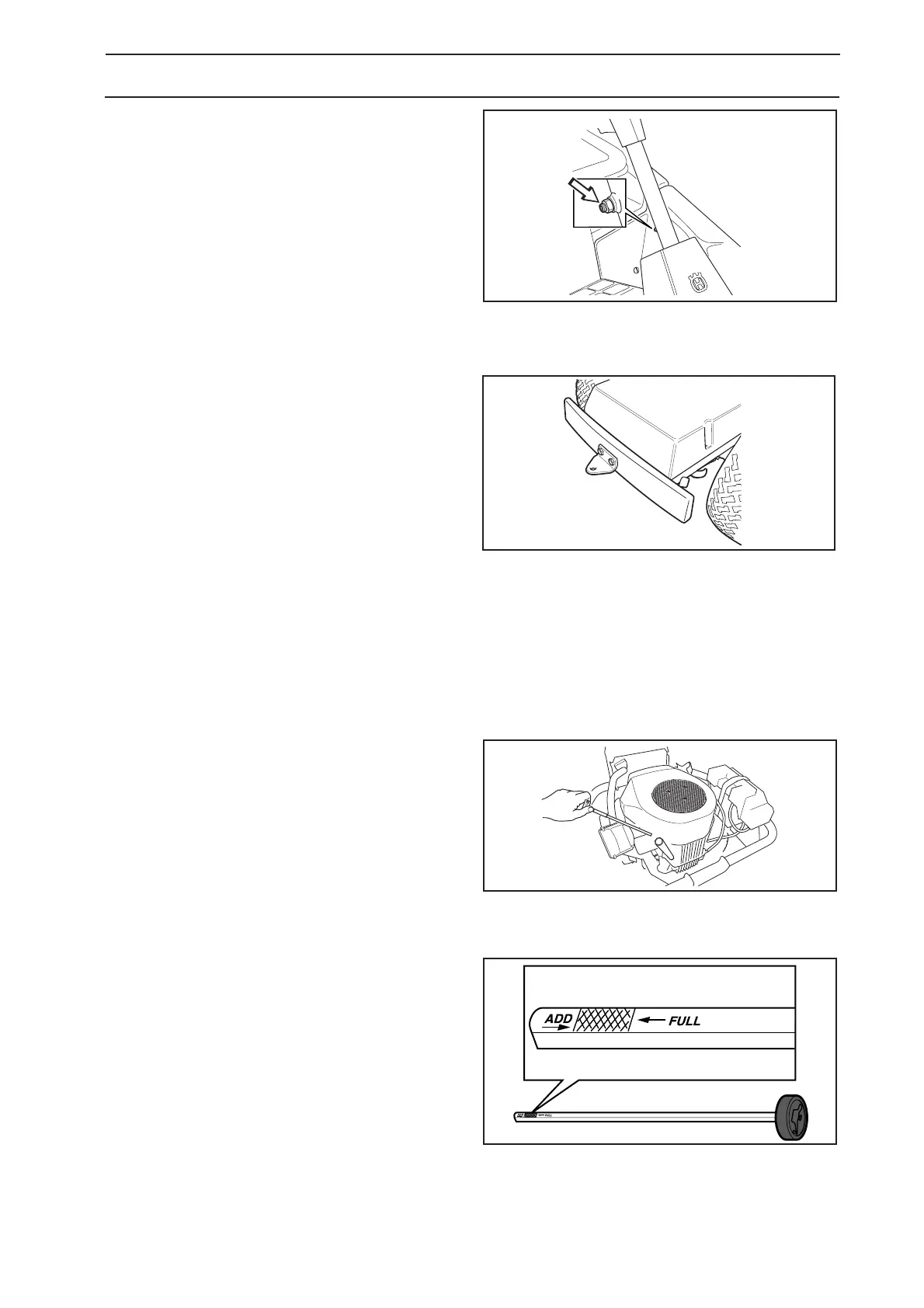

DELIVERY AND DEALER SERVICE
Steering Wheel
• Fit the steering wheel with the steering
rod on the steering column. Choose a
suitable height position.
• Thread the Allen screw into the thread of
the steering column. Work the wheel
and tighten the Allen screw so that it
reaches the bottom of the thread.
• Fit the lock nut to the Allen screw.
Towing eye and counterweight
Fit the counterweight on the rear bumper
when supplied separately.
The tow hook is fitted the “wrong” way at the
factory for transport reasons. Fit the tow
hook to the back of the bumper as illustrated.
Checking the Engine Oil Level
Check the oil level in the engine when the
Rider stands horizontal with the engine
switched off.
Open the engine cover.
Loosen the dipstick and pull it out. Wipe off
the dipstick and fit it again.
The dipstick shall not be screwed down on
Kawasaki and Kohler. The dipstick should be
screwed down Briggs & Stratton.
Pull out the dipstick and read the oil level.
The oil level should be between the markings
on the dipstick. If the level is approaching the
“ADD” mark, top up the oil to the “FULL” mark
on the dipstick.
The oil is topped up through the hole the dip-
stick sits in.
Use engine oil with a viscosity and class as
set out on page 55 to 59.
6010-003
Fitting the steering wheel
8009-112
Fitting the tow hook
8009-158
Dipstick
8009-159
Oil level
