REPAIR INSTRUCTIONS
Adjusting the parking brake, Rider
AWD-machines
Check that the parking brake is adjusted
correctly by placing the machine on a slope
with the front and rear axles disengaged.
Apply and lock the parking brake. When the
machine does not stand still, the parking
brake should be adjusted according to the
following.

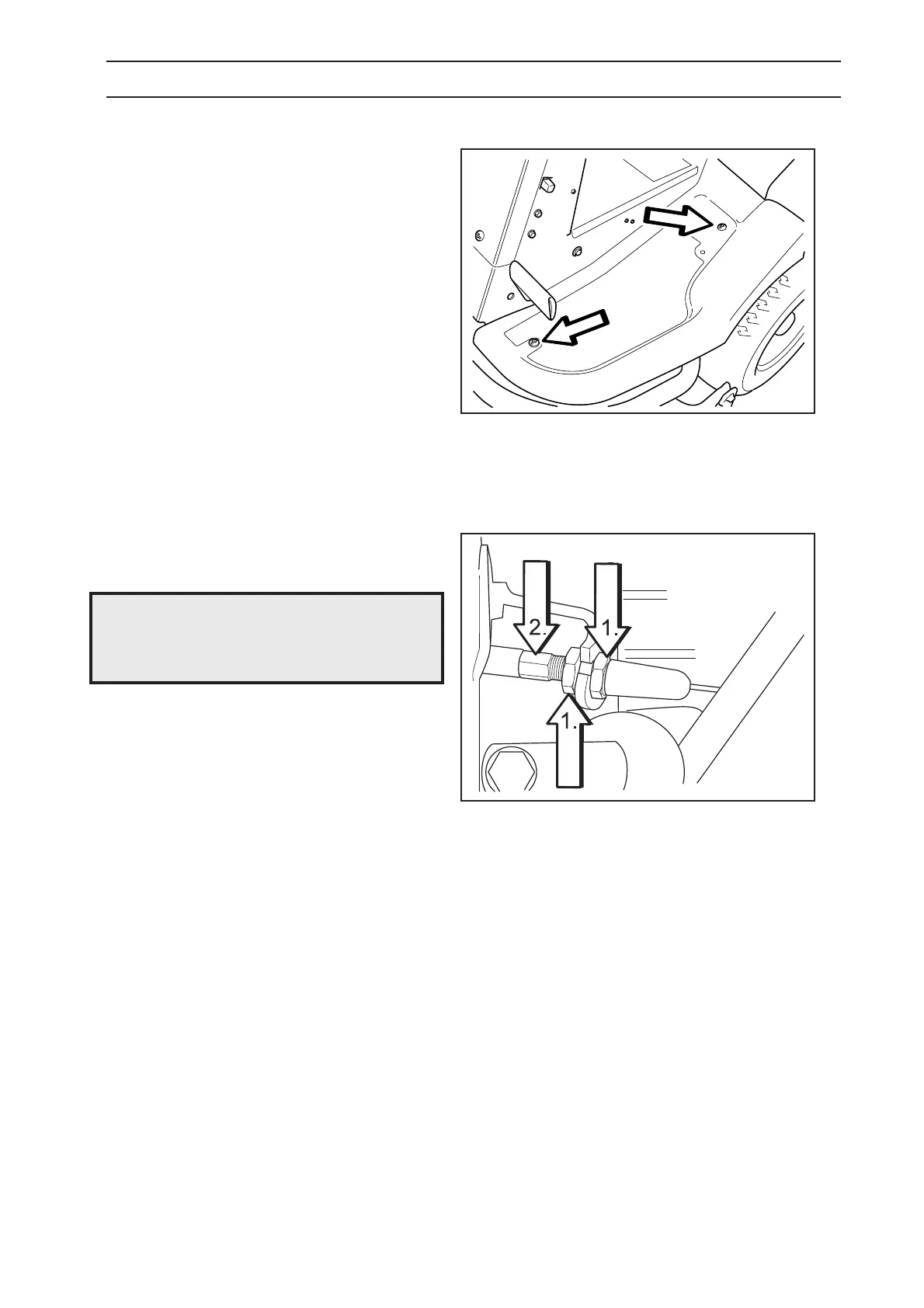

1. Remove the left-hand wing cover.
2. Loosen the locking nuts (1).
3. Tension the cable using the adjuster
screw (2) until the play in the cable is
taken up.
4. Tighten the locking nuts (1).
5. The brake should be checked again after
the adjustment has been made.
6. Assemble the left-hand wing cover.
8009-501
6021-031
WARNING!
A poorly adjusted parking brake
can result in reduced braking
ability.
!
