Husqvarna Rider 16 H User Manual

18 – English
Reparation instructions
10

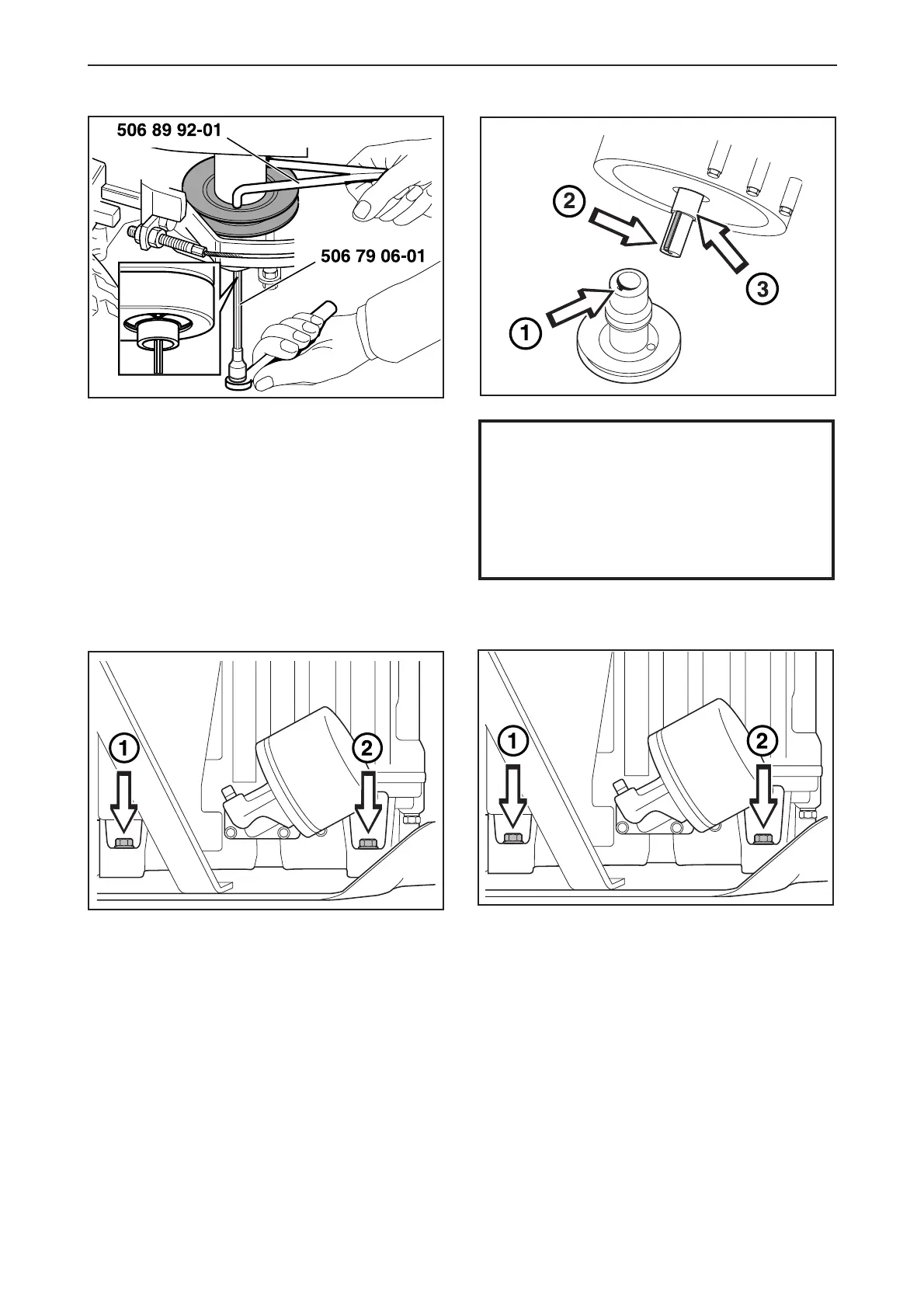

Remove the engine attachments, two on each side
of the engine, and remove the engine from the
mower.
Insert tool no. 506 79 06-01 into the centre of the
engine pulley. Unscrew and remove the socket
head cap screw which holds the pulley and the
engine axle together. Use tool no. 506 89 92-01 as
a holder-on. Remove the pulley from the engine
axle.
IMPORTANT INFORMATION
When installing the engine, it is important
that the pulley groove (1) is in a position so
the outgoing axle key (2) fits into the groove
(see diagram). Also check that both spacing
collars (3) and the key (2) are firmly attached
on the engine axle. Grease the engine axle.
Replacing engine
9
1
Lower the engine and tighten the engine
attachments (two on each side of the engine) with
moment (25 Nm).
