Reparation instructions
• Pull the handle so that the hook guard locks.
• Check that the catch (A) is in its loaded position.
• Lift the unit off of the Rider.
7

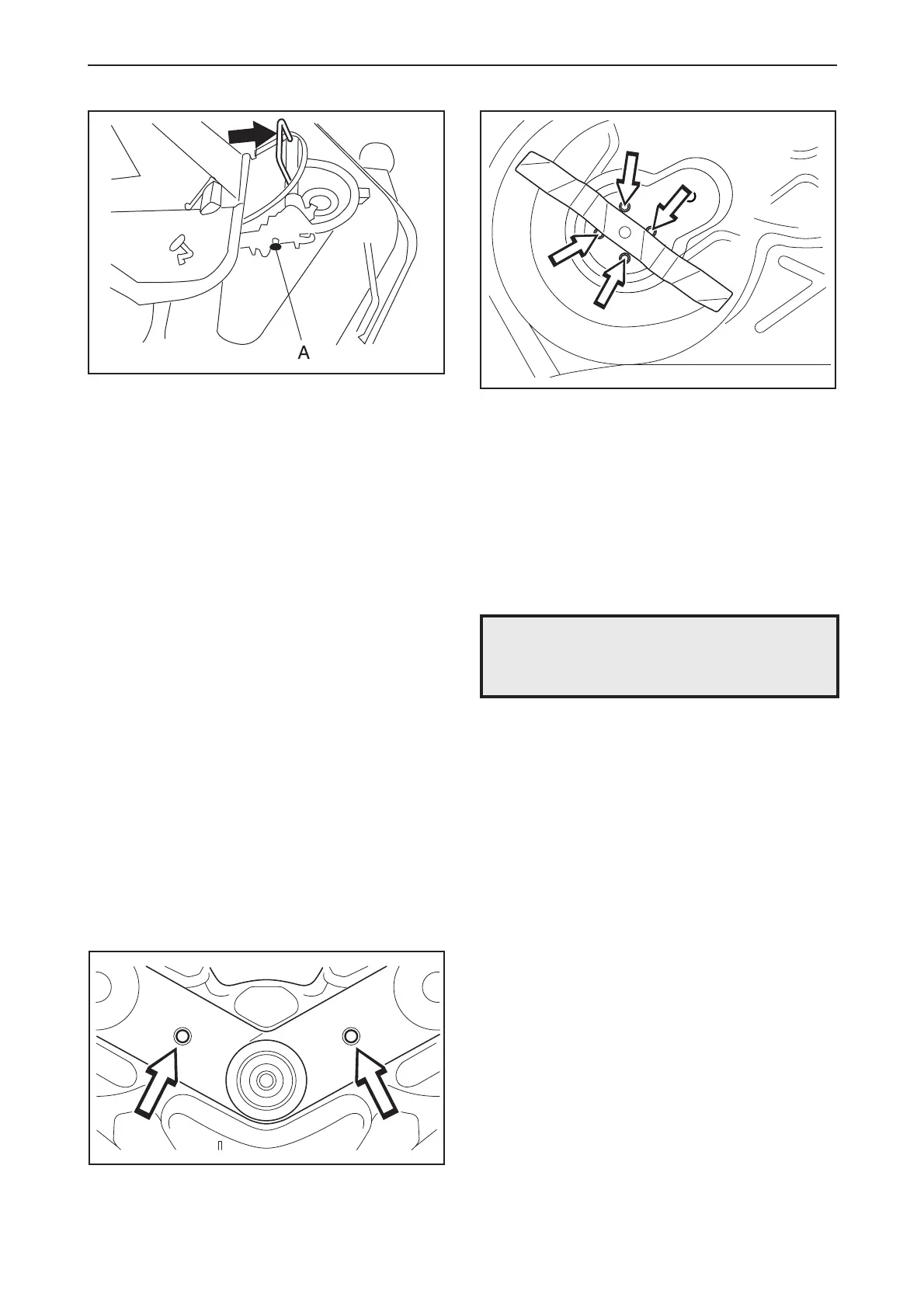

Replacing mowing deck belts
Belt replacement on Bio deck
A Bio deck is driven by two toothed belts that
synchronise the rotation of the blades. The belts
are located under a cover on the mowing deck.
Replace the belts in the following way:
1
• Remove the cutting deck.
• Remove the front pin/bolt from the parallel strut
and swing the strut backwards.
2
Loosen the two bolts holding the protective hood
and then lift off the hood.
3
• Loosen the nuts on the eccentric plate and turn
this away.
• Loosen the four nuts (see diagram) holding the
outer blade bearing enough so that the bearing
can be moved.
• Slide the blade bearing in towards the centre
bearing and pry off the upper belt.
• Repeat the procedure for the lower belt.
WARNING!
Protect your hands by wearing
gloves when working with the
blades.
!
