Husqvarna Rider 16 H User Manual

English – 53
Reparation instructions
1
2

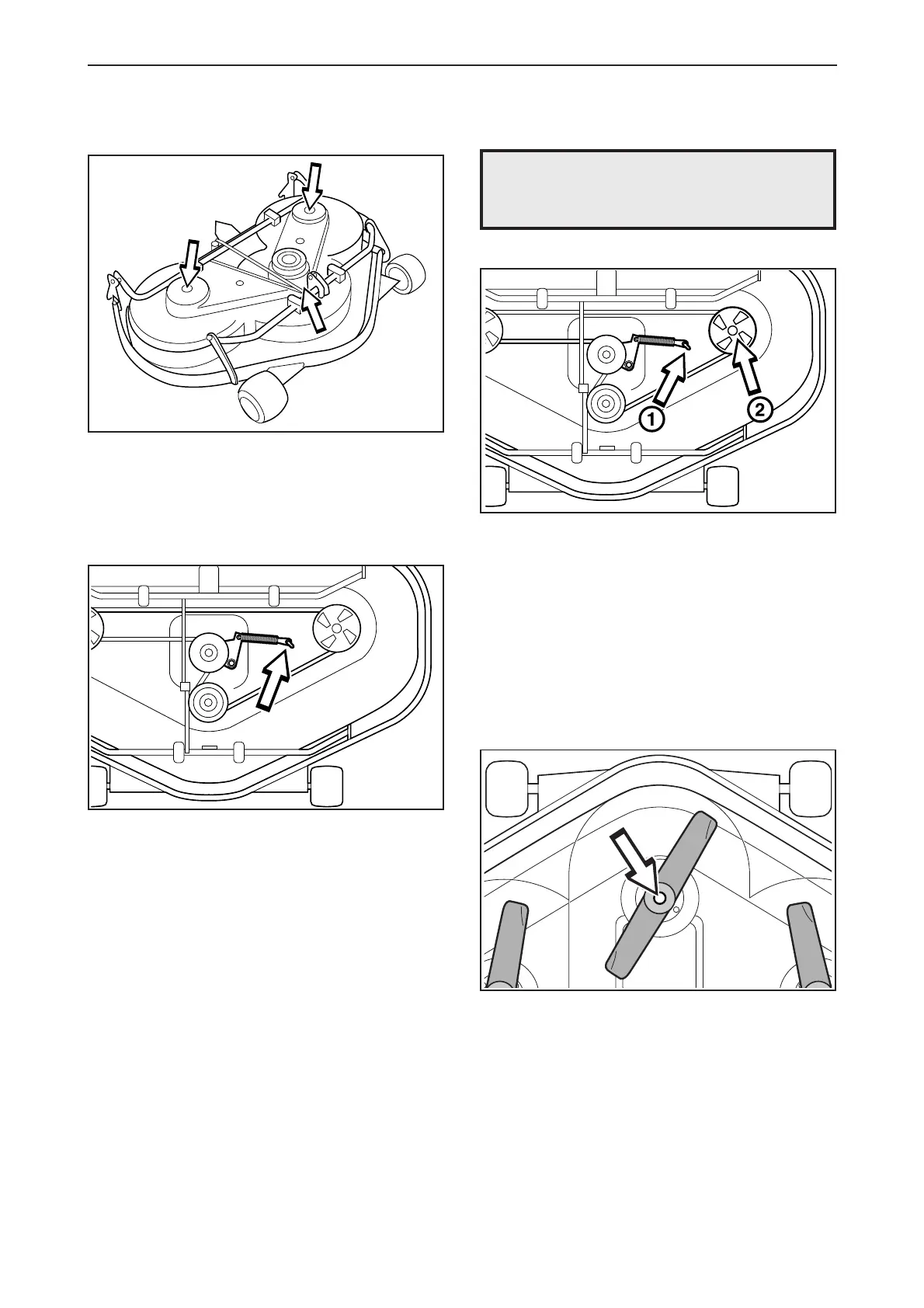

Belt replacement on cutting unit’s with side or
rear ejectors
• Remove the cutting unit.
• Remove the bolt holding the parallel strut and the
two screws on the deck.
Cutting units with side or rear ejectors are powered
by one V-belt. Proceed as follows to replace the
V-belt:
• Loosen the spring that tensions the V-belt and
pry off the belt.
• To fit a new belt, follow the instructions above in
the reverse order.
Removal of blades with bearings
2
Unscrew the screw which holds the blade and
remove the screw, washer and blade.
• Release the spring which tensions the V-belt and
twist off the belt.
• Unscrew the screw which holds the pulley (2)
and detach the pulley, a puller may be needed
for this. Do not lose the key which is found
between the pulley and the axle.
WARNING!
When working with the mowing
deck, use protective glasses and
gloves.
!
