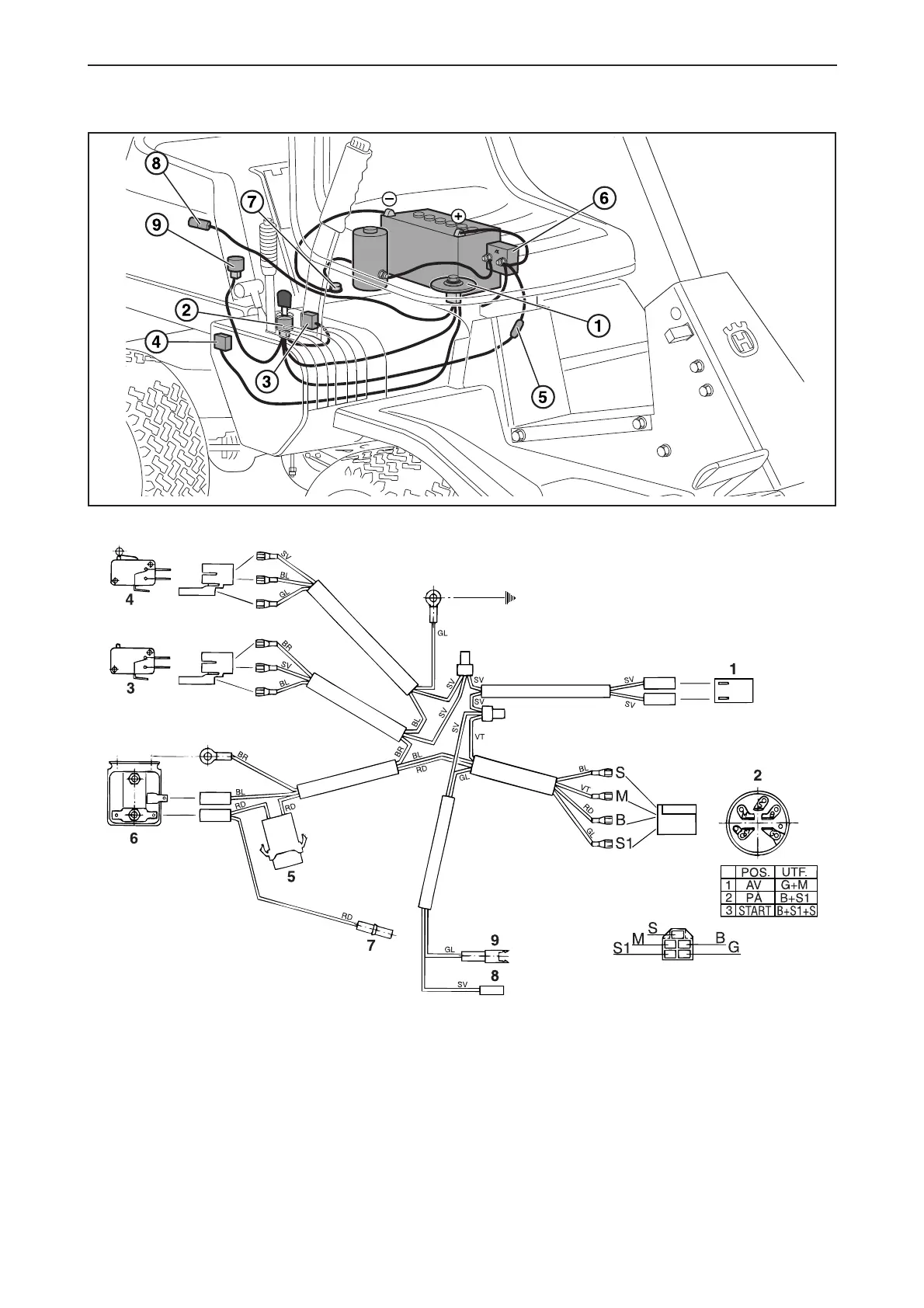

Circuit diagram Rider 13 H, Rider 13 H Bio and Rider 16 H
Electrical system
1. Microswitch, seat
2. Ignition lock
3. Microswitch, lifting lever
4. Microswitch, gear position
5. Fuse 15A
6. Starter relay
7. Engine/charging
8. Engine/stop
9. Engine/fuel valve, not on Rider 13 H/13 H Bio
Key to colour abbreviations in the electrical system
SV = Black
RD = Red
BR = Brown
BL = Blue
VT = White
GL = Yellow, not on Rider 13 H/13 H Bio
