Reparation instructions

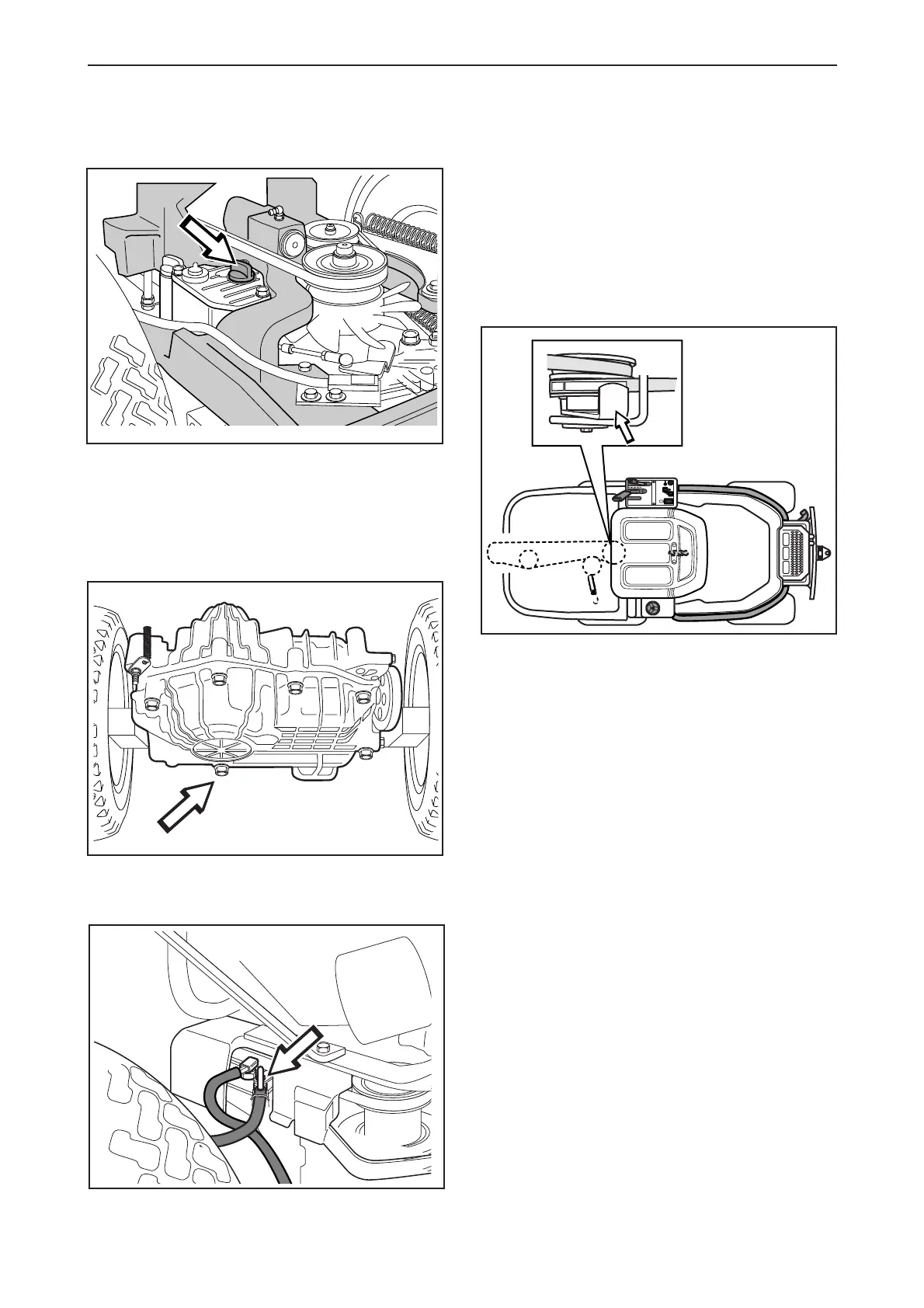

Changing oil – Rider 13 H/13 H Bio and Rider 16 H
The drain plug on transmission K 55 is in the same
position as on K 61.
Changing oil – Rider 14 Pro
K 61, drain plug
K 55, filler hole
K 61, filler hole
Removing the belt
Rider 11, Rider 13 H, Rider 16 H och Rider 14
Pro
Starting point when Removing the belt:
• No unit attached to the Rider.
• The front part of the belt hangs loose.
The entire belt is only dismantled as set out below,
when the snow plough is fitted on the Rider.
1. Loosen the belt guide and support pulley.
2. Loosen the belt tensioning pulley.
3. Prise the belt off the middle pulley and remove
the belt.
Reverse the above sequence to refit the belt.
