H.40 Part. N. 8000 H0368 (09-2008)

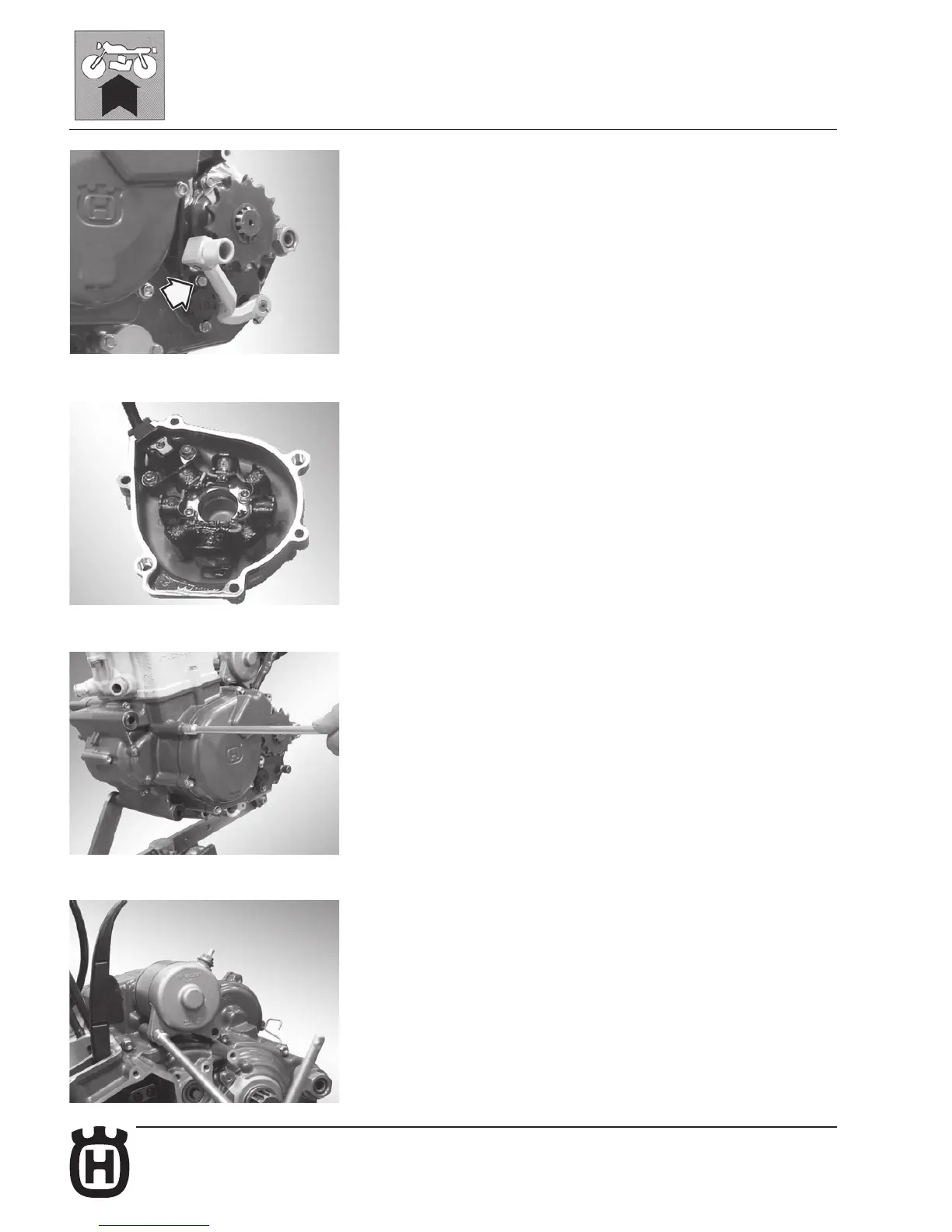

ENGINE REASSEMBLY
Fit a new O-ring and remount the neutral indicator locking the two fastening screws
(6 Nm-0,6 Kgm-4.3 ft/lb+LOCTITE 243).
Reassembly of flywheel cover
Mount the stator plate so its mark and stator cover mark are aligned and tighten the
two stator fastening screws (8 Nm-0,8 Kgm- 5.8 ft/lb+LOCTITE 272) for TC-TXC
and (6 Nm-0,6 Kgm- 4.3 ft/lb+LOCTITE 272) for TE-SMR. Fit the fly wheel grommet
on the crankcase. Tighten the two pick-up fastening screws (6 Nm-0,6 Kgm- 4.3 ft/
lb+LOCTITE 272). Mount the flywheel cover and tightenthe six screws to 8 Nm-0,8
Kgm- 5.8 ft/lb.
Mount the electric starting motor (8 Nm-0,8 Kgm- 5.8 ft/lb).
