M.17Part. N. 8000 H0368 (09-2008)
ELECTRIC SYSTEM, DIGITAL INSTRUMENT
Starter motor
Nominal voltage: 12V
Absorbed power: 450 W
Free running check
Voltage: 11,2 V
Current: 30 A
Speed: 12000 giri/1'
Check under load
Voltage: 10 V
Current: 80 A
Torque: 3,5 Nm - 0,35 Kgm - 2.5ft-lb
2
1

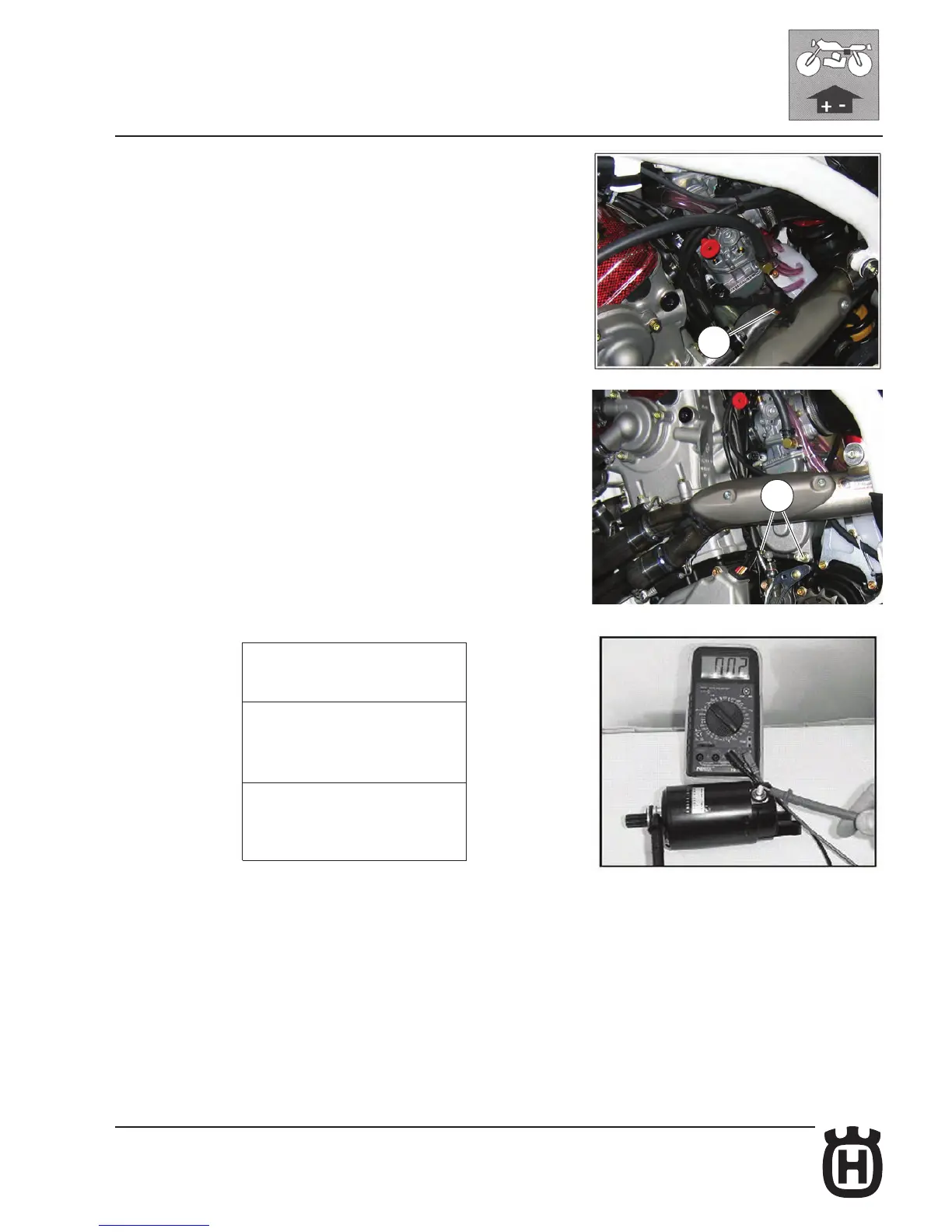

STARTER SYSTEM CHECKS
Starter motor disassembly
Use a 10 mm wrench to remove the nut (1) under the rubber cap and a 8 mm
wrench to remove the starting motor and ground cable screws (2). Remove the
starting motor.
Starter motor check
If a fault has been diagnosed in the starter motor, it is necessary to proceed as
follows with the check:
Connect a tester between earth and the starter motor terminal.
Check that there is continuity between the positive pole and the engine earth. If
there is no continuity, substitute the starter motor. Apply a small quantity of
LOCTITE 243 to the bolts of the starter motor.
