M.3Part. N. 8000 H0368 (09-2008)

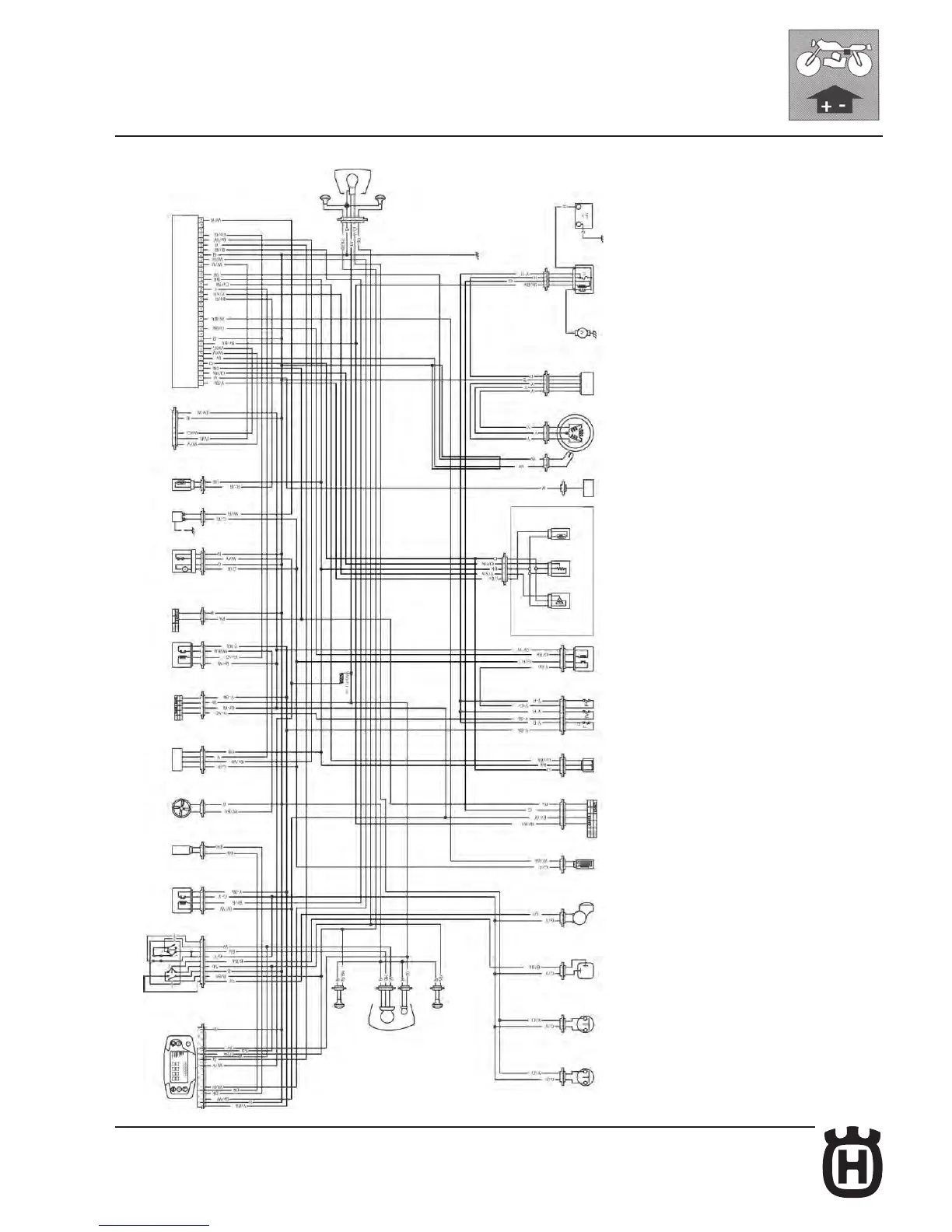

ELECTRIC SYSTEM, DIGITAL INSTRUMENT
Cable colour coding (TE-SMR)
B Blue
B/Bk Blue/Black
Bk Black
Br Brown
Br/B Brown/Blue
Br/Bk Brown/Black
Br/R Brown/Red
Br/W Brown/White
G Green
G/Bk Green/Black
G/R Green/Red
G/Y Green/Yellow
Gr Grey
Gr/Bk Grey/Black
Gr/G Grey/Green
O Orange
O/Bk Orange/Black
Pk Pink
R Red
R/Bk Red/Black
Sb Sky blue
V Violet
W White
W/B White/Blue
W/Bk White/Black
W/G White/Green
W/R White/Red
W/V White/Violet
W/Y White/Yellow
Y Yellow
Y/Bk Yellow/Black
Y/Br Yellow/Brown
Y/Gr Yellow/Grey
Y/O Yellow/Orange
Y/Sb Yellow/Sky blue
Y/R Yellow/Red
