I.14
Part. N. 8000 H0368 (09-2008)
FRONT SUSPENSION
23
83
33
43
63
73
83
53
OVERHAULING AND MODIFYING THE CARTRIDGE AND BOTTOM VALVE
SETTING

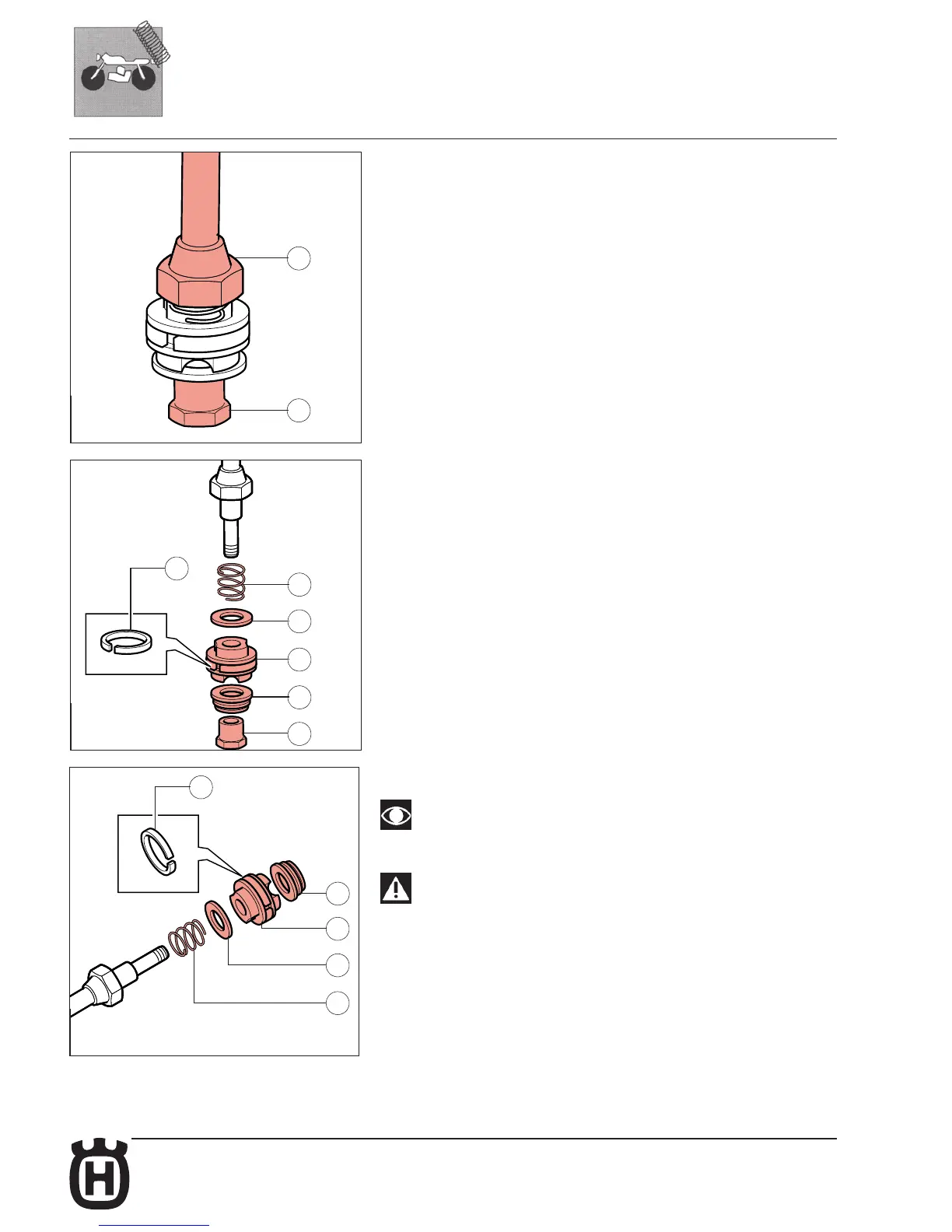

CARTRIDGE OVERHAULING (REBOUND BRAKING)
Dismantling
• CLAMP IN THE VICE THE ROD ( 32 ) MILLED AREA.
• Unscrew the nut ( 38 ) using a 12 or 13 mm spanner, according to the mounted nut.
• Remove the nut ( 38 ), the washer or the washers’ stack regulating the rebound
( 37 ), the piston ( 36 ) complete with the segment ( 35 ), the washer ( 34 ) and the
spring ( 33 ), following this order.
Assembling:
The washers ( 37 ) and the piston ( 36 ) are the ones causing the rebound
braking. It is possible, if needed, to modify the fork’s behaviour during
the rebound phase, by replacing the washers ( 37 ) and the piston ( 36 ) with
other components having different characteristics.
WARNING
Utilizzare solamente lamelle e pistoni originali Marzocchi, non modificare i
componenti.
• Se necessario sostituire il segmento del pistone (35).
• Inserire, nell'ordine, nella parte terminale dell'asta la molla (33), la lamella (34), il
pistone (36) completo di segmento (35), la lamella o le lamelle che regolano
l'estensione (37).
63
73
43
33
53
