M.30 Part. N. 8000 H0368 (09-2008)
ELECTRIC SYSTEM, DIGITAL INSTRUMENT
HEADLAMP, TAIL-LAMP (TE-SMR)

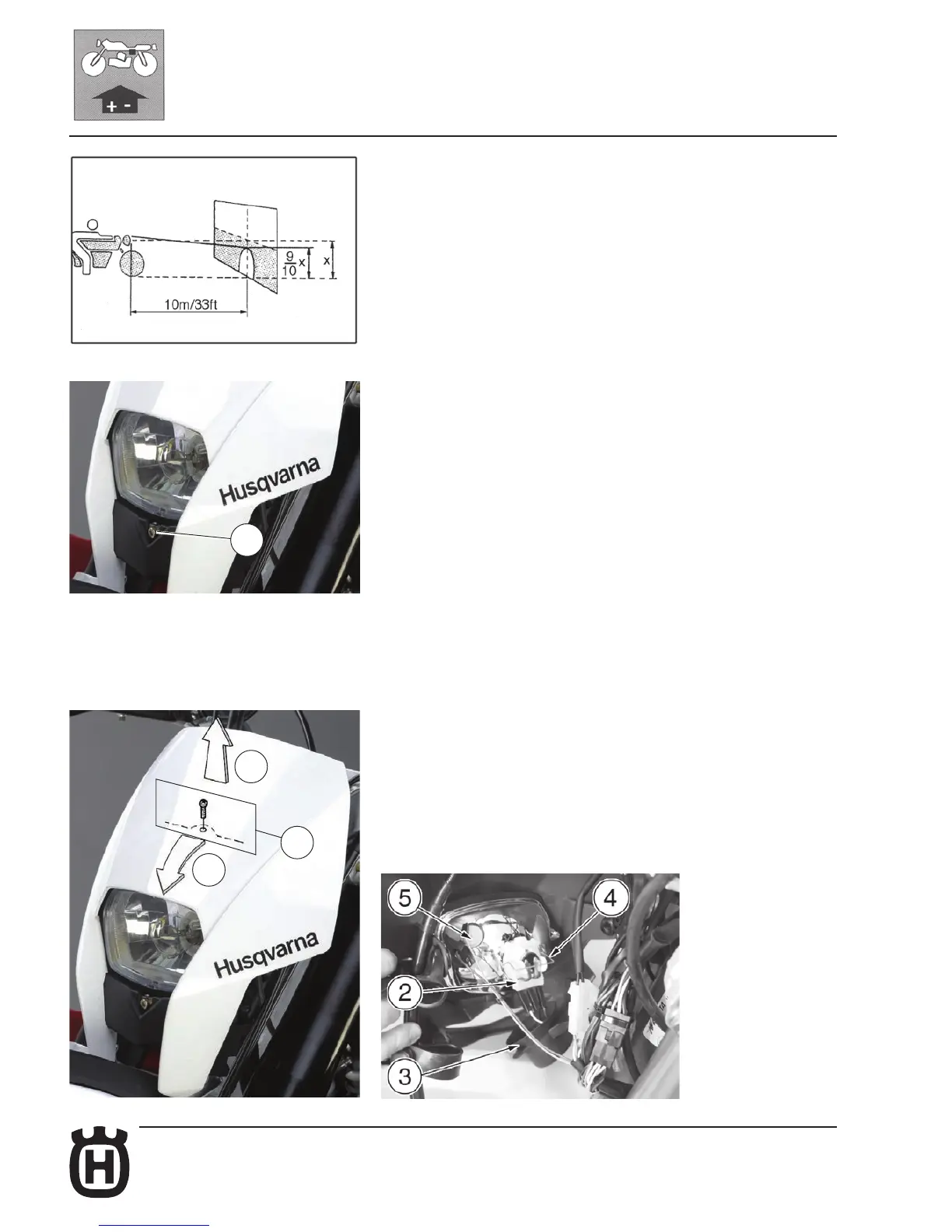

Headlamp adjustment
The front headlamp is fitted a dipping bulb for main and dipped beams and a pilot/
side lamp bulb.
Particular care should be taken to adjust the headlamp beam; adjust as follows:
- position the motorcycle at 33 ft from a flat wall;
- check that the bike is on a level surface and that the headlamp axis is at right
angles to the wall;
- the bike should be in a vertical position;
- measure the distance from the ground to the centre of the headlamp lens and
then mark a cross at the same height on the wall;
- switch on to dipped beam; the upper limit of the beam should be at a height which
is so greater than 9/10 of the height from the ground of the centre of the headlamp.
Adjust the headlamp aiming by turning screw (A) to lower or lift the high beam.
Headlamp bulbs replacement
To gain access to the healamp bulbs, proceede as follows:
- remove the upper fastening screw of the the headlamp carrier to the instrument
panuel support (A);
- push forward the headlamp carrier (B) and pull it towards the high (C) in order to
uncouple from the two lower supports.
- remove the headlamp carrier;
- remove the two filaments bulb connector; (2) and the boot (3);
- release the bulb holding spring (4) and then the bulb itself.
To replace the parking light bulb (5) extract it from the inside cover.
After replacement, reverse operations for reassembly.
1
A
C
B
