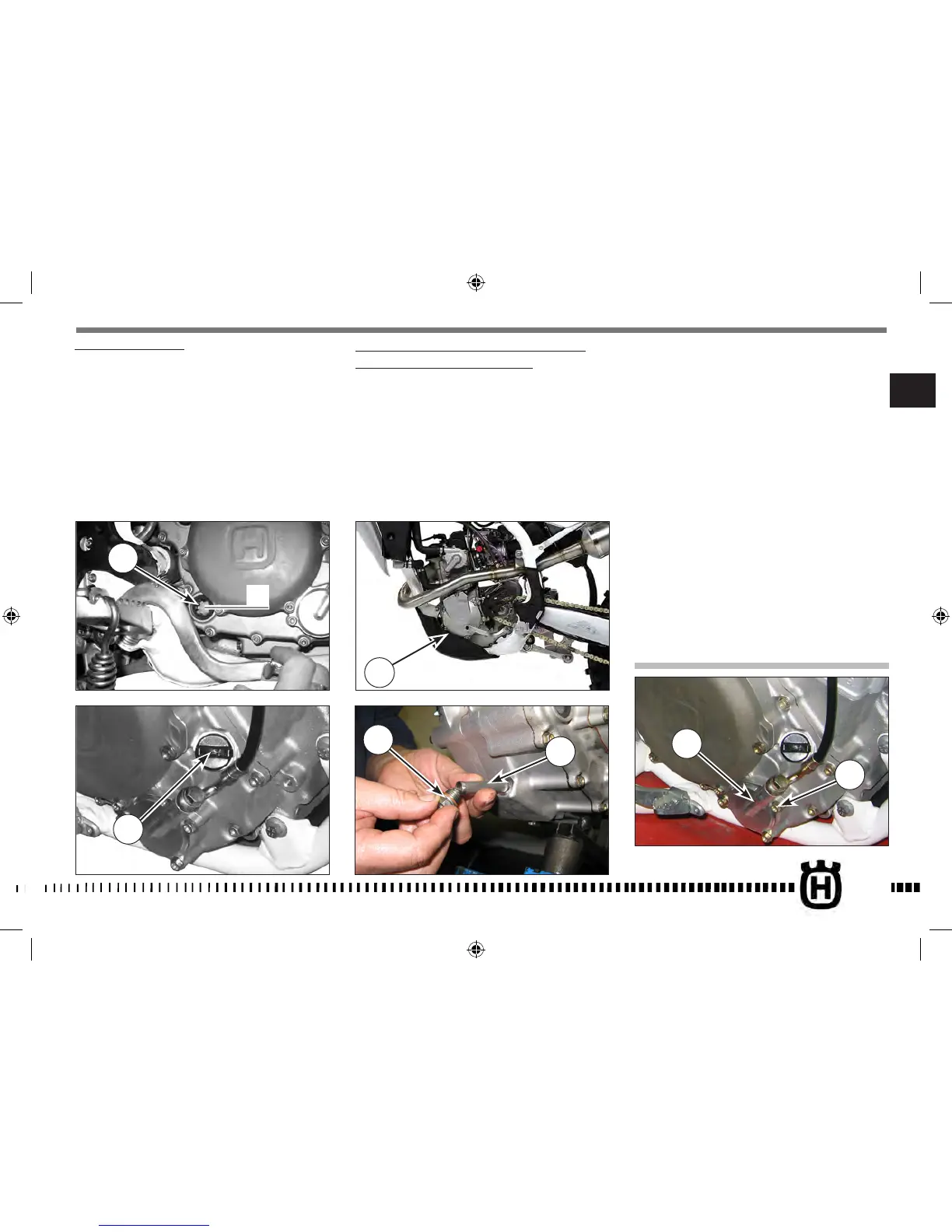

ENGINE OIL REPLACEMENT AND BAG FILTERS-FILTER
CARTRIDGE CLEANING OR REPLACEMENT
WARNING*: Be careful not to touch hot en-
gine oil.
Drain the oil with WARM ENGINE; proceed as follows:
• remove oil filler cap (2);
• remove the engine lower guard (A);
• place an oil drain pan under the engine block;
• Remove the oil drain cap (3), the mesh filter (4) and drain
the old oil;
• Clean the mesh filter with benzine;
• in order to replace the filter cartridge (5), unscrew the three
fastening screws then the filter cartridge cover (6).
Once the oil filters have been cleaned-replaced, fit the parts
back in, in the opposite sequence to the disassembly, and pour
in the prescribed amount of oil, as listed in the LUBRICATION
TABLE on page 8.
CHECKING THE OIL LEVEL
Keeping the motorbike level and in a vertical position, check the
oil level through the inspection (1) window on the right crankcase.
Make sure the level is in between the MIN and MAX notches.
To fill up, remove the filler cap (2).
Note*: Have this operation made with war-
med-up engine.
WARNING*: Be careful not to touch hot en-
gine oil.
