ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

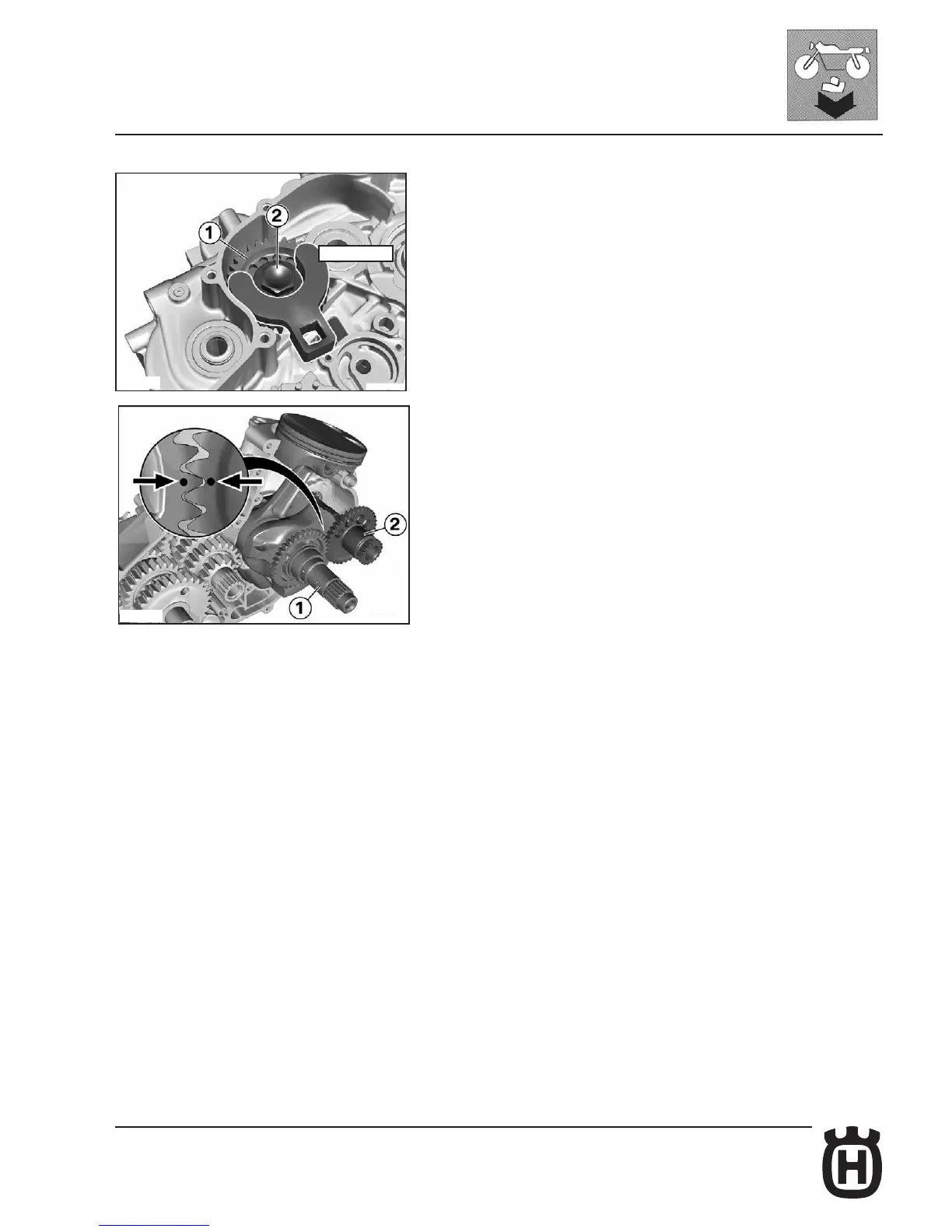

Control gear disassembly
• Lock control gear (1) using tool (N. 8000H5010) to prevent it from moving.
• Remove screw. Caution: LH thread (2).
• Remove control gear (1).
Remove crankshaft and countershaft
• Move crankshaft (1) and countershaft (2) reference marks (arrows) so as to
make them match.
• Remove countershaft and countershaft at the same time.

Husqvarna TE449 Specifications

General

Bore x Stroke	98 mm x 59.6 mm
Compression Ratio	12.0:1
Ignition	Digital CDI
Transmission	6-speed
Front Brake	Single disc, 260 mm
Front Tire	90/90-21
Rear Tire	140/80-18
Starter	Electric
Final Drive	Chain
Ground Clearance	320 mm
Engine Type	Single cylinder, four-stroke
Fuel System	Electronic fuel injection
Front Suspension	Kayaba 48 mm fork
Rear Suspension	Kayaba shock absorber
Rear Brake	Single disc, 240 mm
Fuel Capacity	8.5 liters
