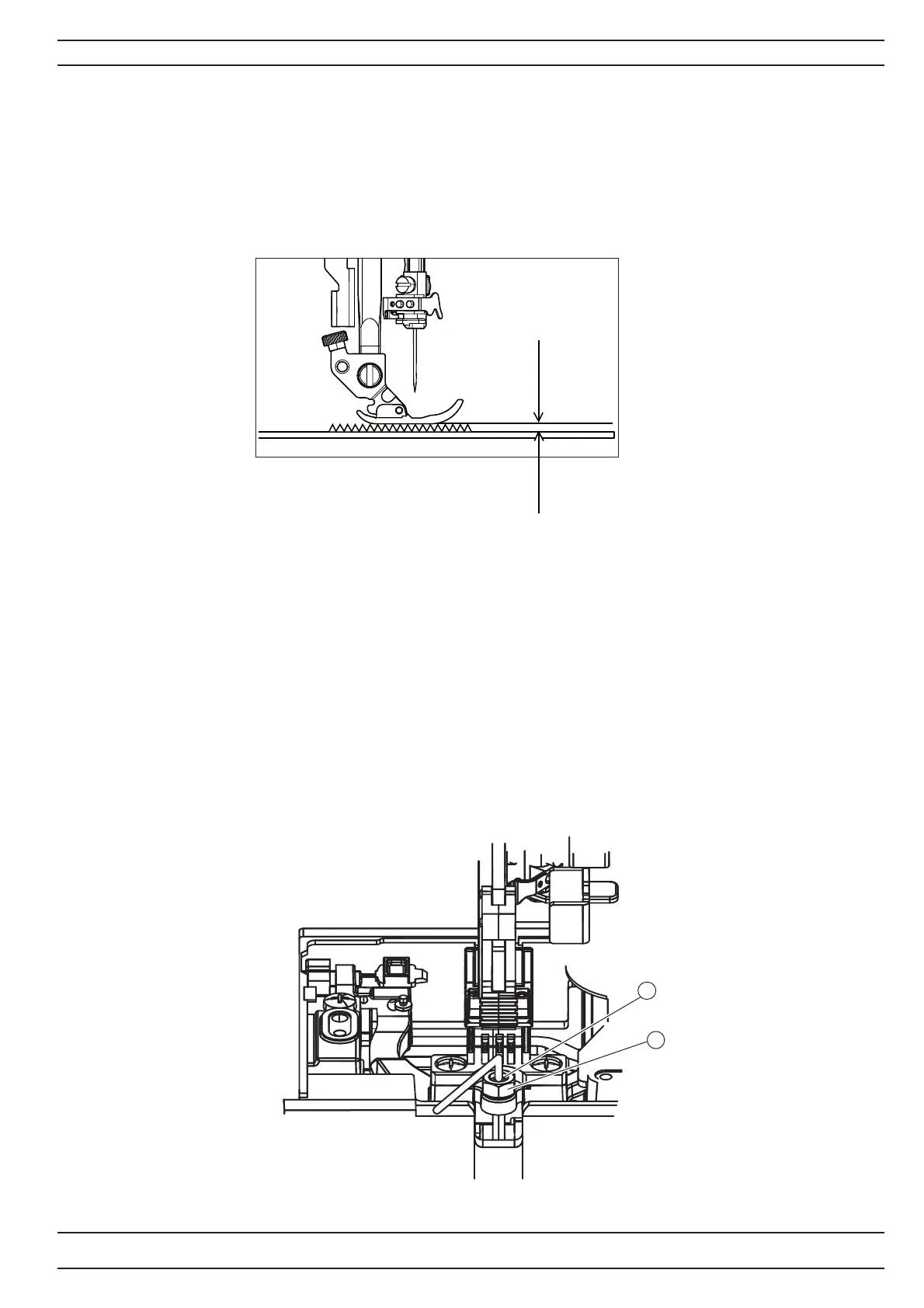

10.Feed dog height
Check
1.Bring the feed dog to its highest position.
2.The top of the feed dog should be 0.9-1.0 mm above the needle plate.
Check with setting gauge 63-112 120 08/000.
Adjustment
1.Bring the feed dog to its highest position.
2.Remove needle plate
3.Loosen the nut (A).
4.Turn the adjusting screw (B) so that the feed dog becomes between 0,9 mm to 1.0 mm above the needle
plate.
-Turn clockwise = the feed dog will be raised.
-Turn Counter-clockwise = the feed dog will be lowered.
5.Tighten the nut (A).
6.Attach the needle plate.
Settings
0.9-1.0 mm
b
a
