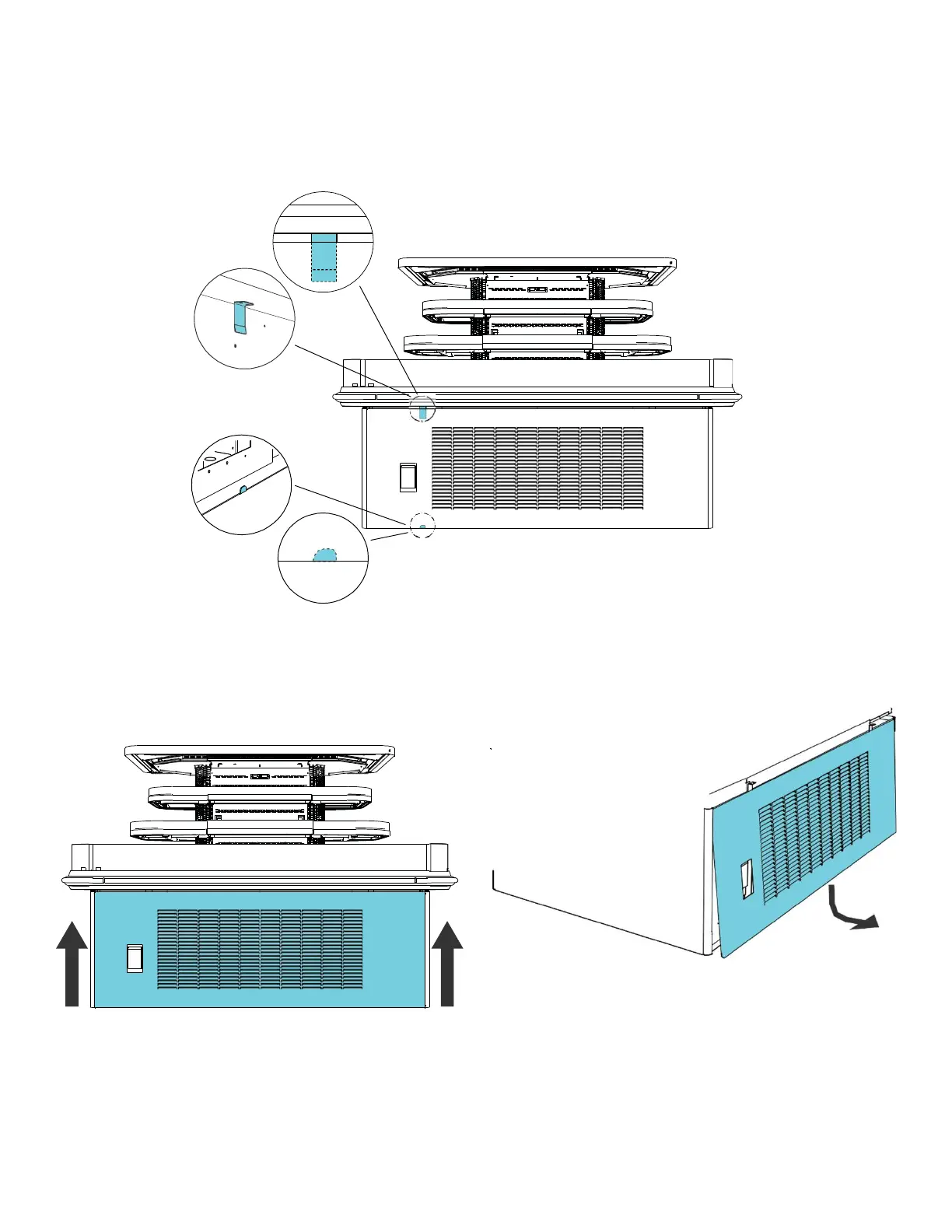

A
B
RETAINING CLIPS
DETAIL A
DETAIL B
RESTING HOOKS
Step 1
Raise body panel in upward motion to lift bottom slots from
resting hooks at bottom of case.
Step 2
Pull body panel outward clearing over lower resting
hooks and down to extract slots from retaining clips.
Attach Body Panels
To attach the body panels back onto the merchandiser fol-
low the steps in reverse order.
13
Body Panel Removal
The merchandiser’s body panels are designed with slots located on top and bottom. The body panels are held in place by
retaining clips located at the top of the case which the slots slide into and resting hooks located at the bottom of the case
which the slots rest onto.
Follow the below steps in order to remove body panels and vice versa to re-install to the merchandiser.
