Electrical
Conduit

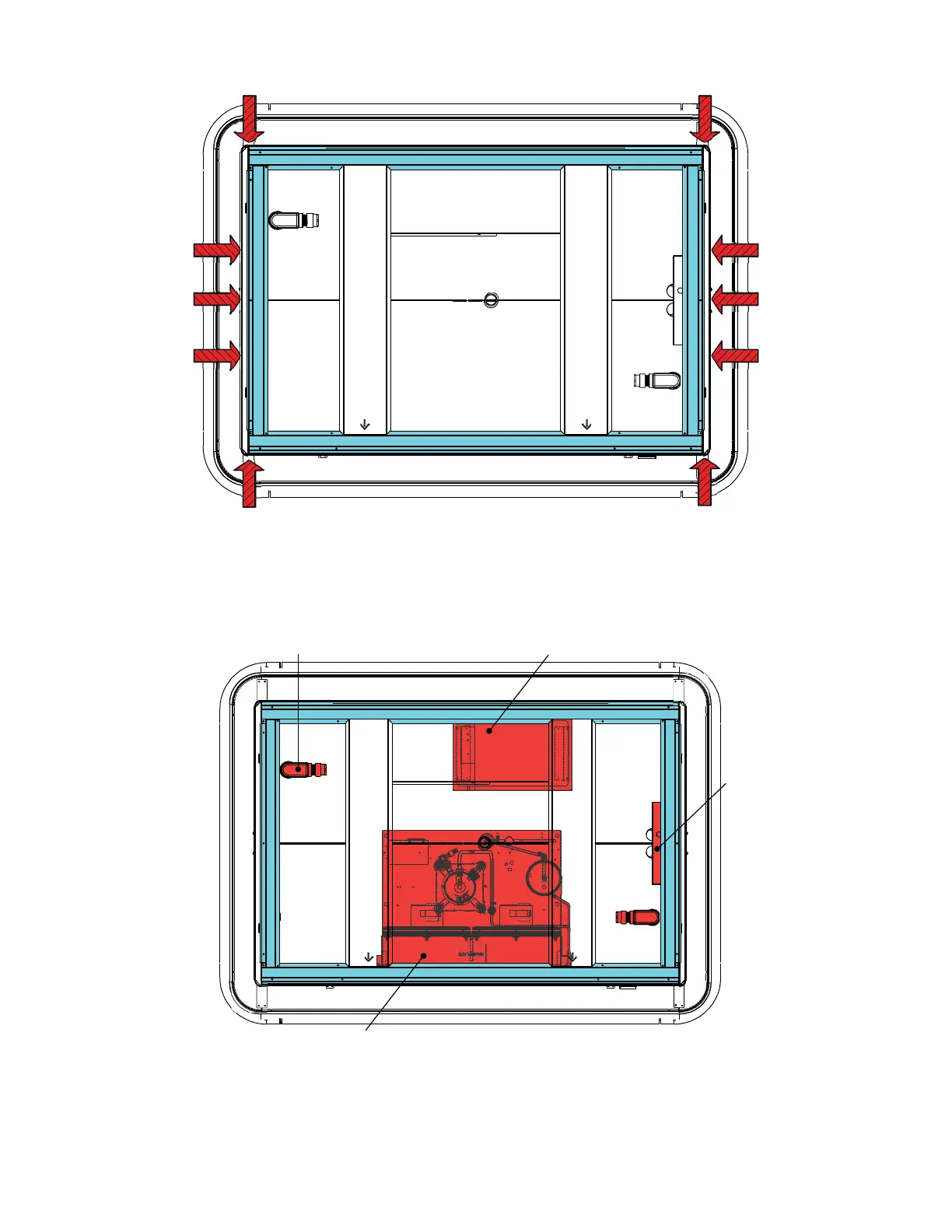

8. While using J-Bars, use the specified set points to support the case based of the size of dollies being utilized.
• Raise one end of the case first.
• One J-Bar is usually sufficient to lift the case, use multiple J-Bars at specified lift zones if one does not satisfy the
safe lift of the merchandiser.
• Place Dollies and chock wheels before lifting the other side. Be sure that the dollies are evenly spaced in order to
carry weight of the case
Evaporator
Pan
Drain
Refrigeration
Condensing
Unit
9. Avoid all contact when lifting or transporting merchandiser in order to prevent any damage to the listed critical refrig-
eration and electrical components.
15
Lifting Instructions (Cont’d)
Note: Location of
component will
vary by model
