Page 19

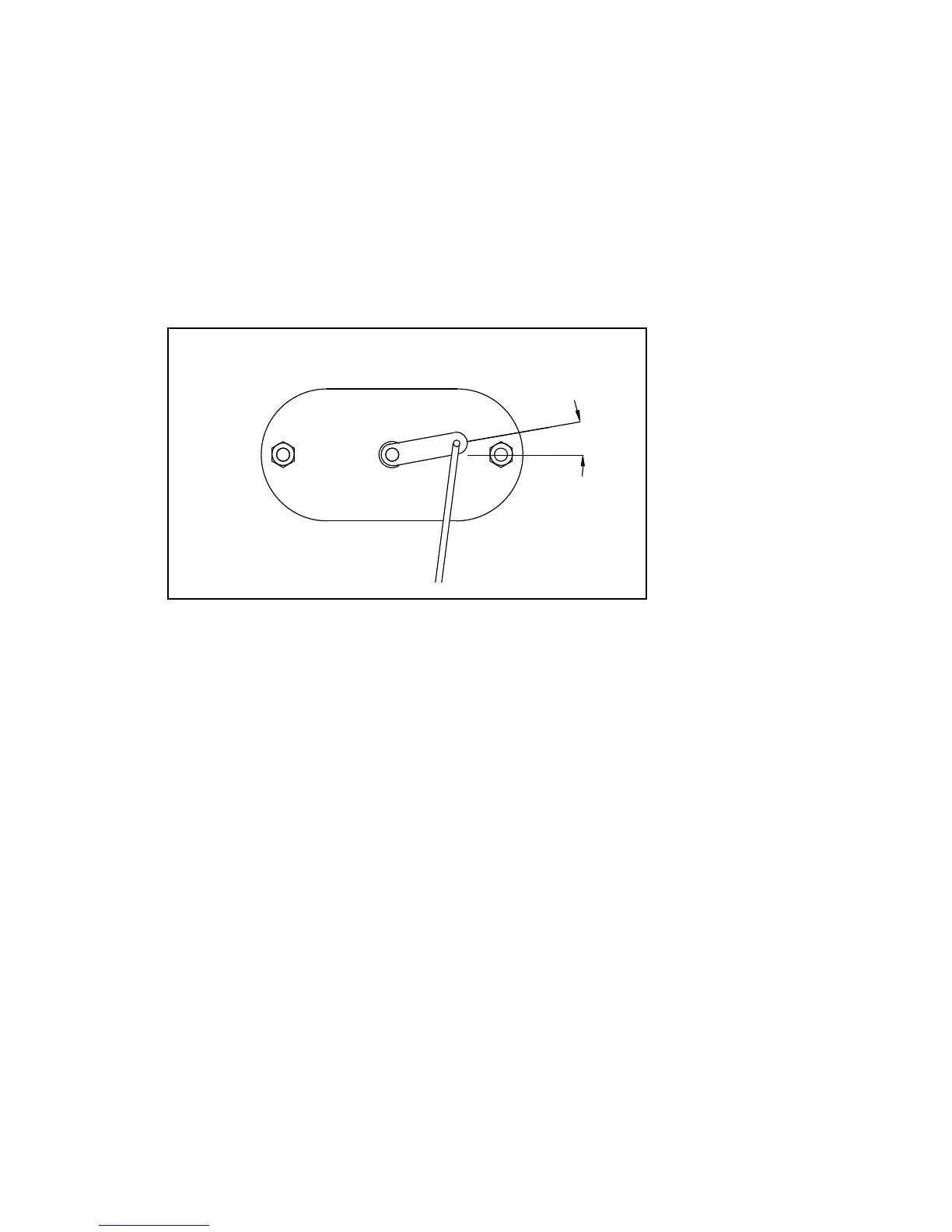

Automatic Control (Drawing G)
Lift off the rear panel. The starting point of the control arm should be checked. The
angle of the control arm on a cold stove is about 10° above horizontal.
It should move easily and bounce when you push it, no matter if the stove is cold or
hot. As the temperature rises and falls it must move smoothly. The slide gates must
be dry and clean and slide together unhindered. Control bars and slide gates may
need to be lubricated with WD40 (do not use oil).
10°
G.
4. Instructions for use
Ash Drawer
The ash drawer located below the fuel door is designed to make cleaning easier by
containing the ashes in a removable drawer. Replace the gasket as necessary to
ensure a tight seal.
Caution
Do not operate the stove with the ash drawer open or ajar, as this will produce
extreme temperatures within the stove (over-firing) and could result in a house fire.
Damage caused from over firing is not covered under the manufacturers limited
warranty. It will also clog the automatic control with ash and prevent it from working.
Ash Grate
Above the ash drawer, located in the floor of the firebox is a rotating ash grate to
facilitate transferring ashes from the firebox into the ash drawer. To operate this grate,
