Page 7

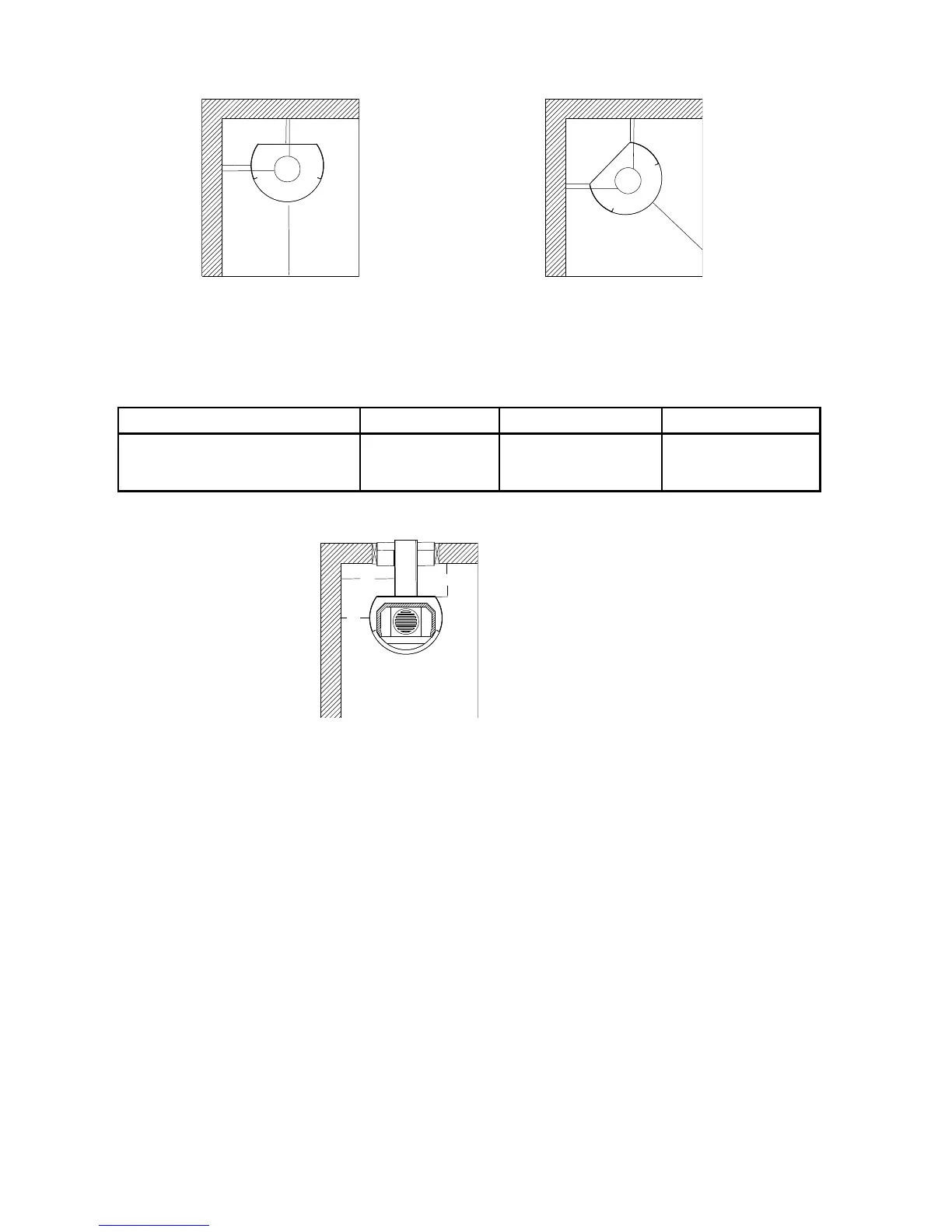

Combustible Wall Clearance for rear vent installation
If the stove is to be placed at side and back walls of combustible materials the
following clearances to combustible materials must be kept.
Wood-burning stove model A
B
C
All models
365 mm
150 mm
248 mm
14"
6"
10"
Refer to the chimney connector manufacturer’s instructions concerning installation of
listed connector pipe, wall thimble and chimney.
Draft Requirements
HWAM Monet is only one component of the total system. The venting system is equally
important for achieving the required flow of combustion air to the firebox and for safely
removing unwanted combustion by-products from the appliance. If the venting system’s
design does not promote these ends, the system may not function properly. Poorly
functioning venting systems may create performance problems as well as be a safety
hazard (i.e. .an oversized chimney may result in less than optimum performance.
Installations into a large, masonry chimney may require a liner to improve performance).
A draft test should read greater than .04" W.C. (Inches Water Column) and less than 08"
W.C.
Fig 2
A
B
D
E
G
C
C
F
F
G
Fig 3
B
C
A
