Page 16
3. Check the loose parts
Before the stove is installed, you must ensure that all loose parts are fitted correctly,
especially the baffle plate #9.
Drawing B1:HWAM Monet
Drawing B2:HWAM Monet H with cooking section
These numbers correspond to the numbers on the drawing on the opposite page.
1. Side plates ( 1-5 see the drawing below opposite)
2. Smoke shelf. Must be placed on the rear edge of the Skamol.
3. Bottom plates
4. Front plate
5. Back plate
6. Loose heat shield under the ash pan. This can be used as a lid when the ash pan is
removed for emptying.
7. Cover plate. Should always cover the grate.
8. There is a drawer with a basket for kindling in HWAM Monet with drawer, HWAM Monet
H with drawer.
9. Baffle plate: The HWAM wood-burning stove has one baffle plate that must be
installed in the upper firebox. When in the proper position, the rear edges of
the baffle plates should touch the back wall of the firebox. See the mainte-
nance section of this manual for additional information on removing baffle plates
for cleaning and for drawings of fire box inclusive of baffle plates of the stove.
The baffle plate Is hung on 3 hooks under the top plate in Monet H. The front,
middle hook has an extra bent flap as transport security. This flap however is to
be removed before mounting the stove. Use a screwdriver to do this. In stoves
with cooking section, the baffle plate is hung under the cooking section.
10. Rear smoke outlet. At the factory this is sealed with a cast cover plate, and an internal
cover plate. The smoke outlet is therefore hidden behind the plate.
11. Removable rear plate, covering automatic controls. This must always be mounted if
the stove is placed next to a combustible wall
Cover plate
Your HWAM wood-burning stove is supplied with a loose cover plate for the shaking
grate. .This is a 3 mm thick iron plate. .It is placed on top of the shaking grate and
prevents the embers from falling into the ash pan. The cover plate is raised approx. 8
mm above the grate, thus ensuring that the automatically controlled primary
combustion air is distributed evenly at the base of the combustion chamber.

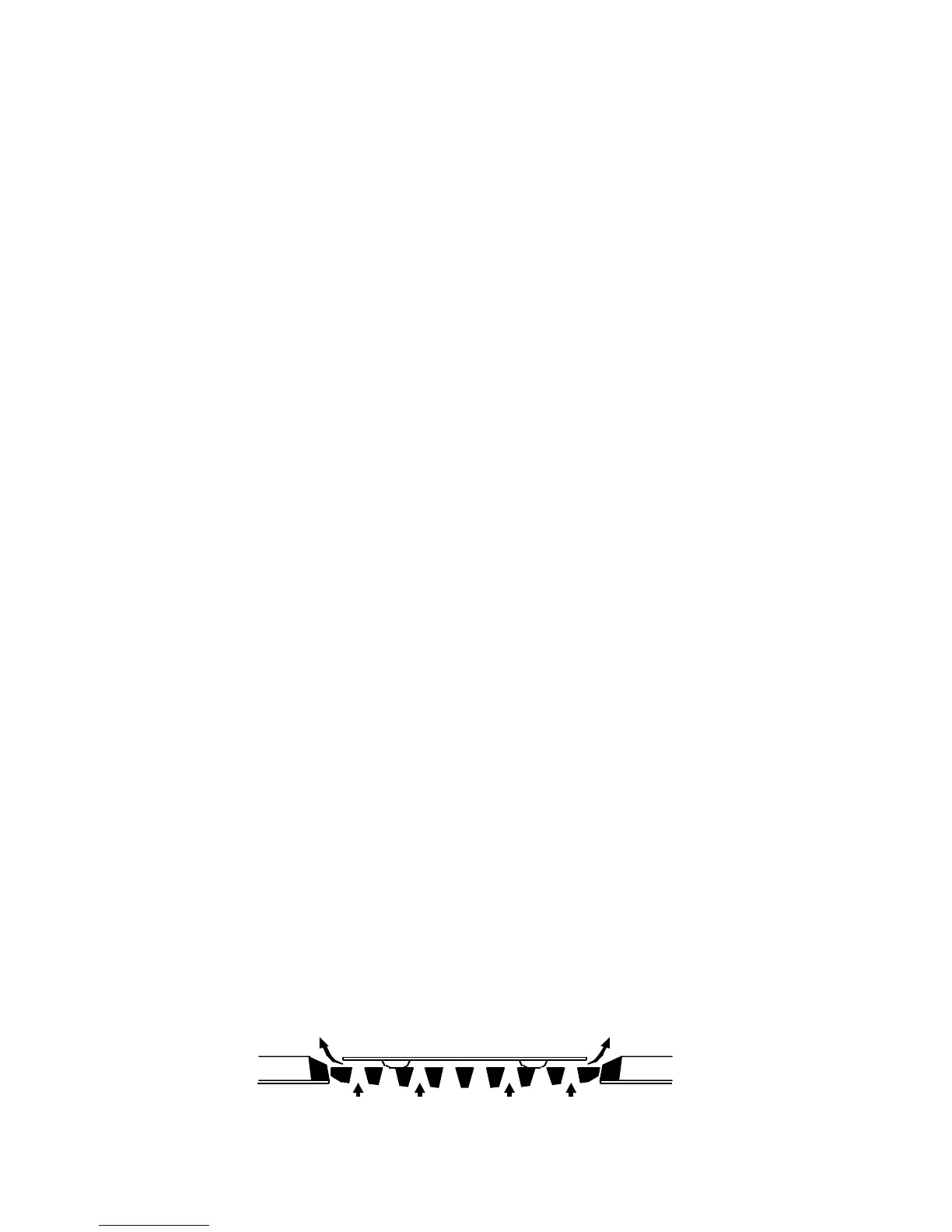

Cross section view of cover plate and shaker grate
