Installation and Maintenance Manual
2
Available Models and Features
Features:
S Simple & Reliable Hydraulic Design
No gearbox, belts, linkages or clutches
to maintain
S Design Rate: 2000 cycles per day
S 5-year Limited Warranty
S Heavy Duty Components
¾ HP motor handles arms up to 36’ in
length
S Anti-corrosion Finish
Entirely electroplated, then coated with
a high gloss powder paint finish. The
(-6 & -8 models are galvanized and
include a stainless steel cover)
The Smart Touch Controller (Standard)
This is the brain of the all Hy-Security’s automatic operators. Truly high technology, but is also very
rugged to reliably serve in the harsh environments that exist in the real world. The Smart Touch Controller
is also very smart and can quickly be configured by an installer or user to adapt to about any functional
requirement of a specific site. All system settings are performed with the use of just four programming
buttons and an LCD display. The Smart Touch Controller has no switches of any type to set. An RS232
port is for external communication is standard. The system also has a real time clock and an EEPROM to
record system events. The log of events can be downloaded from the RS232 port with a PC computer or a
PDA with the Palm OS. Our optional vehicle detector modules set a new industry standard by
communicating a host of valuable performance data to the microprocessor in the Smart Touch Controller
via a serial data stream, allowing user-friendly diagnostics.
DC 24-Volt UPS Operators (Optional)
These gate operators function from 24 Volts DC all of the time to achieve a true UPS system. Our
Uninterruptible Power Supply is the most certain way to know that your gate will work when the AC
power fails. This system features fully sealed maintenance free batteries in a separate insulated and
ventilated enclosure. This two-battery system provides at least 1,000 full open & close operations in the
event of AC power loss.

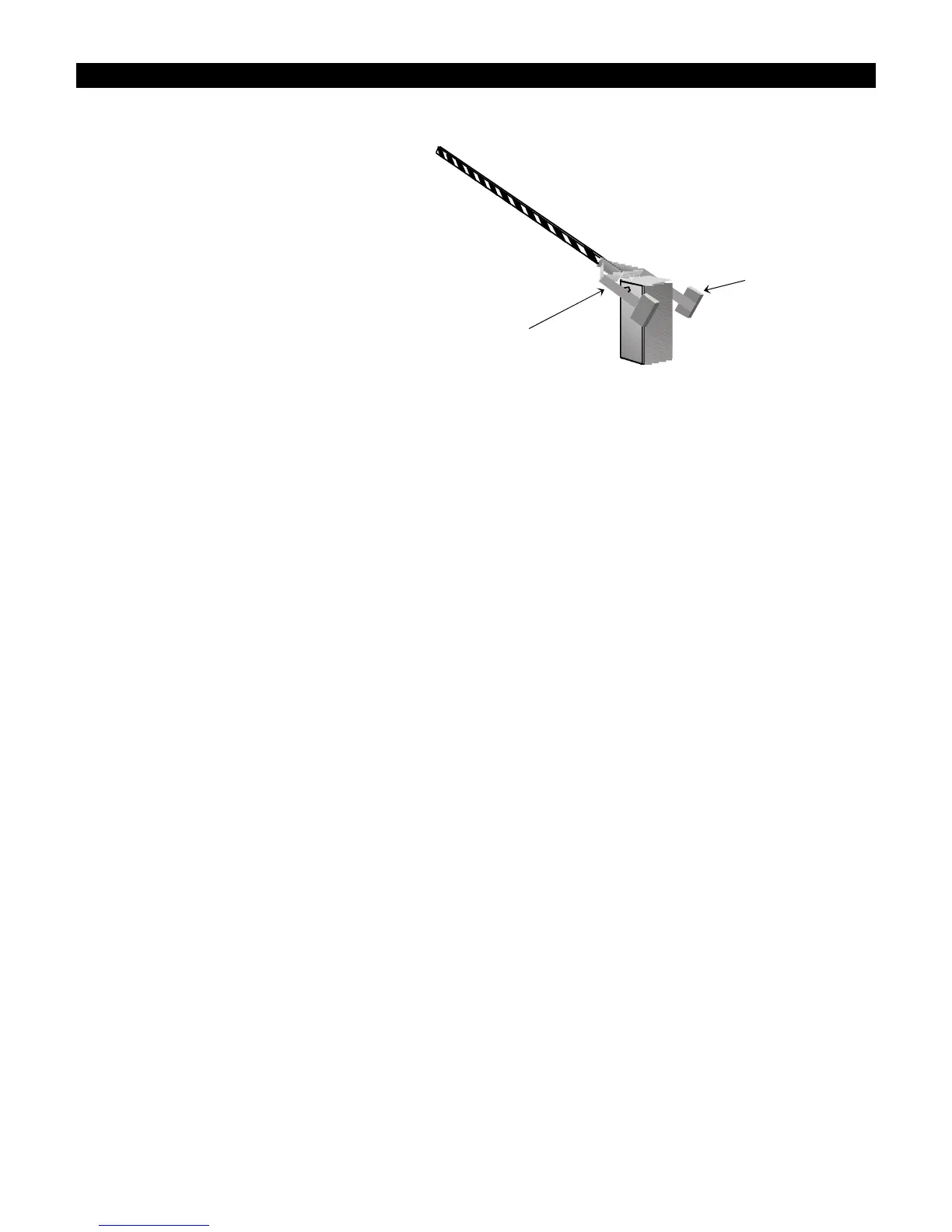

Counterweights
required for arms
over 18’
Heavy duty yoke
mount for arms
longer than 16’
