Installation and Maintenance Manual
1
Available Models and Features
HTG 320-3
Three seconds to open,
four seconds to close,
20 ft arms; aluminum or
aluminum/fiberglass
designs
HTG 320-6
Five seconds to open,
seven seconds to
close, 28 ft arms;
aluminum or
aluminum/fiberglass
designs
HTG 320-8
The heaviest duty of
the operators, (shown
at left) will handle arms
up to 36 feet long.
Eight seconds to open
and close.
Features
Horsepower
¾ ¾ ¾
Rate of Travel to
Open
3 seconds 5 seconds 8 seconds
UL Usage Class
1-4 1-4 1-4
Warranty
5 years 5 years 5 years
Soft Stop
Yes Yes Yes
Brake Valves
Yes Yes Yes
Soft Start
No No Yes
Arm Capacity
20 feet 28 feet 36 feet
Arm Options
1x6” wood single arms to 14’
2x5” tubular aluminum arms to 24’
2x5” aluminum/fiberglass arms to 36’

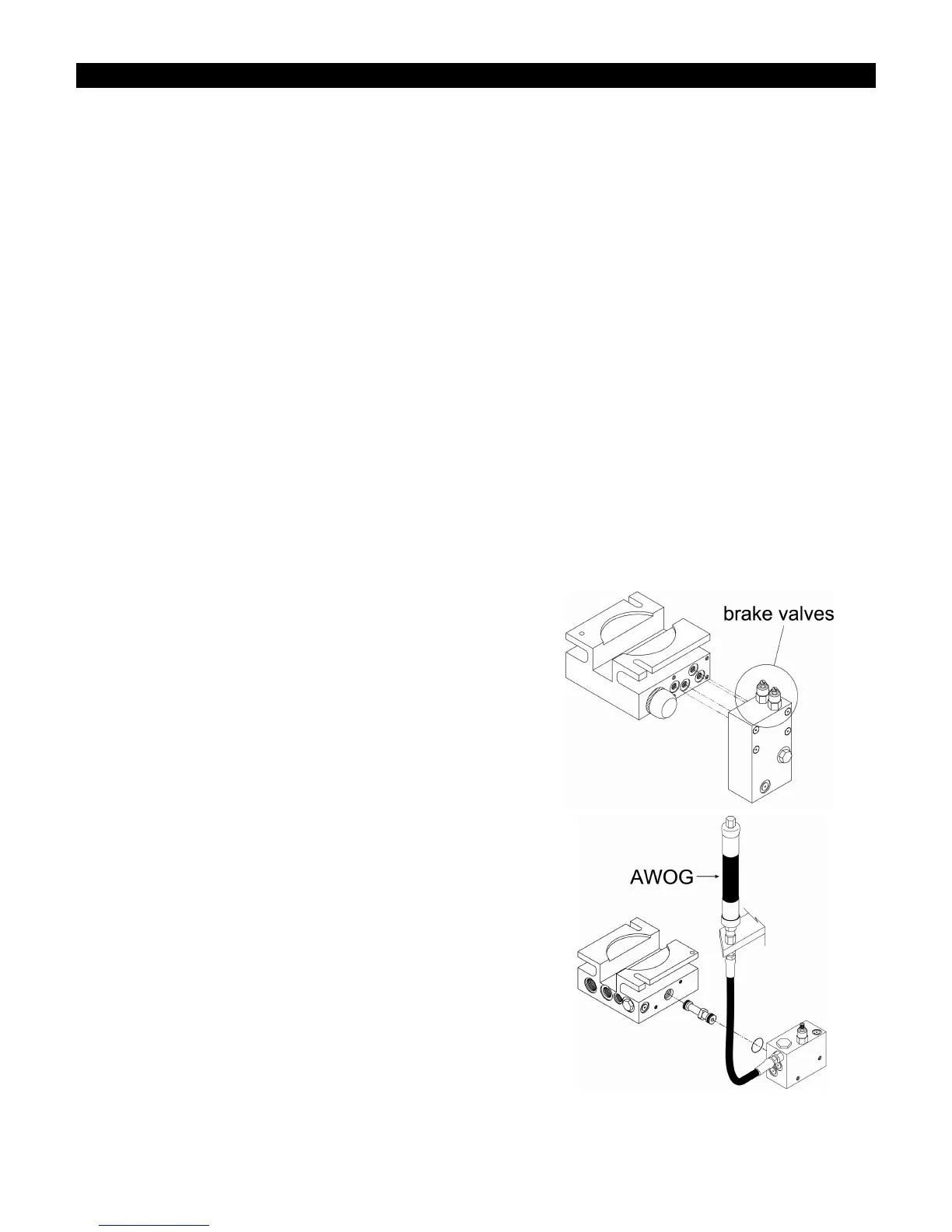

Stopping the Gate
All models employ a time delay Soft Stop system.
Additionally, brake valves (shown at right) are used to control
the smooth stopping of the gate. These valves are exclusive
to Hy-Security’s operators. They are independently adjustable
to allow the gate to stop predictably without banging.
Starting the Gate
When starting very heavy barrier arms, it is necessary to Soft
Start the load gently, in addition to stopping it smoothly. Hy-
Security accomplishes Soft Start with another exclusive
feature we call an AWOG, which diverts some of the start-up
hydraulic flow and thereby allows the gate to gently
accelerate. This is much like letting your foot slowly off a car
clutch – no lurching when the gate starts. The AWOG
improves the life and performance of a gate system and never
needs adjustment.
NOTE: This feature is standard on the HTG 320-8 only.
