2.1
SECTION 2 – OPERATING INSTRUCTIONS

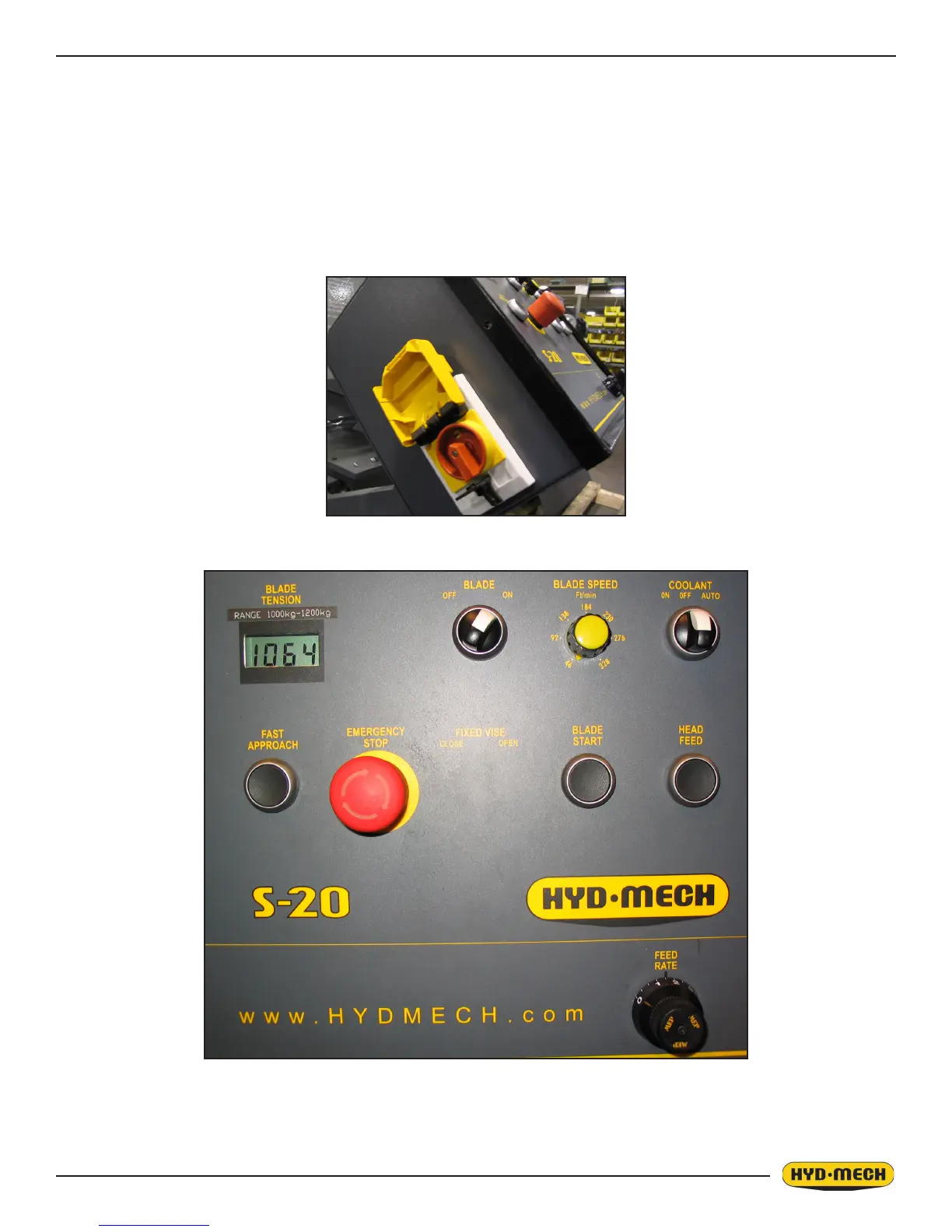

OPERATOR CONTROL PANEL
The operator control panel provides the operator with all the controls necessary to operate the saw after the cutting angle
has been set and the stock has been loaded and secured. All of the electrical functions and Feed Rate setting are oper-
ated from the control panel. For all the functions to work machine has to be powered up. The Main Disconnect switch,
which is located on the side of control box, has to be in ON position. Emergency Switch has to be released (turn Emer-
gency Knob clockwise to release). For the blade to operate the blade door has to be completely shut and blade tensioned
to minimum tension of 1000 kg.
Main Disconnect switch is located on the side on the machine control box.
