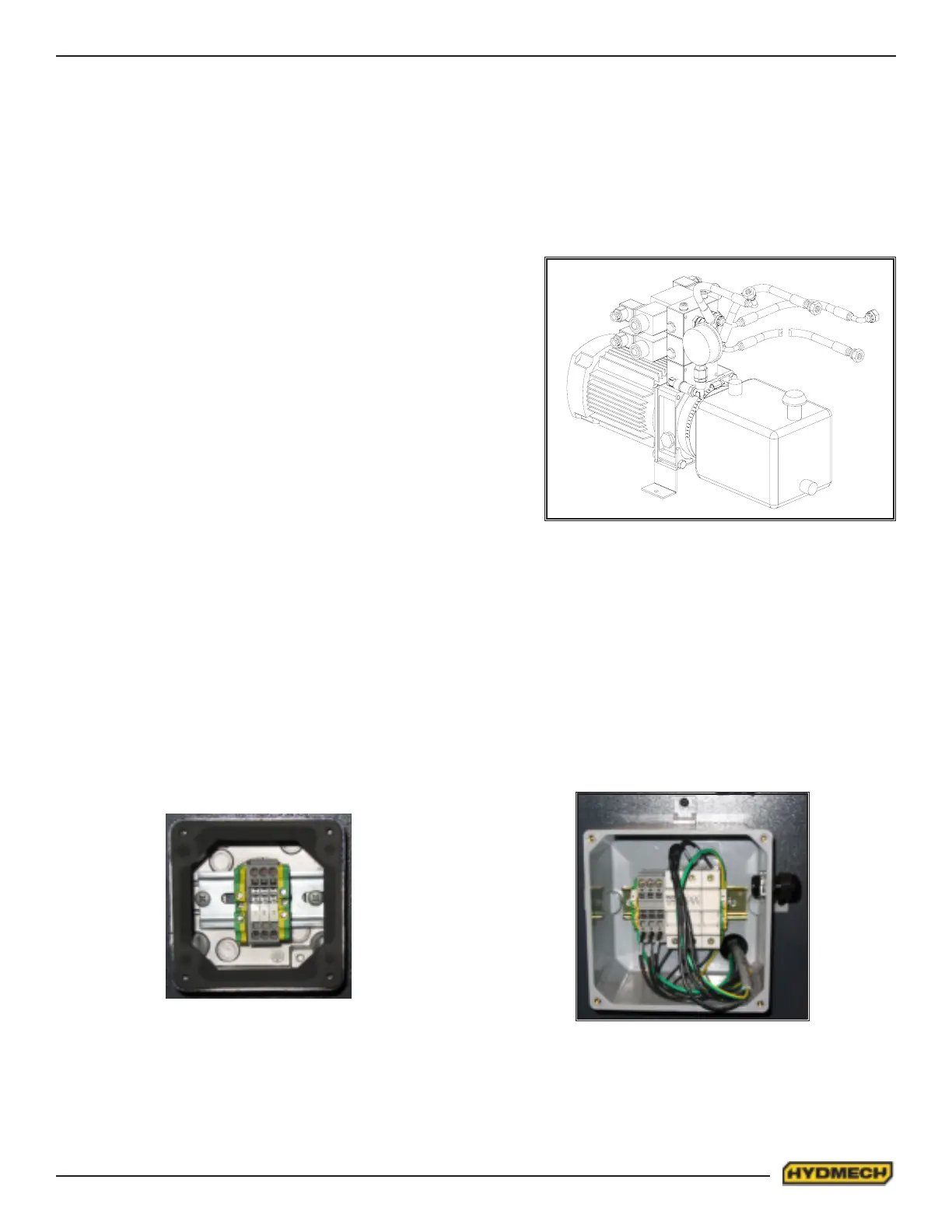

1.3
WIRING CONNECTIONS
After the machine is leveled and anchored the necessary power hook-up needs to be performed.
Check that there is no sign of shipping damage to the electrical conduits, cords or hydraulic hoses.
As supplied, the S20P is built to run on three phase AC Voltage, as indicated on the machine serial plate and voltage
label. Machine voltage is customer specic and should be indicated while ordering the machine. If machine voltage does
not match available power source contact factory.
Power connection to the machine is made in the junction box, located on the back side of the machine. The power cable
can be routed through the supplied hole in the junction box, and connections made to L1, L2, L3, and ground terminals.
Proper strain relief should be used on the incoming power cable.
CUTTING FLUID
The S20P uses a pump and reservoir to circulate the necessary cutting uid to the blade for maximum blade life. Your saw
blade supplier will be able to provide information to the cutting uid products that are available for your needs.
No cutting uid (coolant) is supplied with the machine. There are two types of coolant available:
- Oil based; dilute 1:10 ratio (one part concentrated coolant to 10 parts water)
- Synthetic; dilute as recommended by manufacturer.
HYDRAULIC OIL
The S20P is supplied with Texaco Rando HD46 hydraulic oil. Substi-
tutes should be of the same viscosity hydraulic oil.
240V & 480V Junction Box
208V & 600V Junction Box
