5.1
SECTION 5 - HYDRAULIC
The S20P hydraulic system does not require any special work on a new machine before its start up. The hydraulic tank is
lled with Texaco Rando HD46 hydraulic oil and all machine
functions have been tested at the factory to ensure proper
operation upon initial start up.

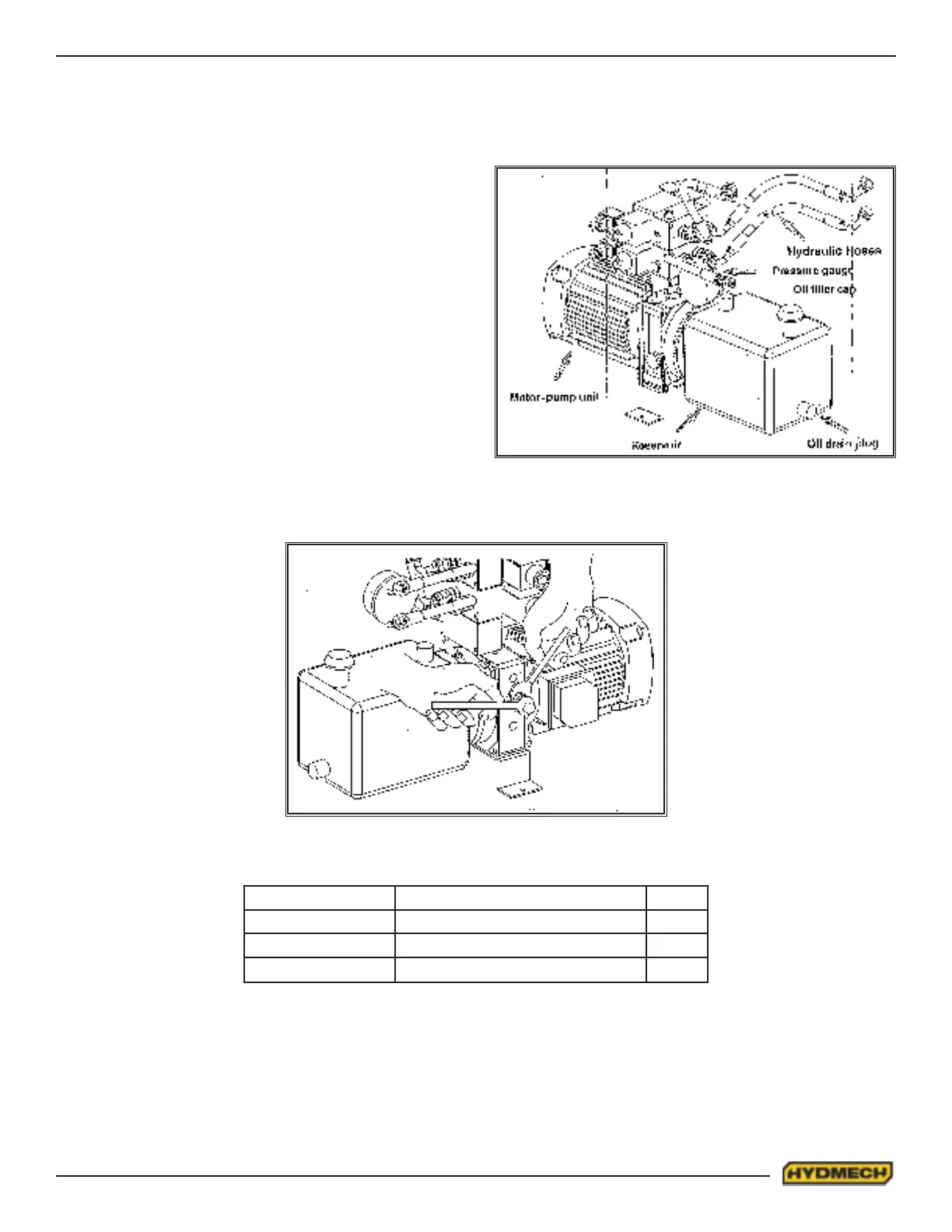

The oil level in the hydraulic power pack should be main-
tained, and if necessary, topped up. The usable volume of
the oil reservoir is 0.66 US gallons (2.5 litres).
PART NUMBER DESCRIPTION QTY
806785 Head Cylinder 1
806783 Vise Cylinder 1
816303 Bundling Cylinder (Option) 0 (1)
CYLINDER LIST
The operating pressure can be adjusted by the adjusting valve shown below. Release the hex nut on the relief valve, and
using an allen key, increase (clockwise) or reduce (counter clockwise) the pressure reading on the pressure gauge. Tight-
en the hex nut once adjustment is complete.
FOR HYDRAULIC SCHEMATICS AND PLUMBING DIAGRAMS
SEE PDF ON ATTACHED CD.
