3.10
LUBRICATION
The S20P was designed to minimize the maintenance requirements. Moving assemblies and contact faces need lubrica-
tion on a regular schedule whether they are in heavy use or not. The lubrication requirements of the S20P are primarily
the saw pivot points which are equipped with grease ttings, and metal to metal surfaces that require lubrication to pre-
vent wear and seizure.
It is recommended to use LPS ThermaPex Hi-Load bearing Grease manufactured by LPS Laboratories or equivalent, for
lubrication of the shuttle assembly. For other points of lubrication general purpose grease is sufcient.

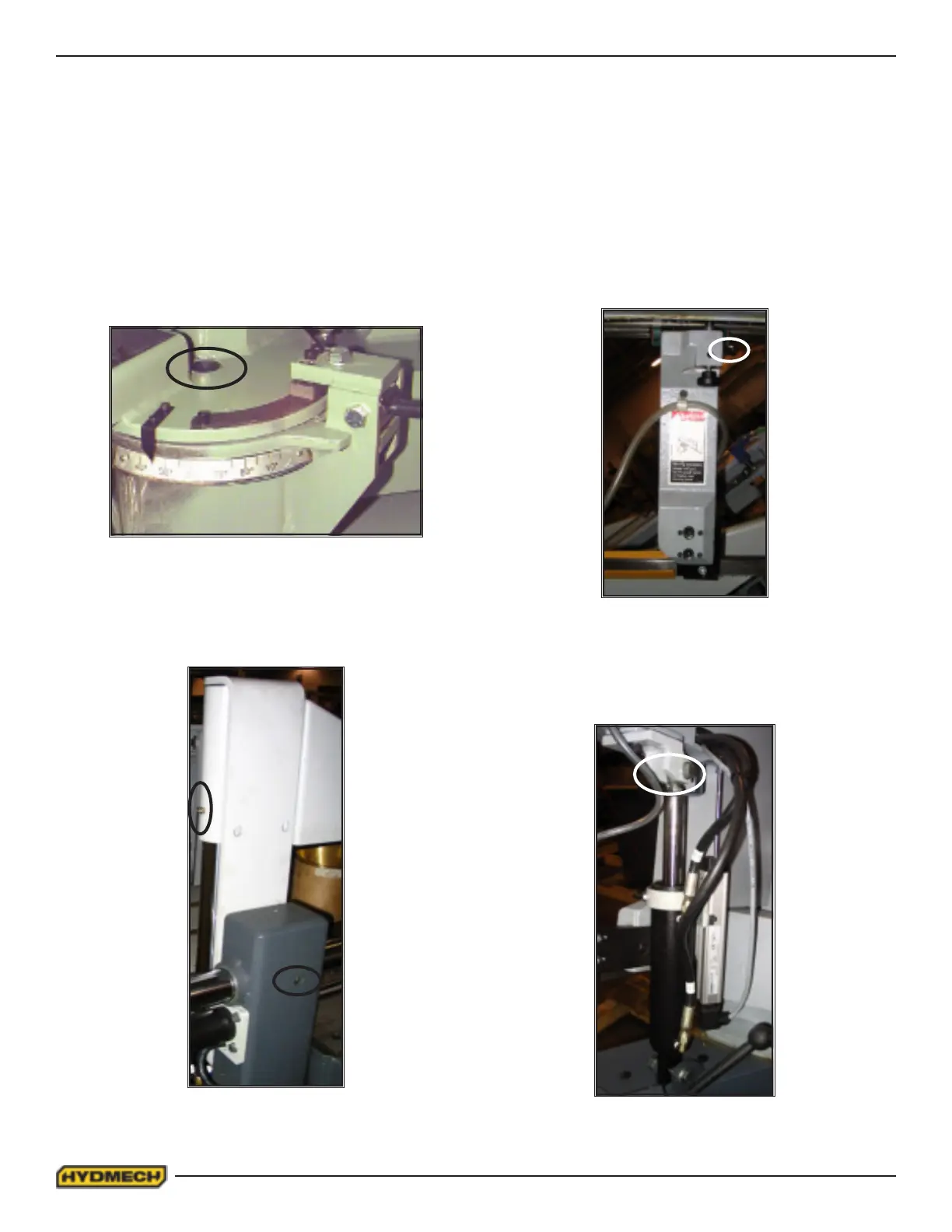

The lubricant should be applied as frequently as required. Main lubrication points are indicated on the following pictures.
Runner Block
Movable Guide Arm
Swivel Pivot
Head Cylinder Rod End
Vise/Bundling
To Next Page
